Transmission Range Sensor Connector - C167

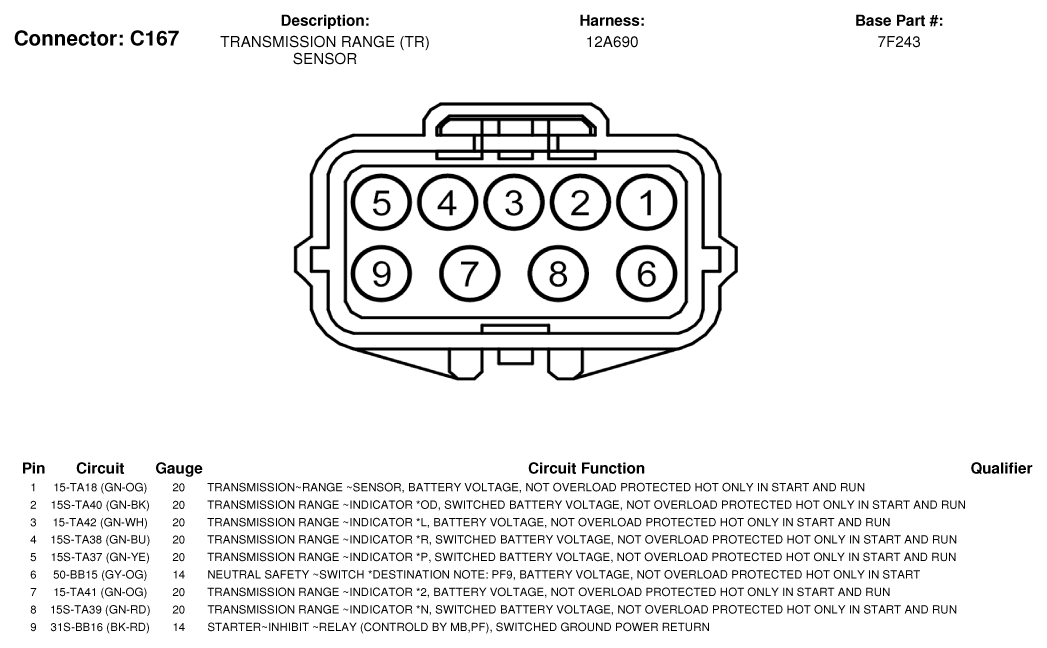

Fig 1: Transmission Range Sensor Connector End View (C167)
G07337253Courtesy of FORD MOTOR CO.
