Driver Side Impact Sensor Connector - C3209

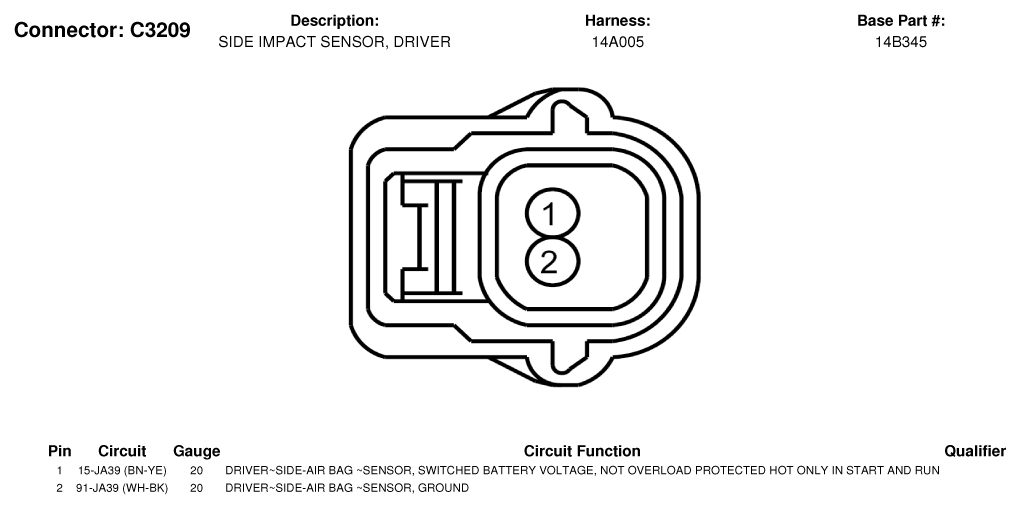

Fig 1: Driver Side Impact Sensor Connector End View (C3209)
G07337433Courtesy of FORD MOTOR CO.
