Driver Seat Position Sensor Connector - C3207

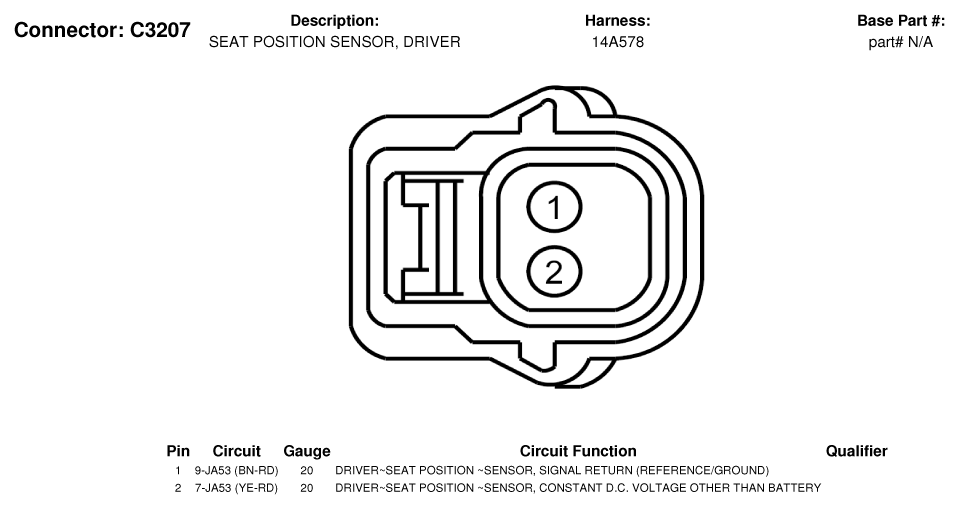

Fig 1: Driver Seat Position Sensor Connector End View (C3207)
G07337432Courtesy of FORD MOTOR CO.
