A/C Compressor Cycling Switch Connector - C1081
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
A/C Compressor Cycling Switch Connector - C1081

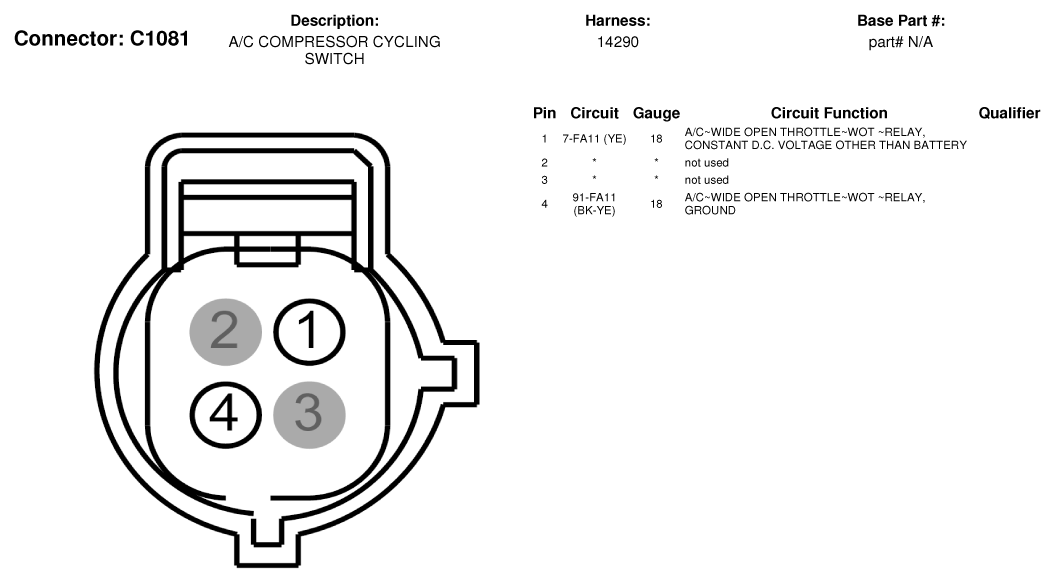

Fig 1: A/C Compressor Cycling Switch Connector End View (C1081)
Courtesy of FORD MOTOR CO.
