Multifunction Control Modules: Notes

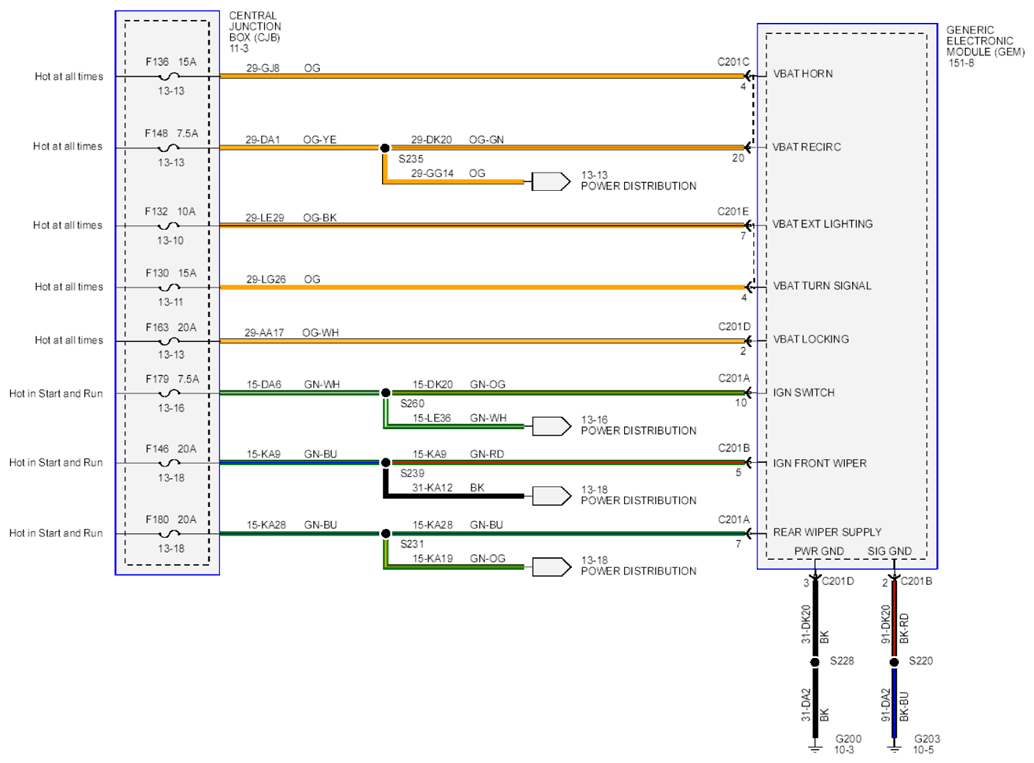

Fig 1: Multifunction Control Modules Circuit Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
