Test HV: Electric Cooling Fan

PINPOINT TEST HV: ELECTRIC COOLING FAN

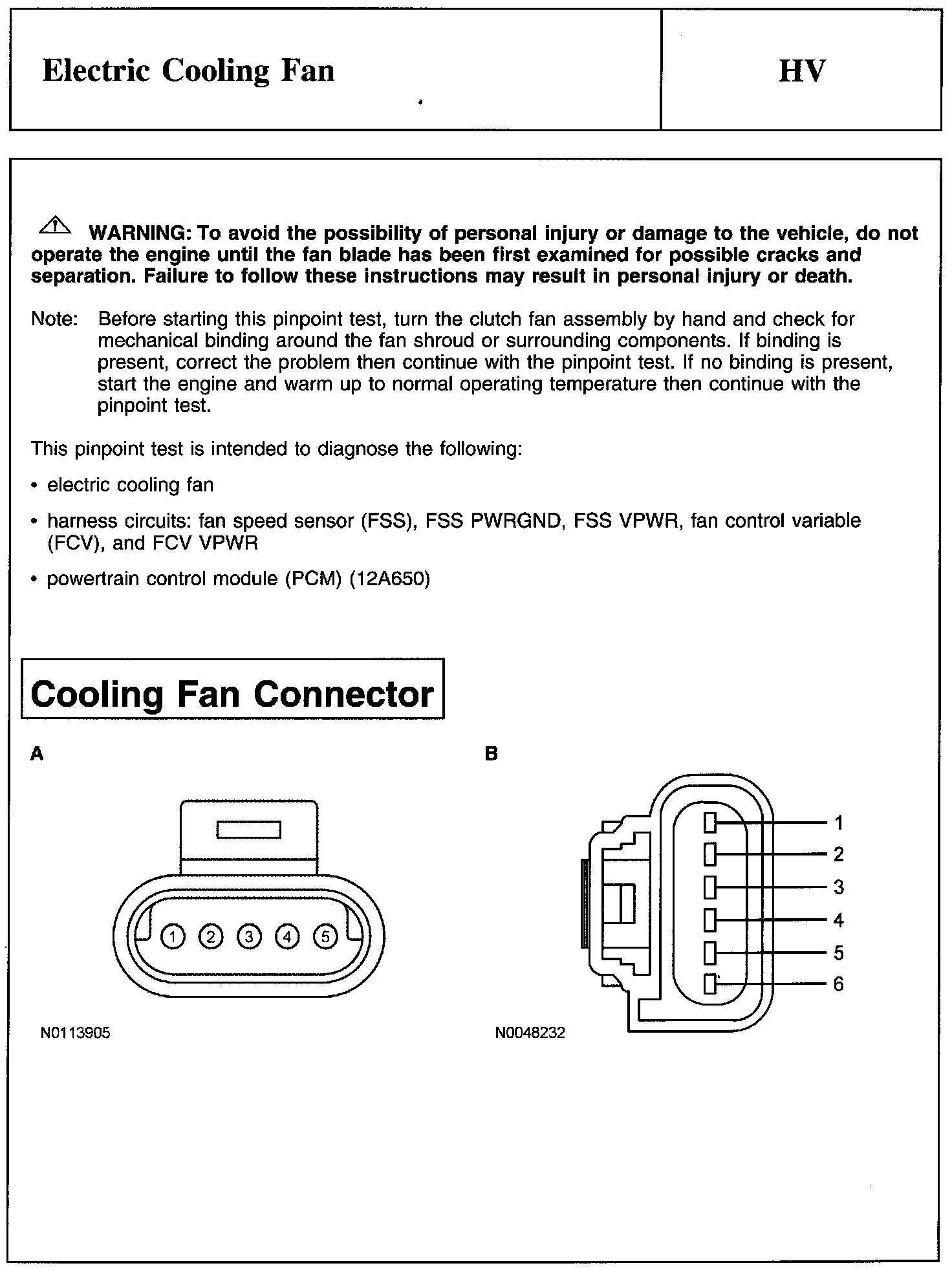

Warning, Note And Cooling Fan Connector:

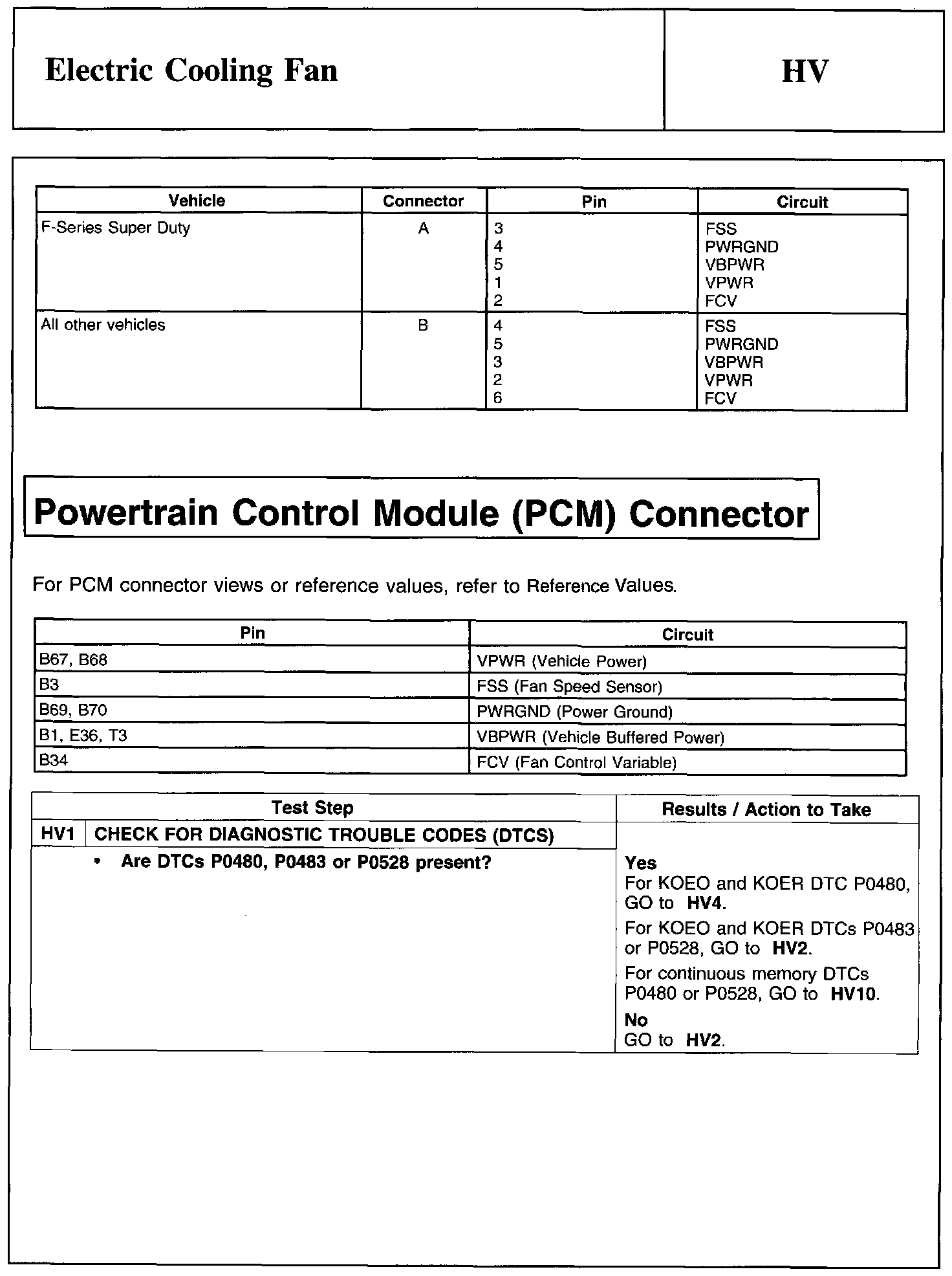

HV1:

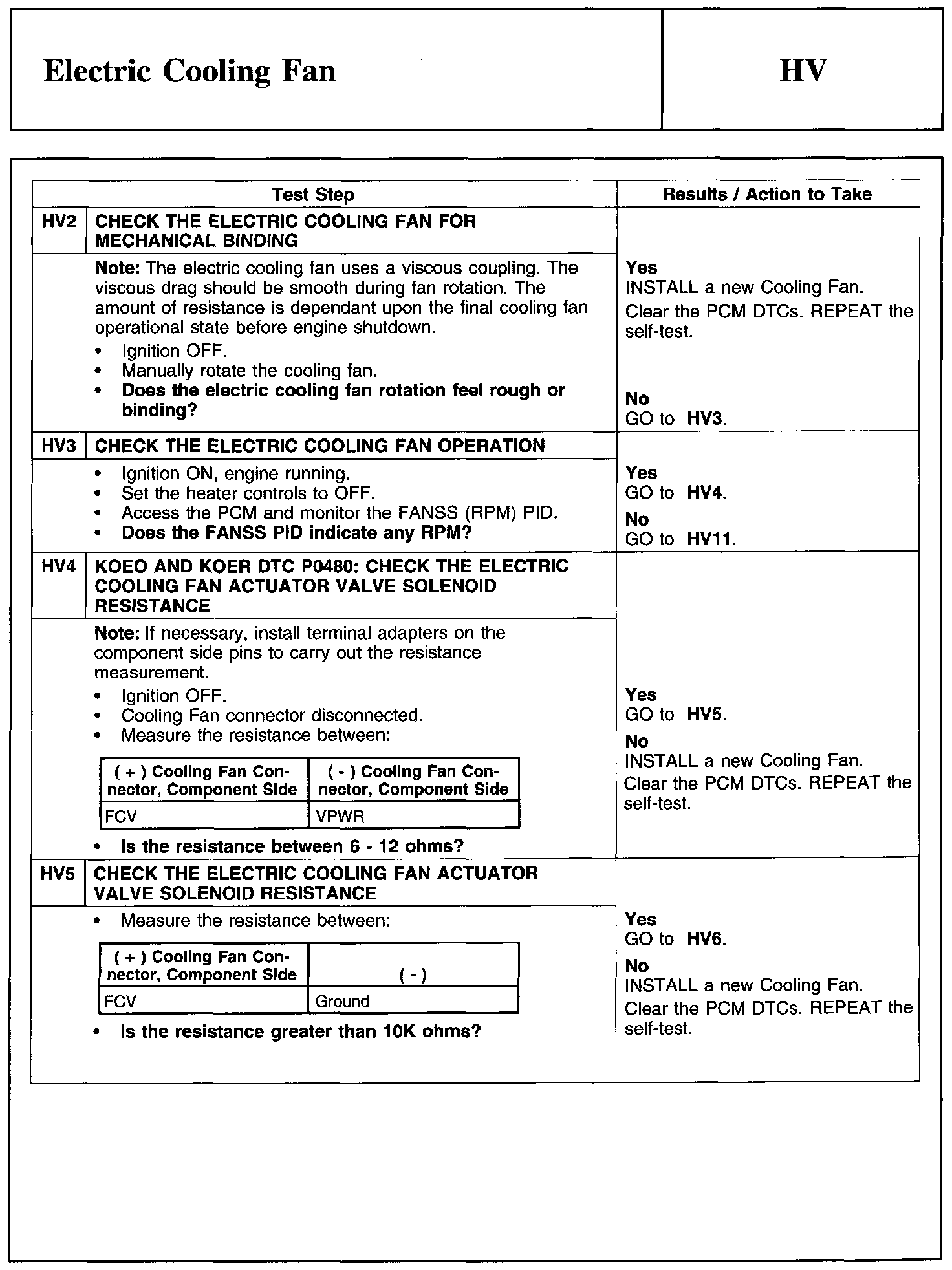

HV2-HV5:

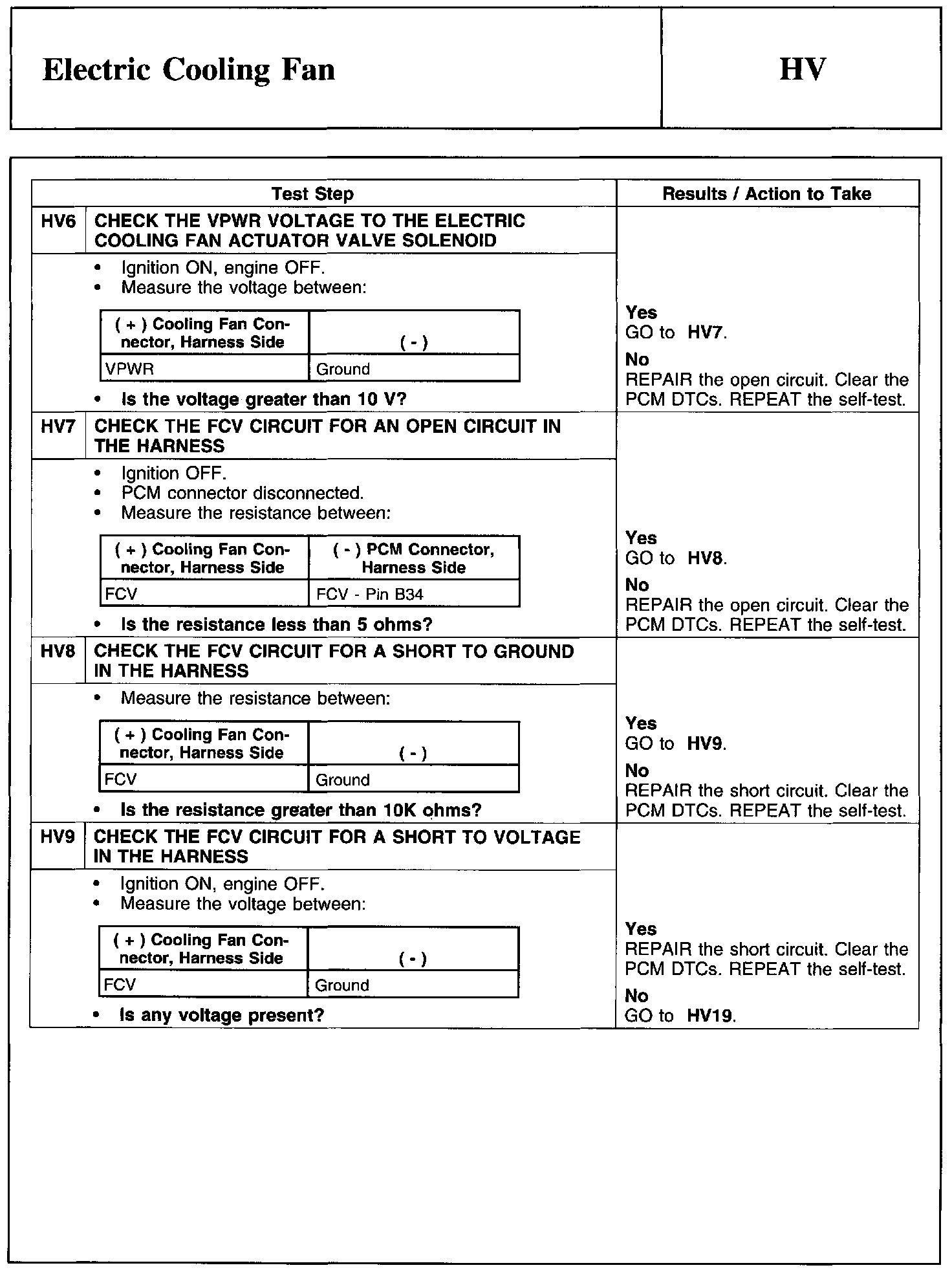

HV6-HV9:

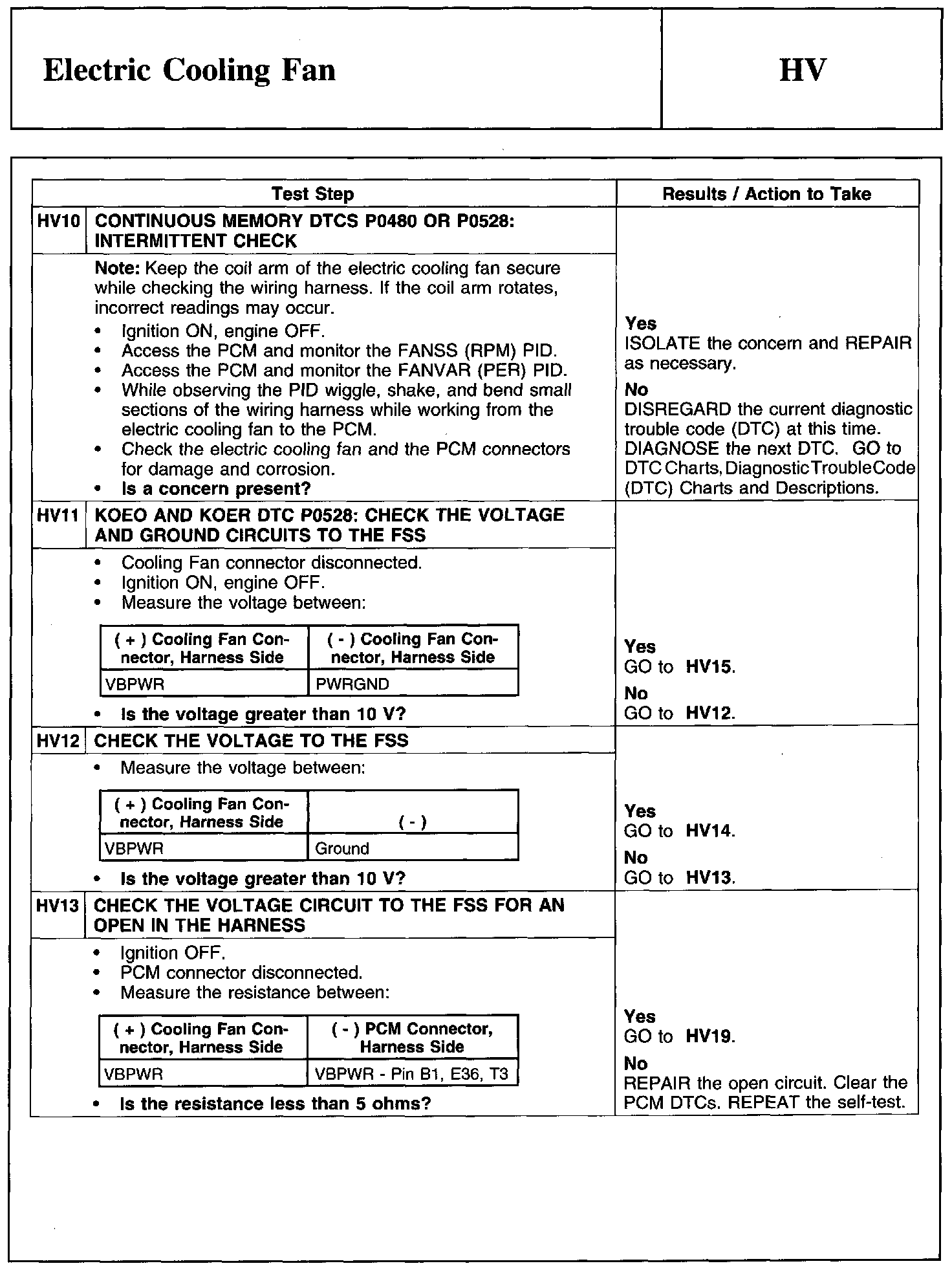

HV10-HV13:

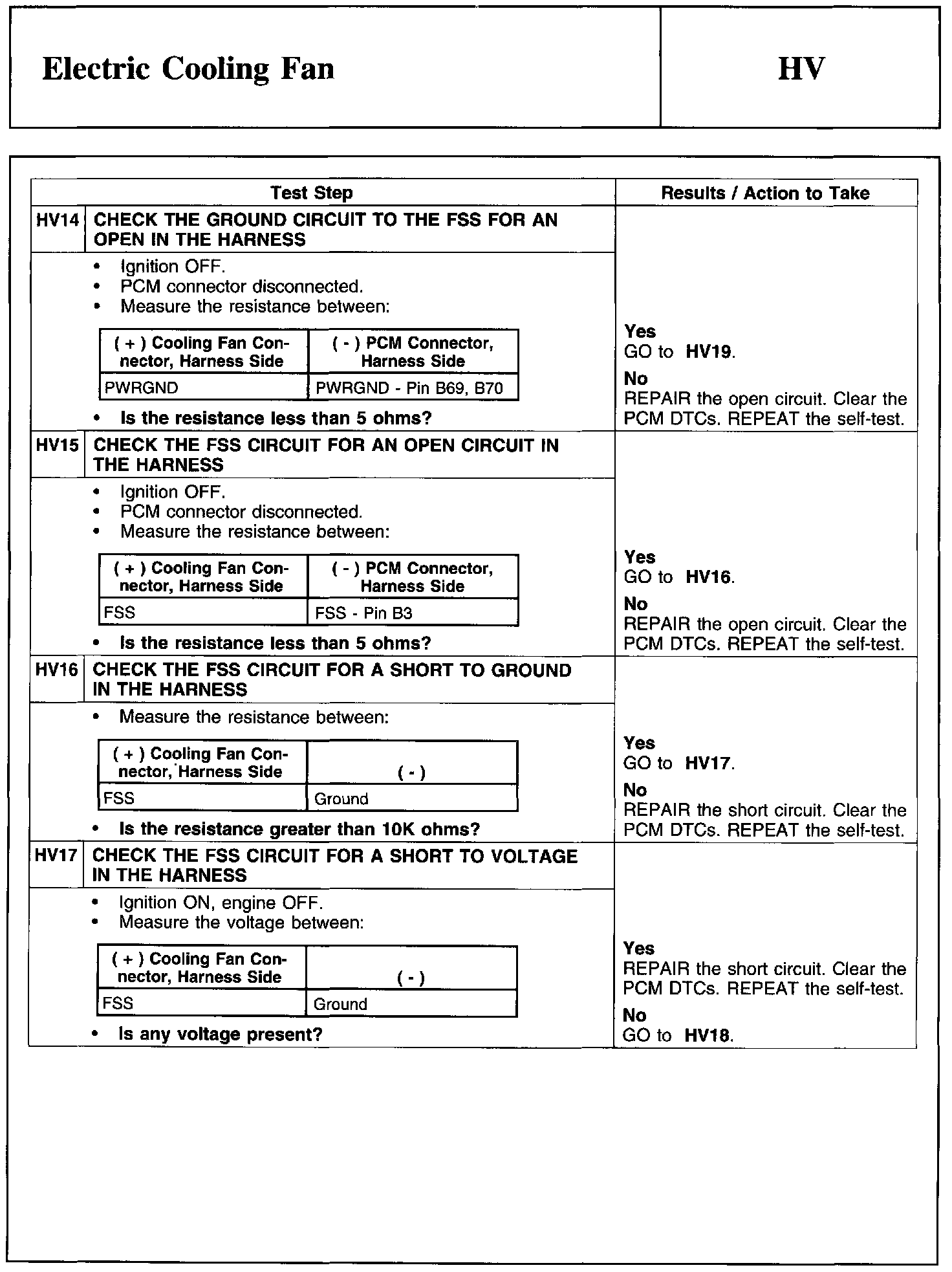

HV14-HV17:

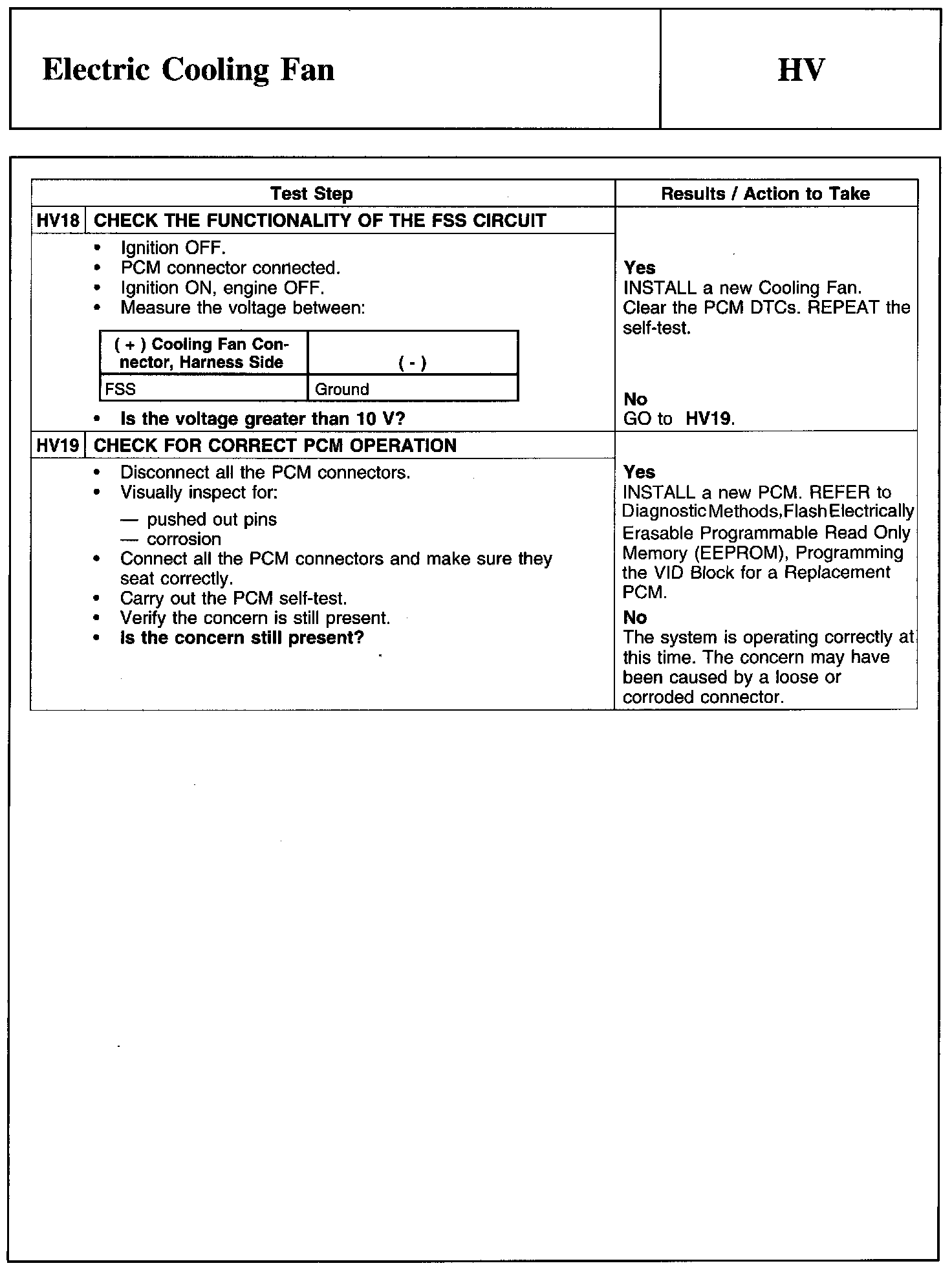

HV18-HV19:
