License Plate Lamp: Service and Repair

License Plate Lamp









Removal and Installation

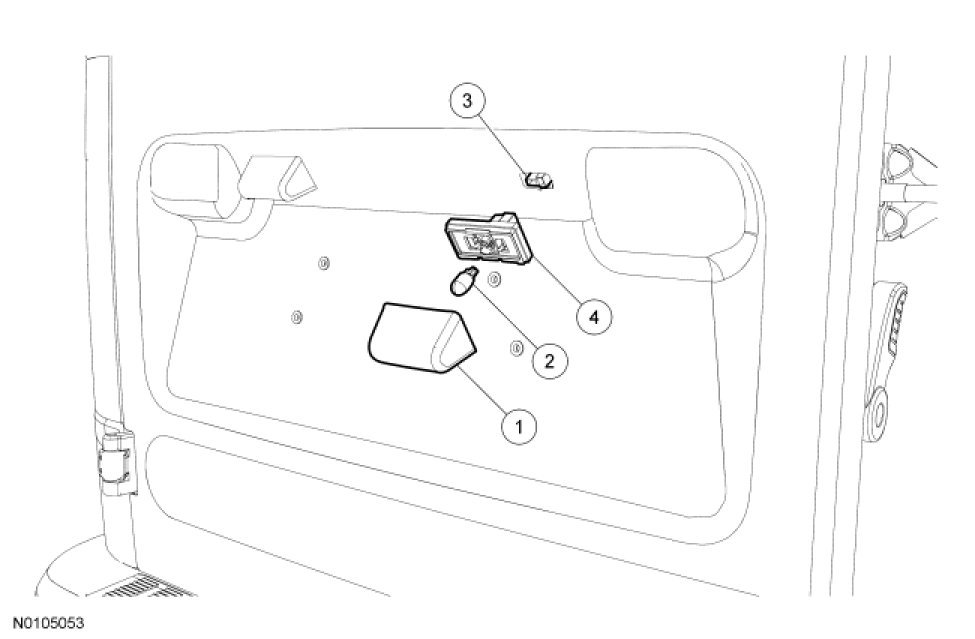

NOTE: The license plate lamp lens and bulb can be removed without removing the assembly.

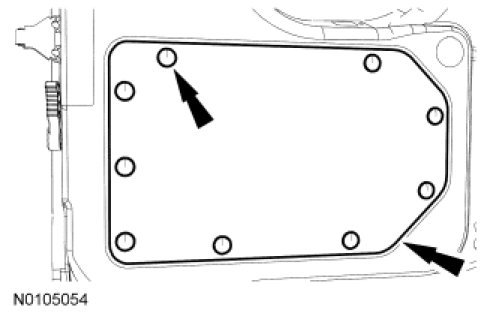

1. Remove the pin-type retainers and the rear door trim panel.





2. Disconnect the license plate lamp electrical connector.

3. Release the tabs and remove the license plate lamp from the rear door.

4. To install, reverse the removal procedure.
