Dome Lamp: Service and Repair

Interior Lamp









Removal and Installation

NOTICE: When prying on the front interior lamp, a non-marring tool must be used or damage to the front interior lamp or overhead console can occur.

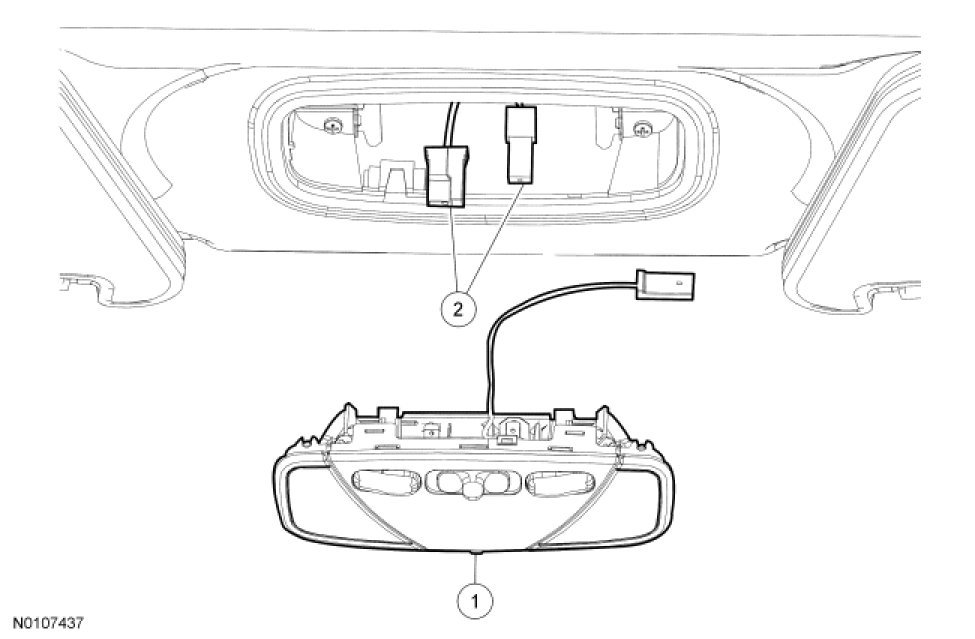

1. With a non-marring tool (such as a plastic scraper), pry the front interior lamp downward to release it from the overhead console.
- Disconnect the electrical connectors.

2. To install, reverse the removal procedure.
