Wheel Speed Sensor - Front

Wheel Speed Sensor - Front

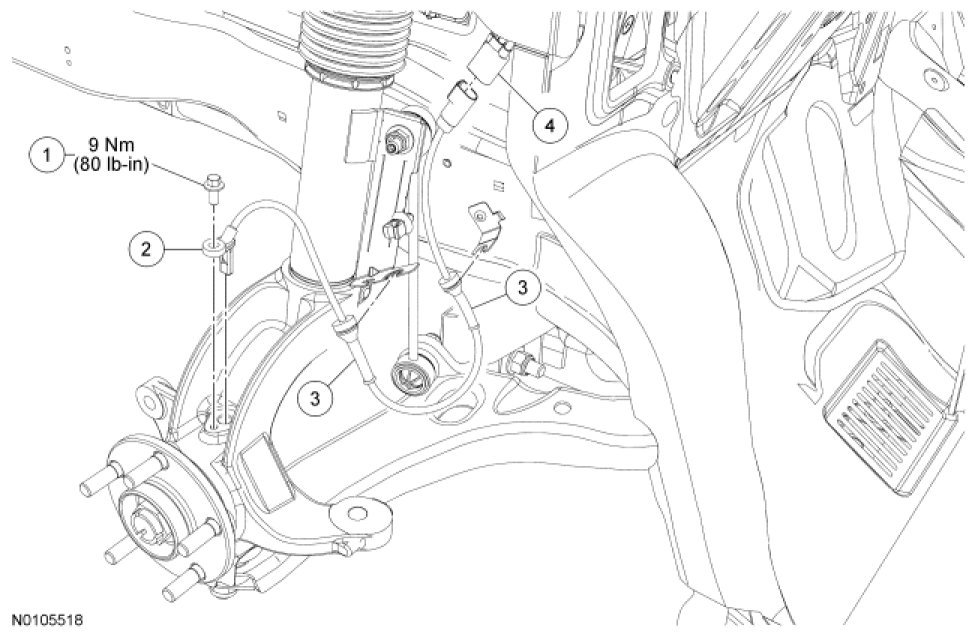

Removal and Installation

1. Remove the wheel and tire. For additional information, refer to Wheels and Tires Removal and Replacement.

2. Remove the wheel speed sensor bolt.
- To install, tighten to 9 Nm (80 lb-in).

3. Disconnect the wheel speed sensor electrical connector.
- Remove the sensor by detaching the pin-type retainer and pulling the sensor grommets out of the clips.

4. To install, reverse the removal procedure.
