Generic Electronic Module (GEM)
Generic Electronic Module (GEM)
DTC Charts

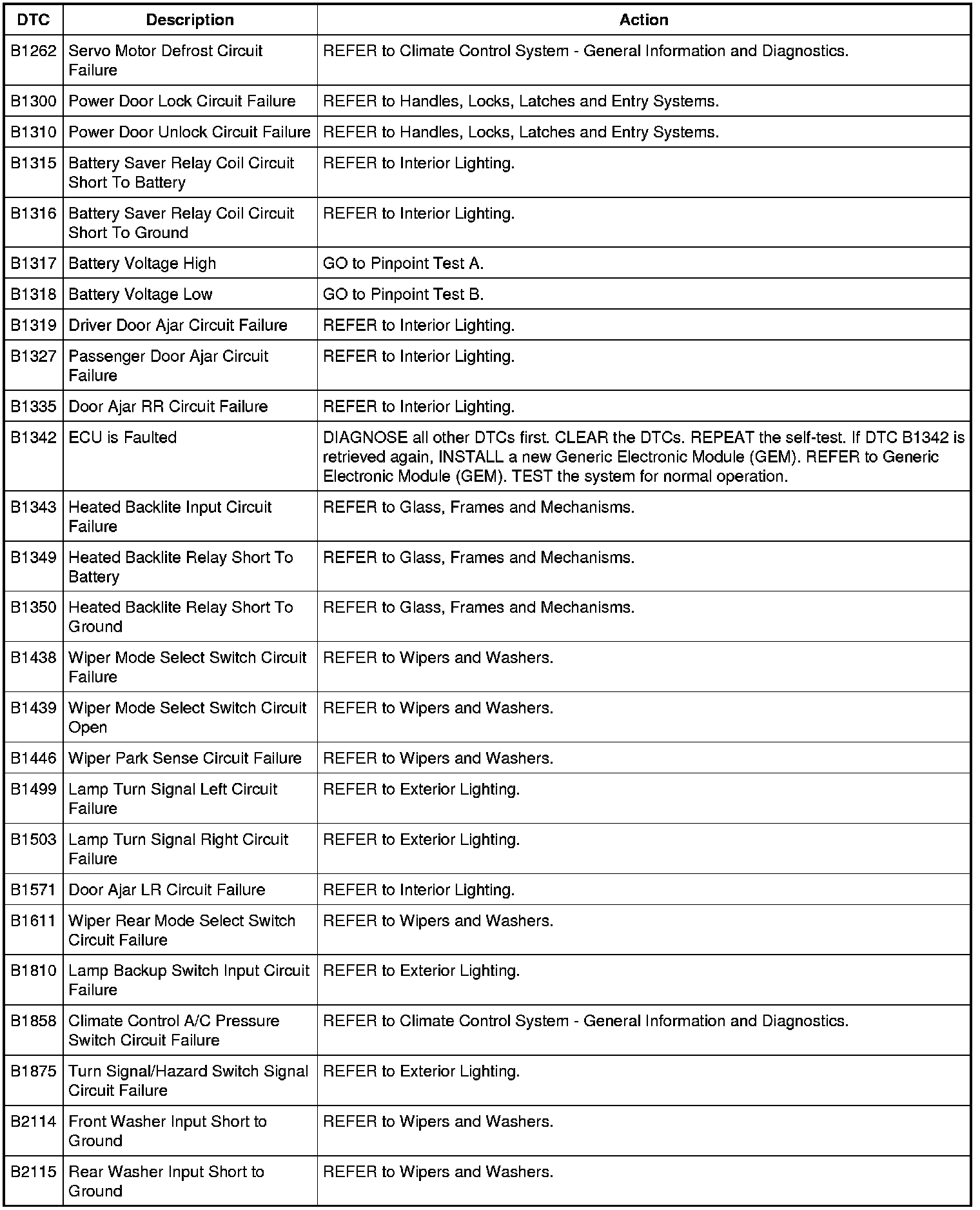

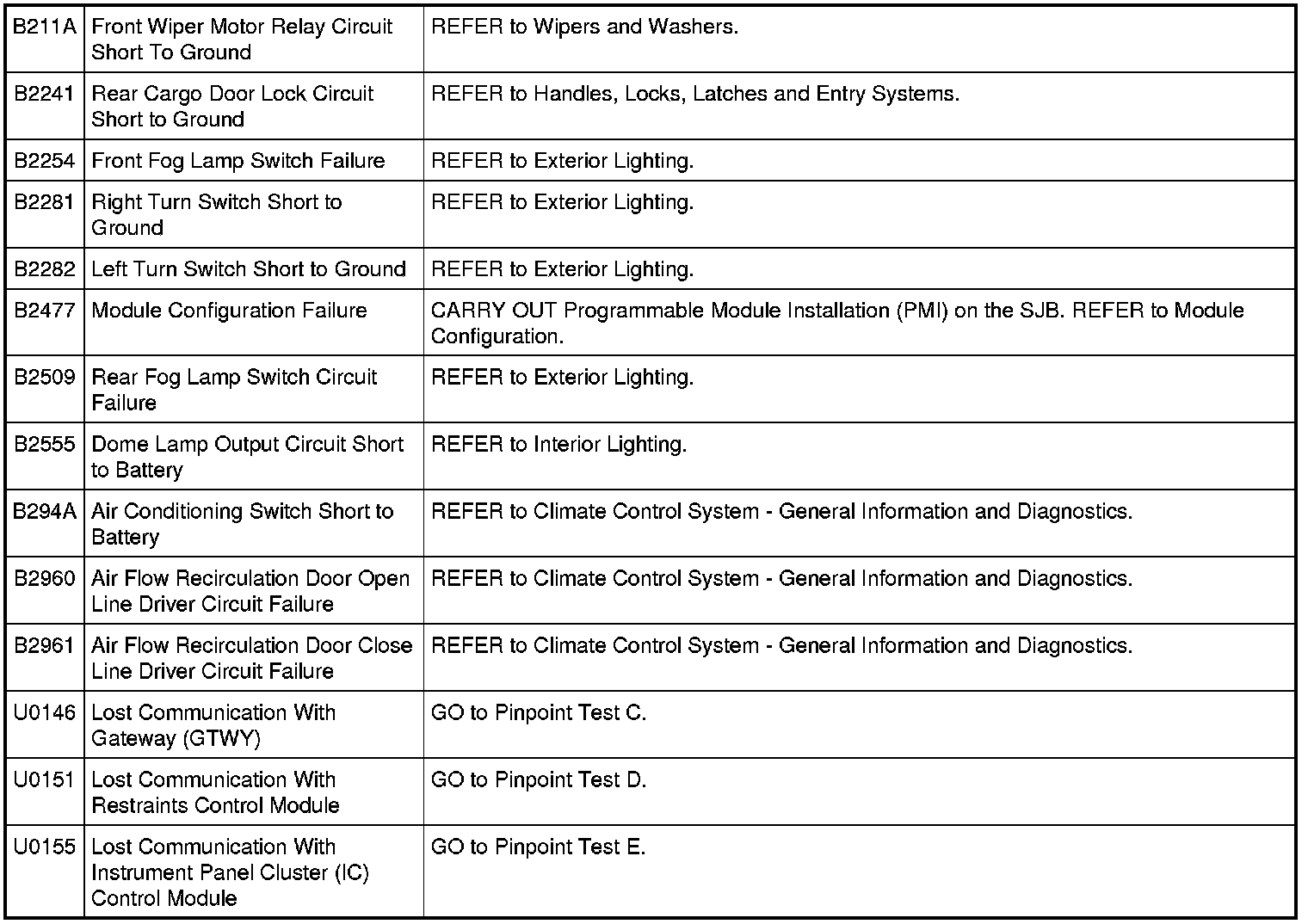

Generic Electronic Module (GEM) DTC Chart
