Power Windows: Notes

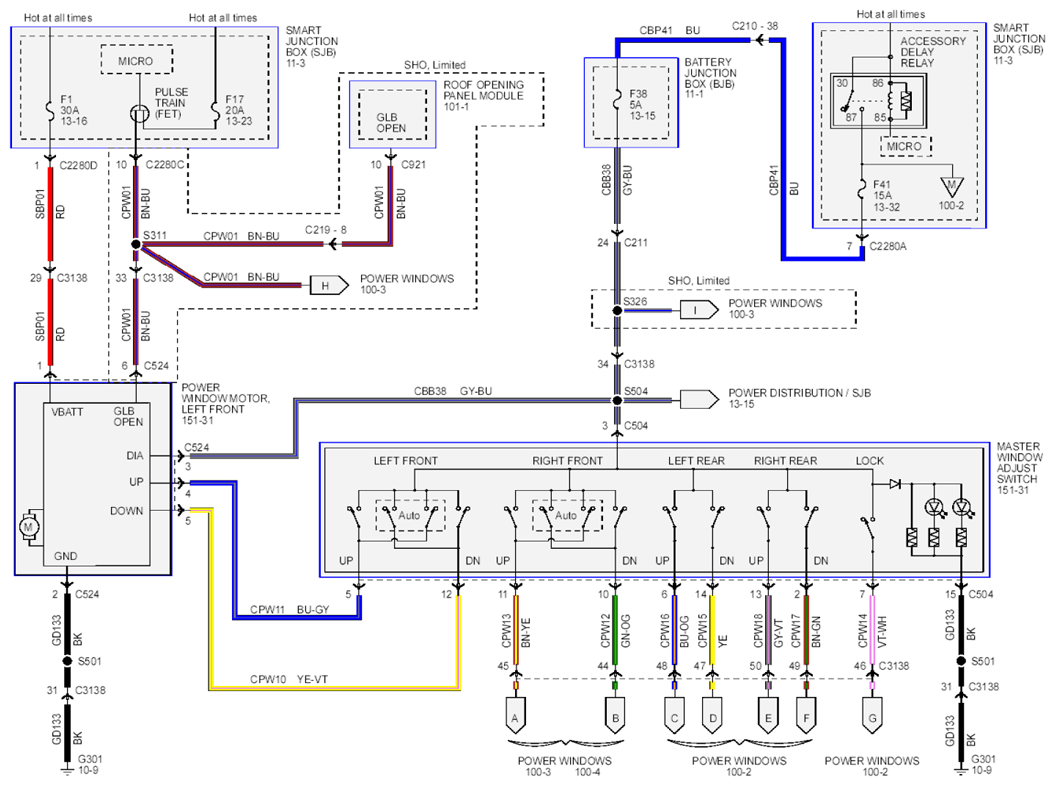

Fig 1: Power Windows Circuit Diagram (1 Of 3)
G07882283Courtesy of FORD MOTOR CO.

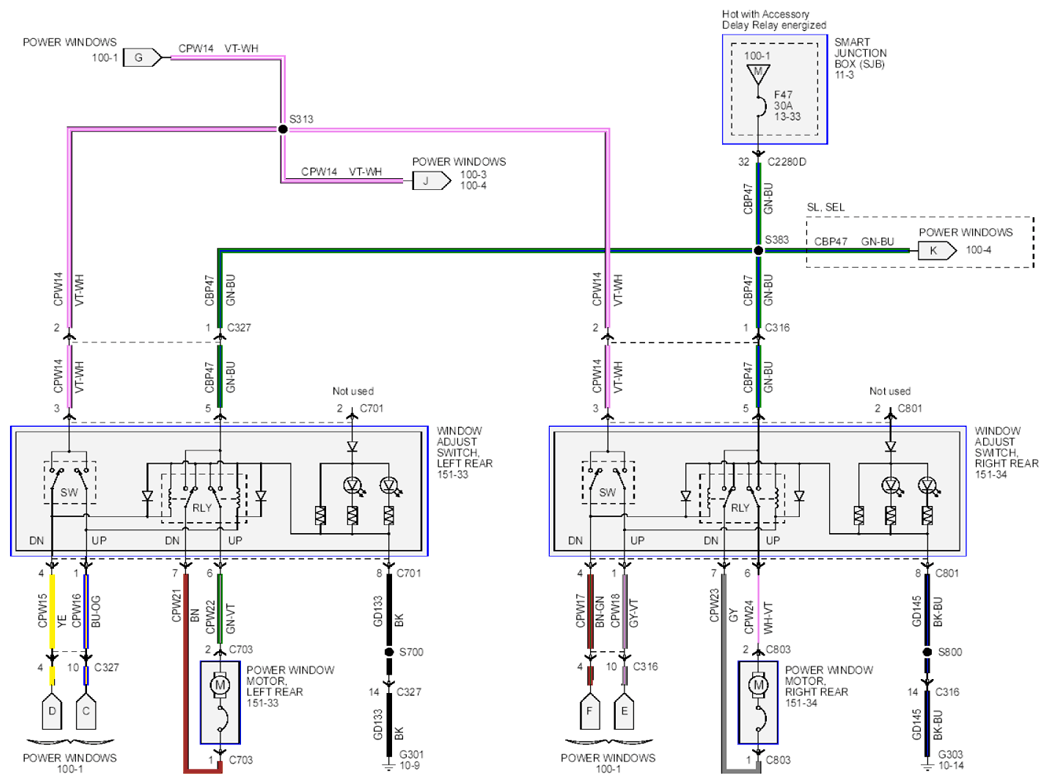

Fig 2: Power Windows Circuit Diagram (2 Of 3)
G07882284Courtesy of FORD MOTOR CO.

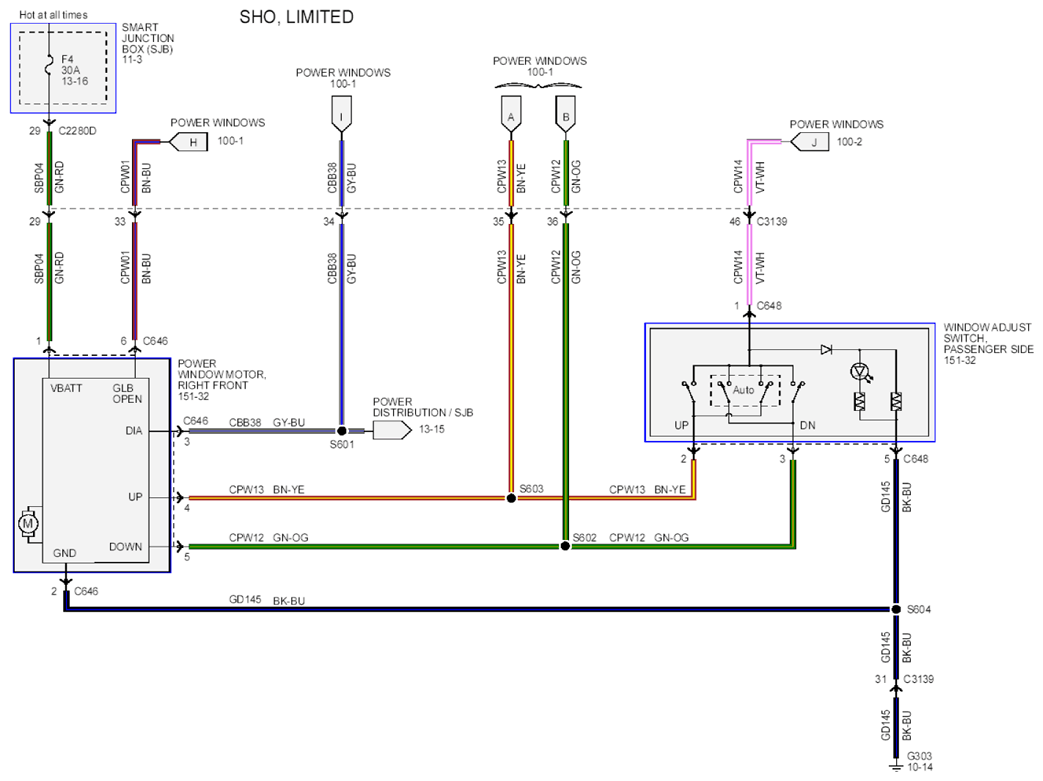

Fig 3: Power Windows Circuit Diagram (3 Of 3)
G07882285Courtesy of FORD MOTOR CO.
