Sunshade

Sunshade

Removal and Installation

1. Remove the parcel shelf. For additional information, refer to Parcel Shelf Service and Repair.

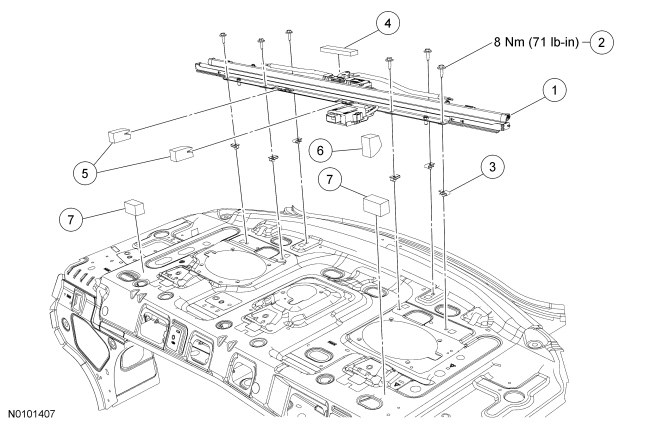

2. Remove the sunshade assembly retainer bolts.
- To install, tighten to 8 Nm (71 lb-in).

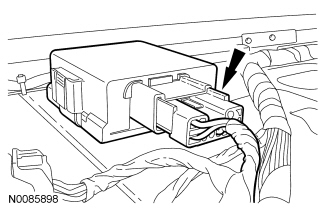

3. Disconnect the sunshade module electrical connector.

4. Remove the sunshade assembly.

5. To install, reverse the removal procedure.
