Test DU: Intake Air Temperature 2 (IAT2) Sensor

PINPOINT TEST DU: INTAKE AIR TEMPERATURE 2 (IAT2) SENSOR

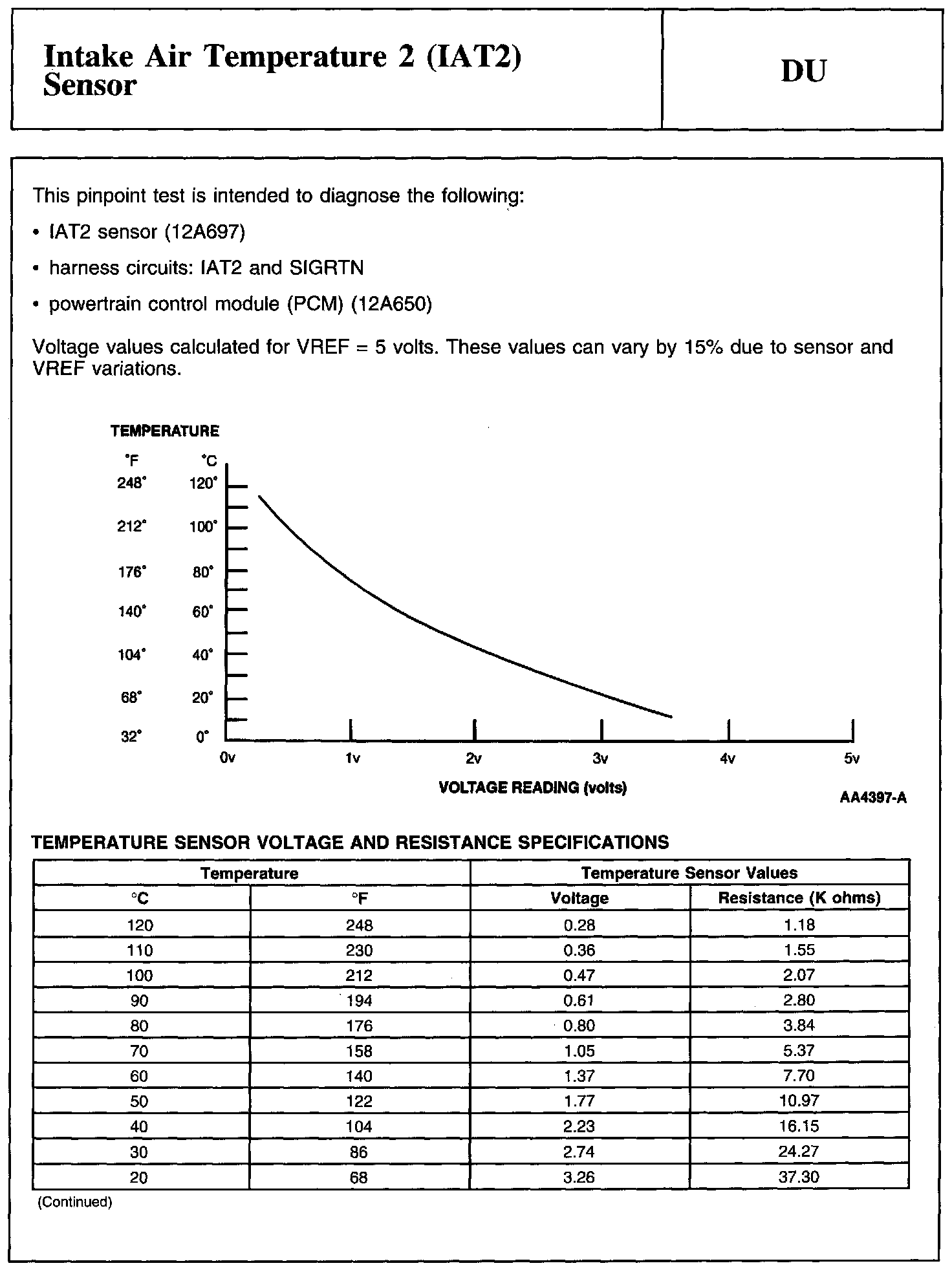

Temperature Sensor Voltage And Resistance Specifications:

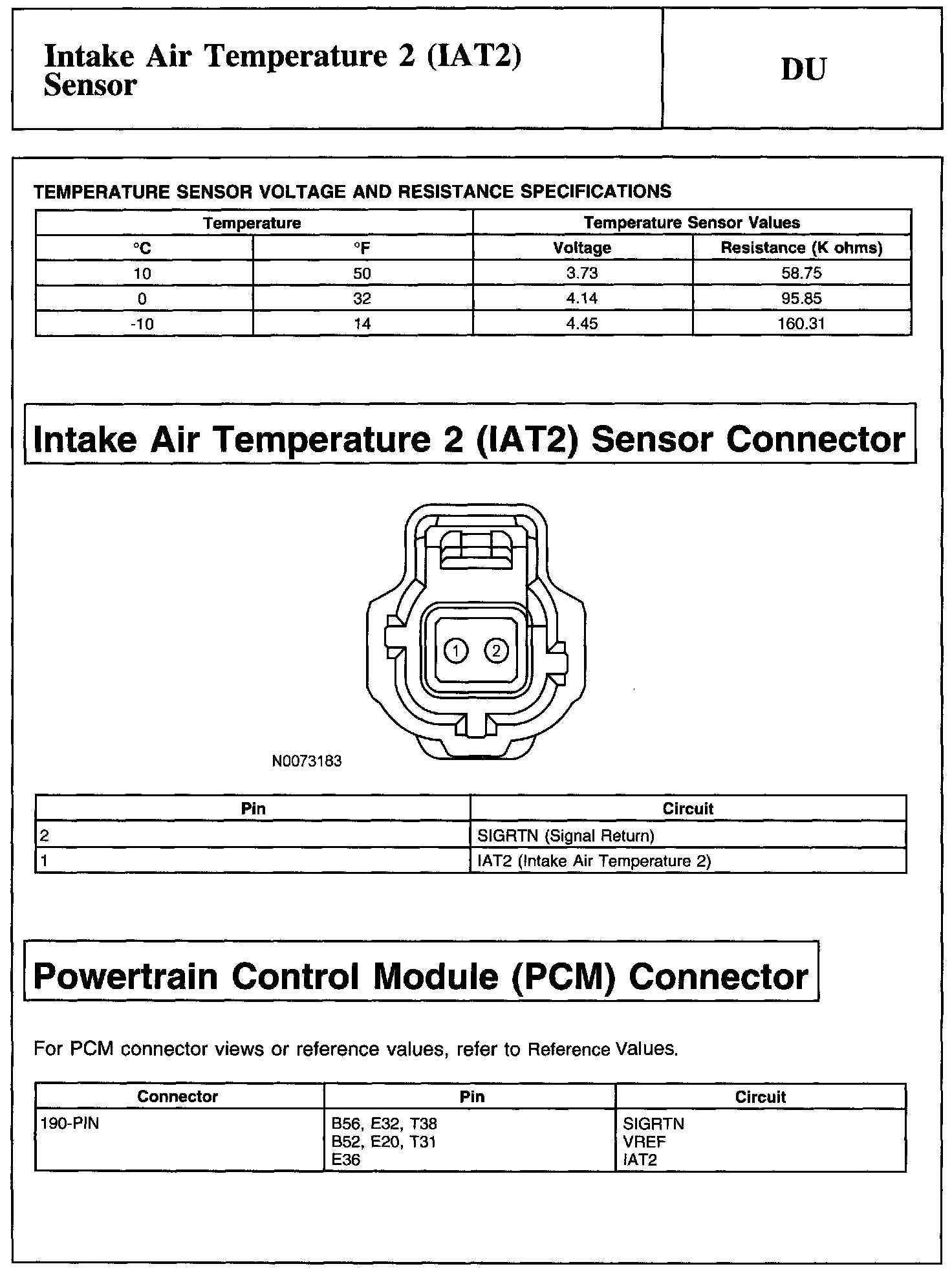

Temperature Sensor Voltage And Resistance Specifications, Intake Air Temperature 2 (IAT2) Sensor Connector And Powertrain Control Module (PCM) Connector:

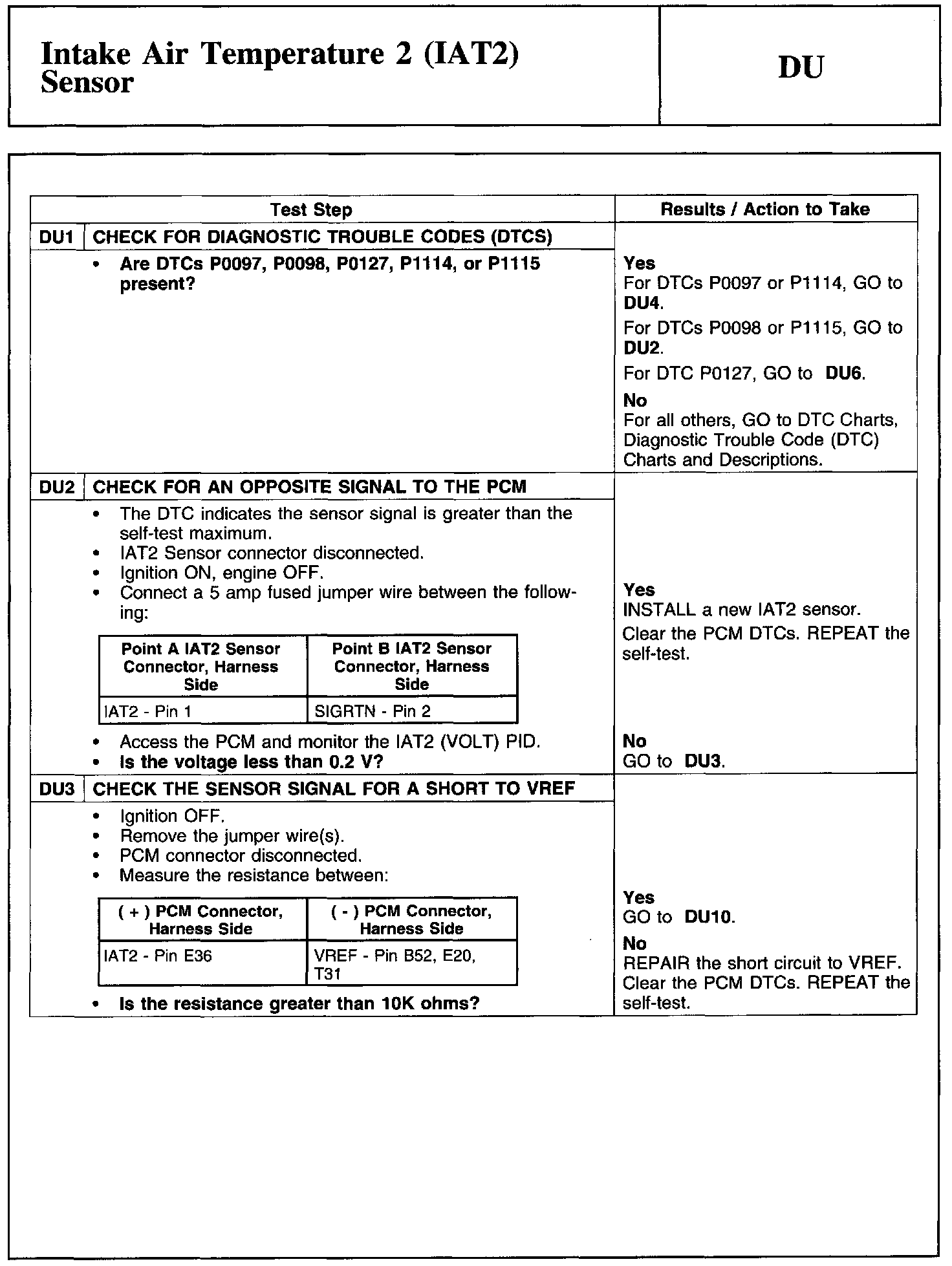

DU1-DU3:

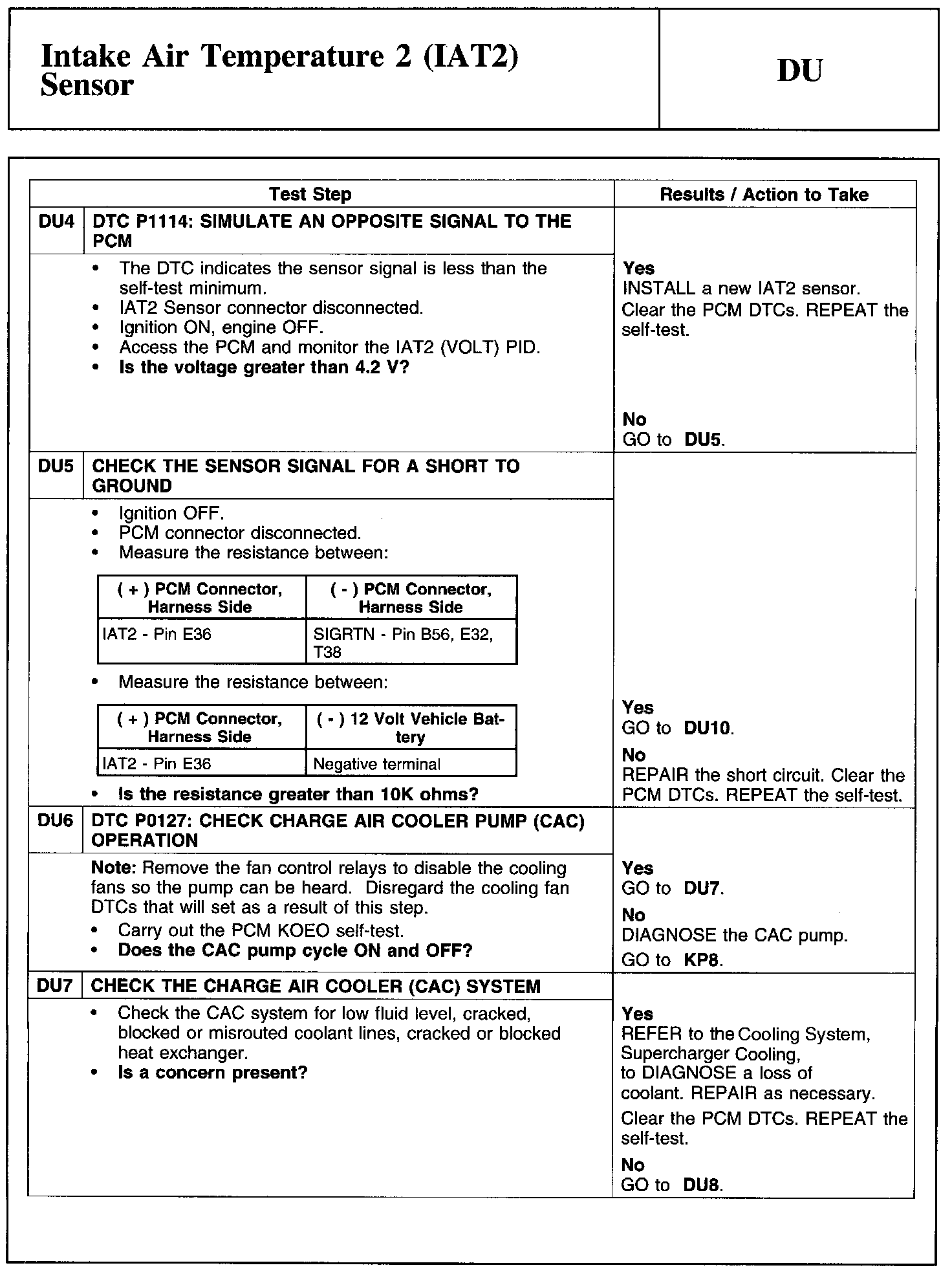

DU4-DU7:

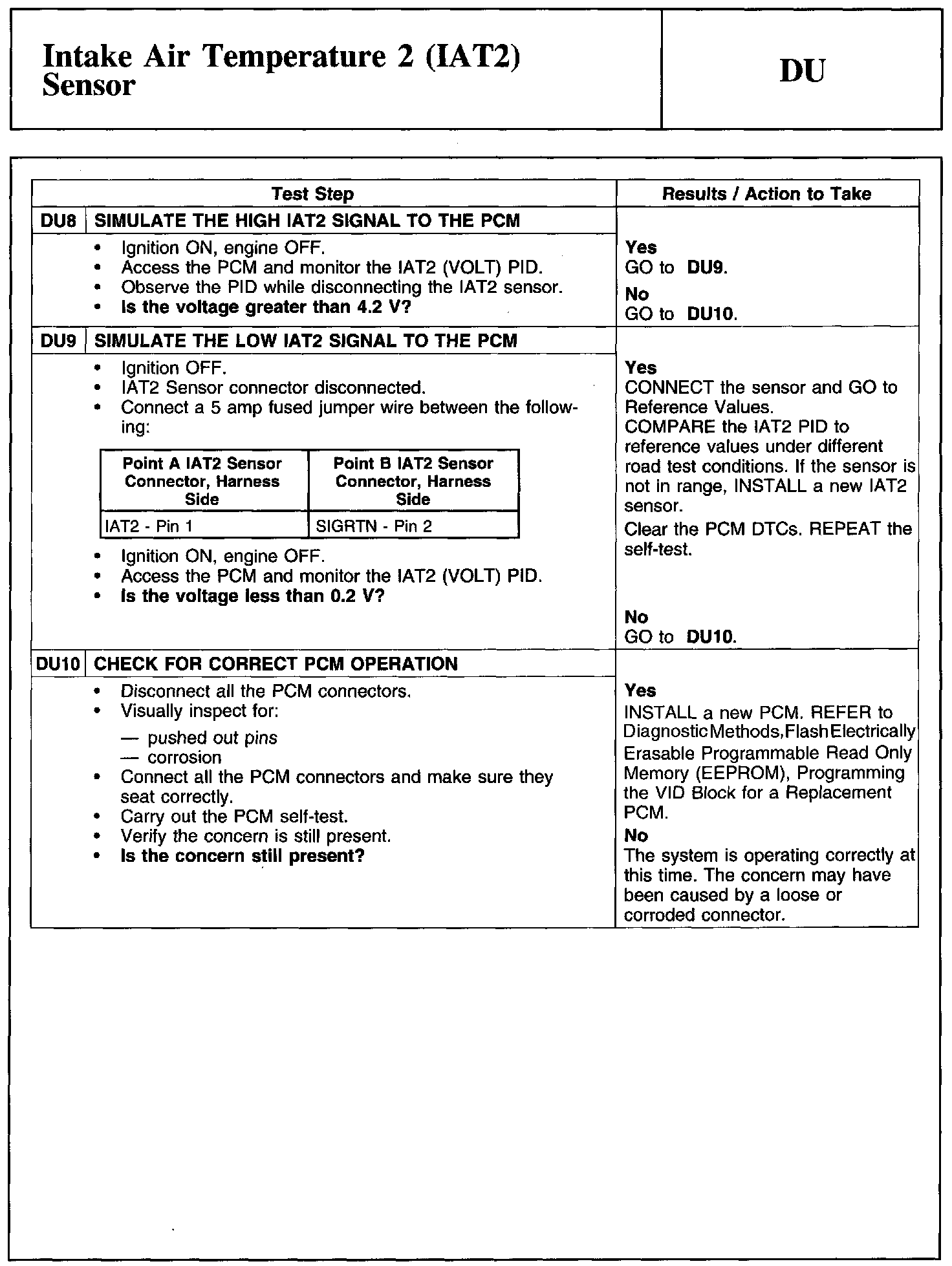

DU8-DU10:
