Dome Lamp: Service and Repair

Interior Lamp

NOTE: Overhead console with roof opening panel shown. Other consoles are similar.









Removal and Installation

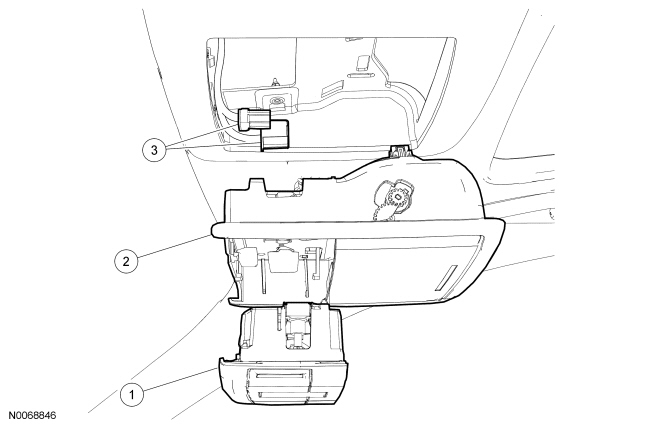

1. NOTE: Do not pull down on the front of the overhead console.

Pull down on the rear of the overhead console to remove the overhead console from the retaining clips.

- Disconnect the electrical connectors.

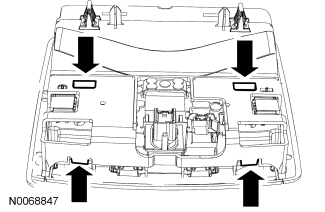

2. Release the 4 retaining clips and remove the lamp assembly from the overhead console.





3. Release the 6 retaining clips and remove the lens from the lamp assembly.

- NOTE: The bulbs can be pushed out from the backside of the lamp assembly.

Replace the bulb(s) as necessary.





4. To install, reverse the removal procedure.
