Interior Lighting Control Module (ILCM) DTC Chart

Interior Lighting

DTC Charts

NOTE: Refer to Description and Operation, Intelligent Access (IA) with Push Button Start in Anti-Theft - Passive Anti-Theft System (PATS) Anti-Theft - Passive Anti-Theft System (PATS) to review the procedures for achieving the various ignition states (ignition off, ignition in accessory, ignition on, ignition start) on vehicles with this feature.

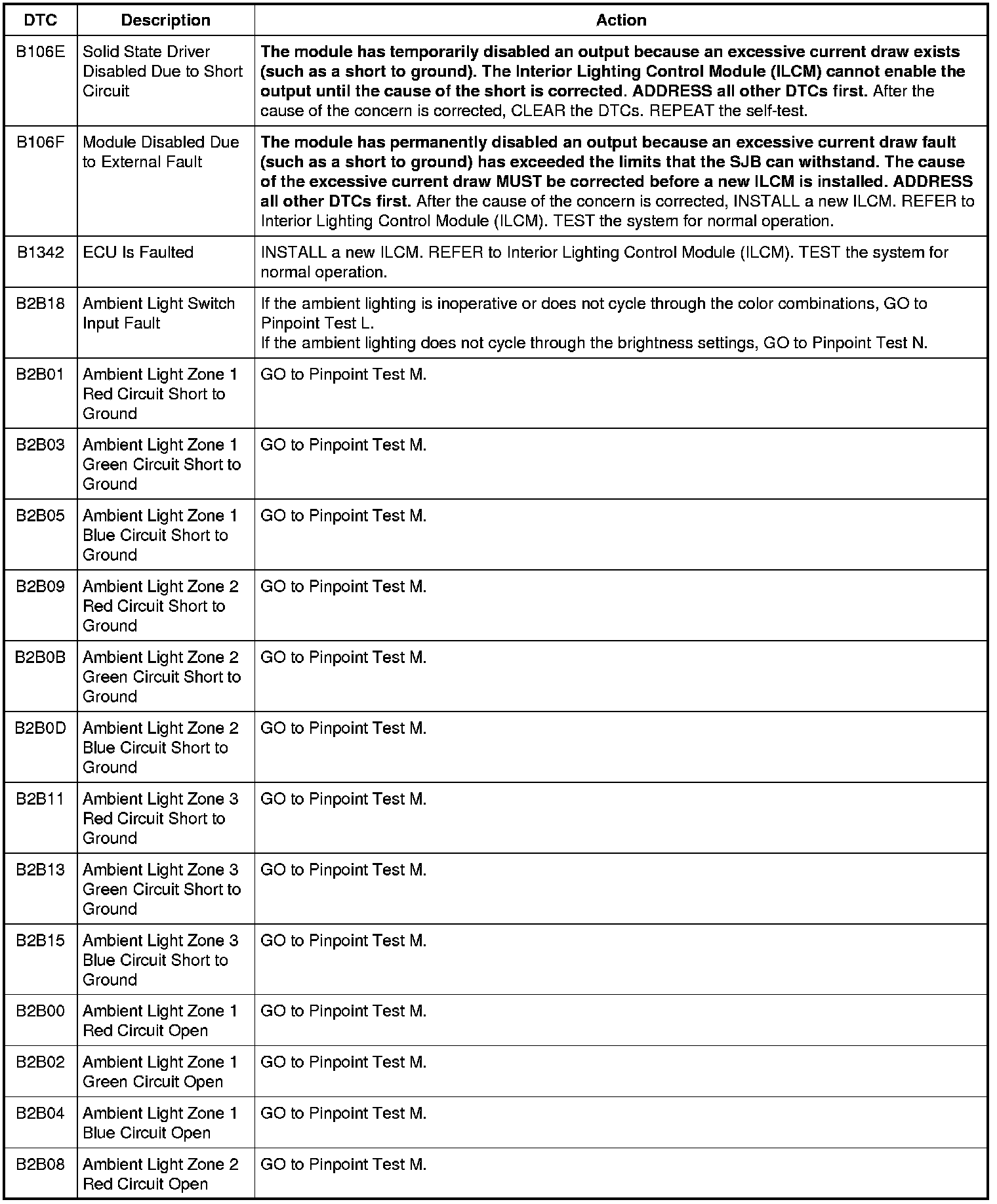

Interior Lighting Control Module (ILCM) DTC Chart
