Ambient Light Sensor: Service and Repair

Light Sensor

Removal and Installation

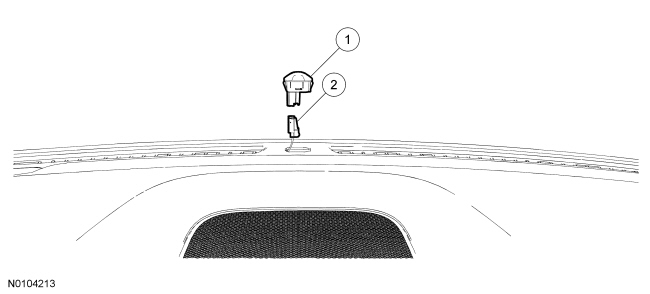

1. Using a suitable tool (such as a pocket screwdriver), remove the light sensor.
- Disconnect the electrical connector.

2. To install, reverse the removal procedure.
