Power Mirror Switch: Service and Repair

Exterior Mirror Control Switch

Removal and Installation

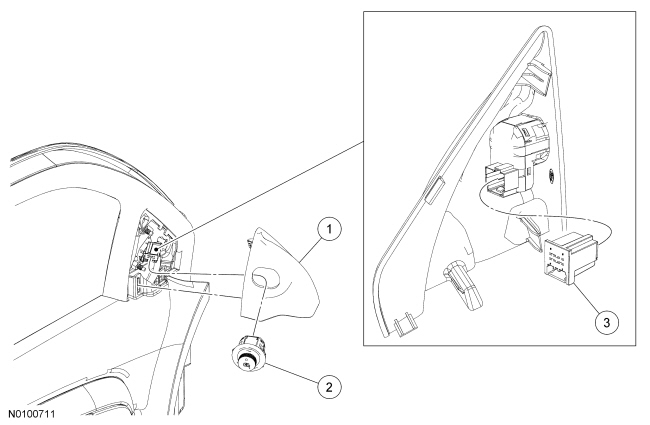

1. Remove the sail panel.
- Disconnect the electrical connector.

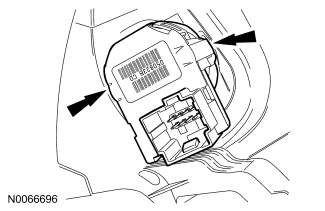

2. Depress the 2 locking tabs and remove the exterior mirror control switch.

3. To install, reverse the removal procedure.
