Brake Shift Interlock Actuator: Notes

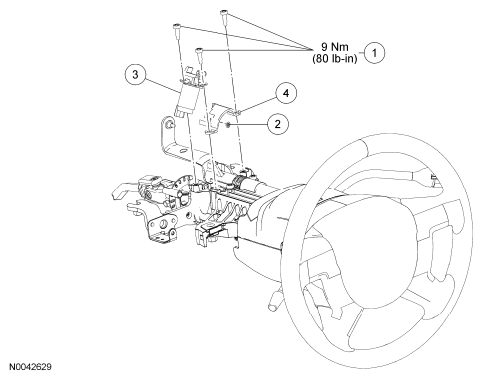

Fig 1: Exploded View Of Brake Shift Interlock Actuator With Torque Specifications
G06182056Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N806584-S Brake Shift Interlock Actuator (BSIA) bolts
2 W623450-S BSIA clip
3 3Z719 BSIA
4 7A216-A Insert plate
