Anti-Lock Brake System (ABS) Module: Notes

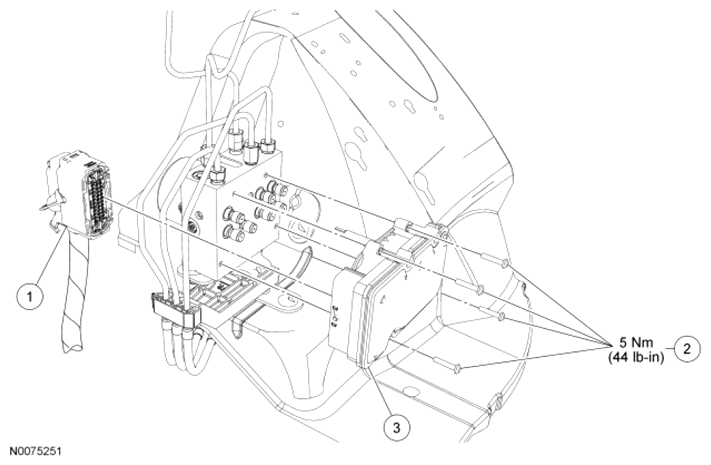

Fig 1: Locating Anti-Lock Brake System Module With Torque Specifications
G07451750Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 - ABS module electrical connector (part of 12A581)
2 - ABS module screws (4 required) (part of 2C219)
3 2C219 ABS module
