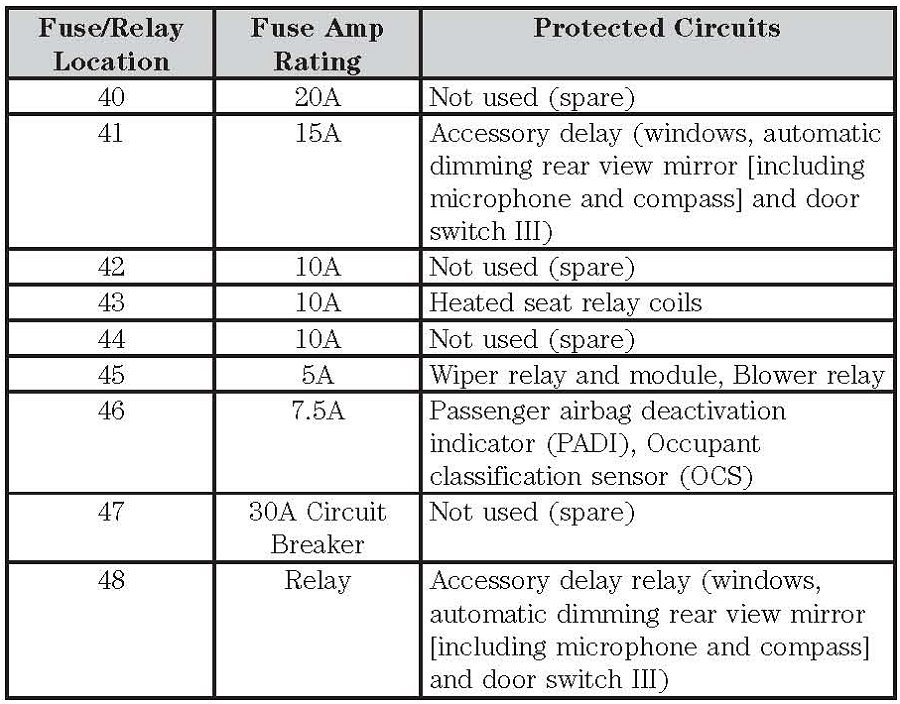

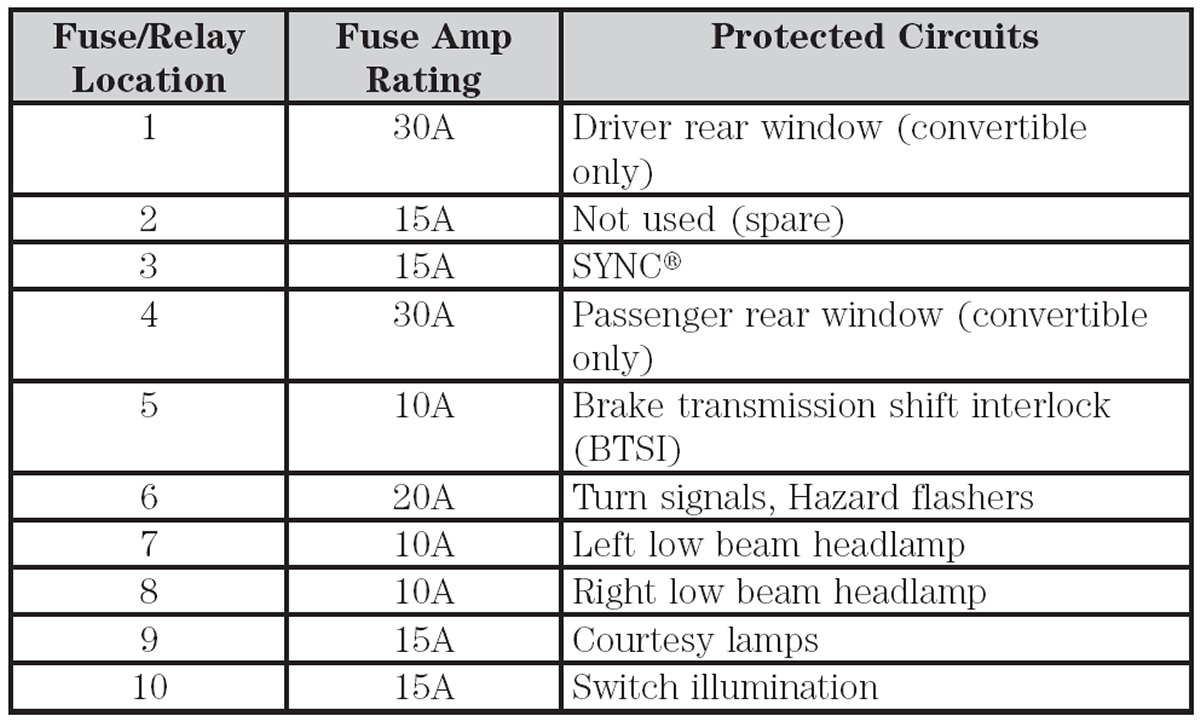

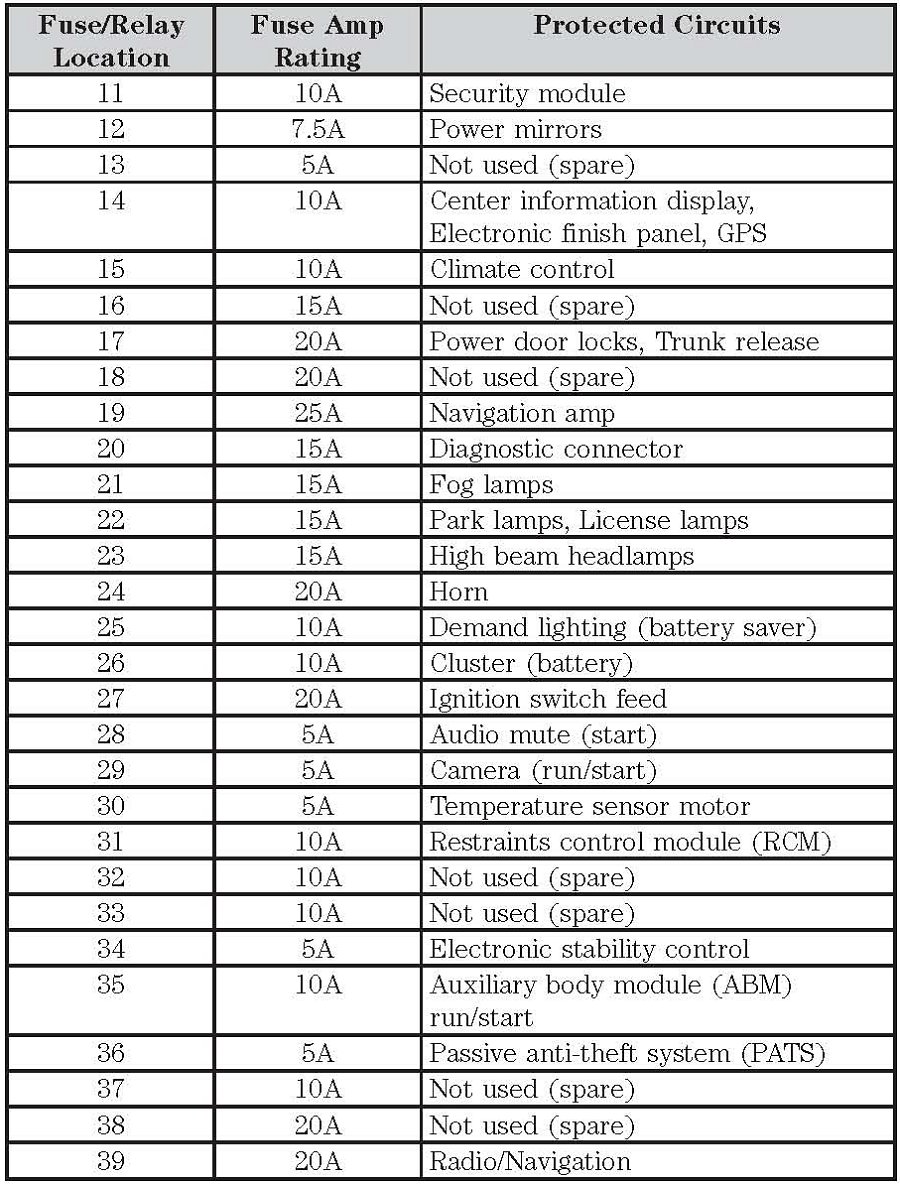

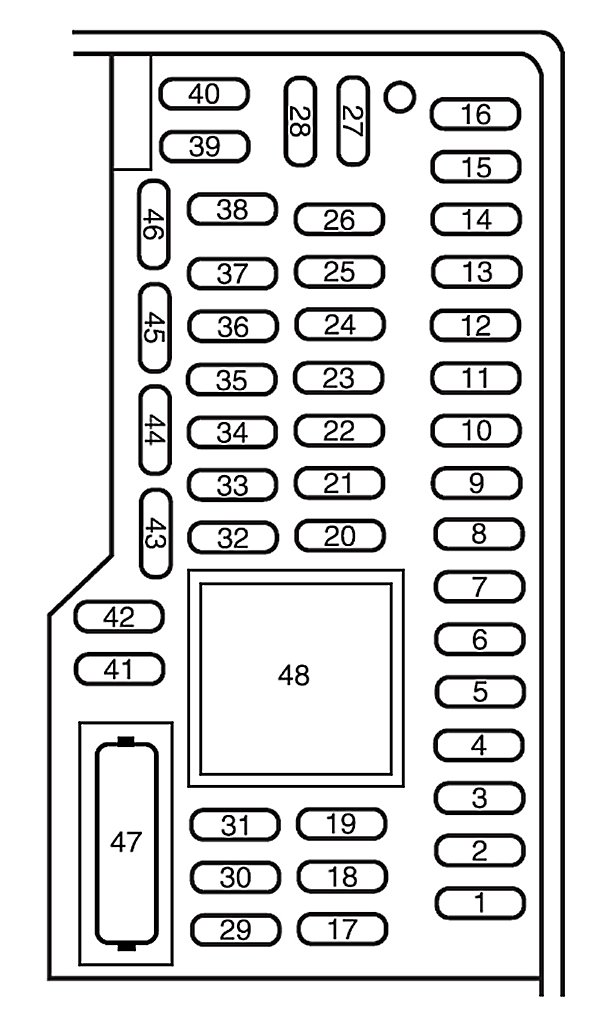

Passenger Compartment Fuse Panel




















Passenger Compartment Fuse Panel is located in the lower passenger side are behind the kick panel.
