Side Impact Sensor: Notes
WARNING: This page is about a different car, the 2010 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

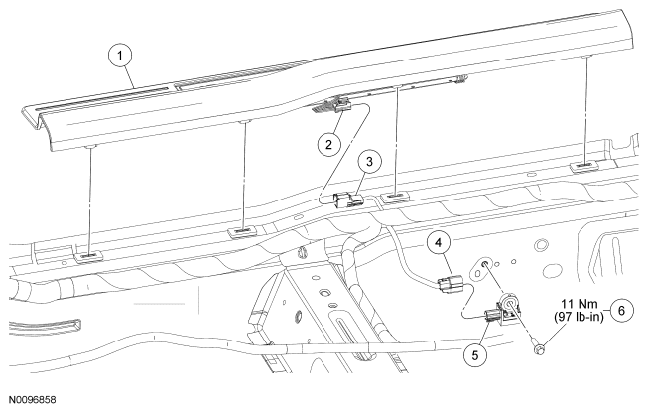

RH shown in illustration, LH similar.
PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 13208 | Illuminated scuff plate trim panel (if equipped) |
| 2 | - | Electrical connector (part of 13208) (if equipped) |
| 3 | - | Electrical connector (part of 14A005) (if equipped) |
| 4 | - | Side impact sensor electrical connector (part of 14A005) |
| 5 | 14B006 | Side impact sensor |
| 6 | - | Side impact sensor bolt (part of 14B345) |
