Reversing Lamp Switch: Notes
WARNING: This page is about a different car, the 2010 Ford Mustang. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
T5OD transmission shown, TR3650 transmission similar.
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Reversing lamp switch electrical connector (part of 12B637) |
| 2 | 15520 | Reversing lamp switch |
TR6060 Transmission

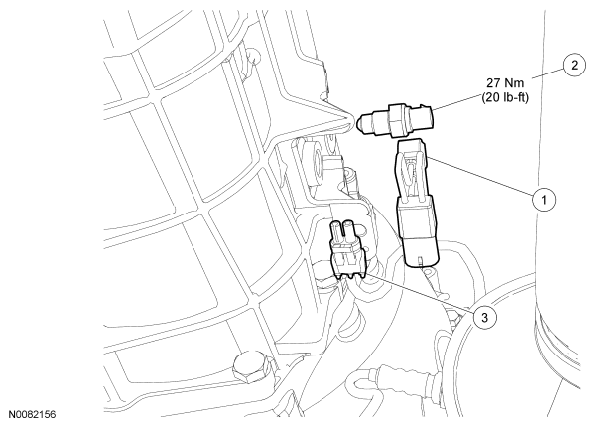

Fig 2: Reversing Lamp Switch With Jumper Harness And Electrical Connector With Torque Specifications
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Reversing lamp switch jumper harness |
| 2 | 15520 | Reversing lamp switch |
| 3 | - | Reversing lamp switch electrical connector (part of 12B637) |
