Main Control Components

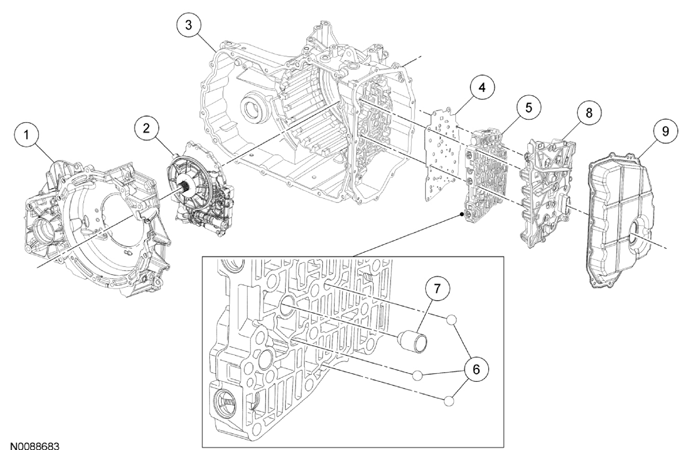

Fig 1: Exploded View Of Main Control Components
G07782539Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 7975 Torque converter housing
2 7A103 Pump assembly
3 7005 Transaxle case
4 7Z490 Main control-to-transaxle case separator plate
5 7A100 Valve body
6 7E195 Check balls
7 7J191 Solenoid damper (Shift Solenoid A (SSA))
8 7G391 Solenoid body assembly
9 7G004 Main control cover
