Test DN: Motor Electronics Coolant Temperature (MECT) Sensor

PINPOINT TEST DN: MOTOR ELECTRONICS COOLANT TEMPERATURE (MECT) SENSOR

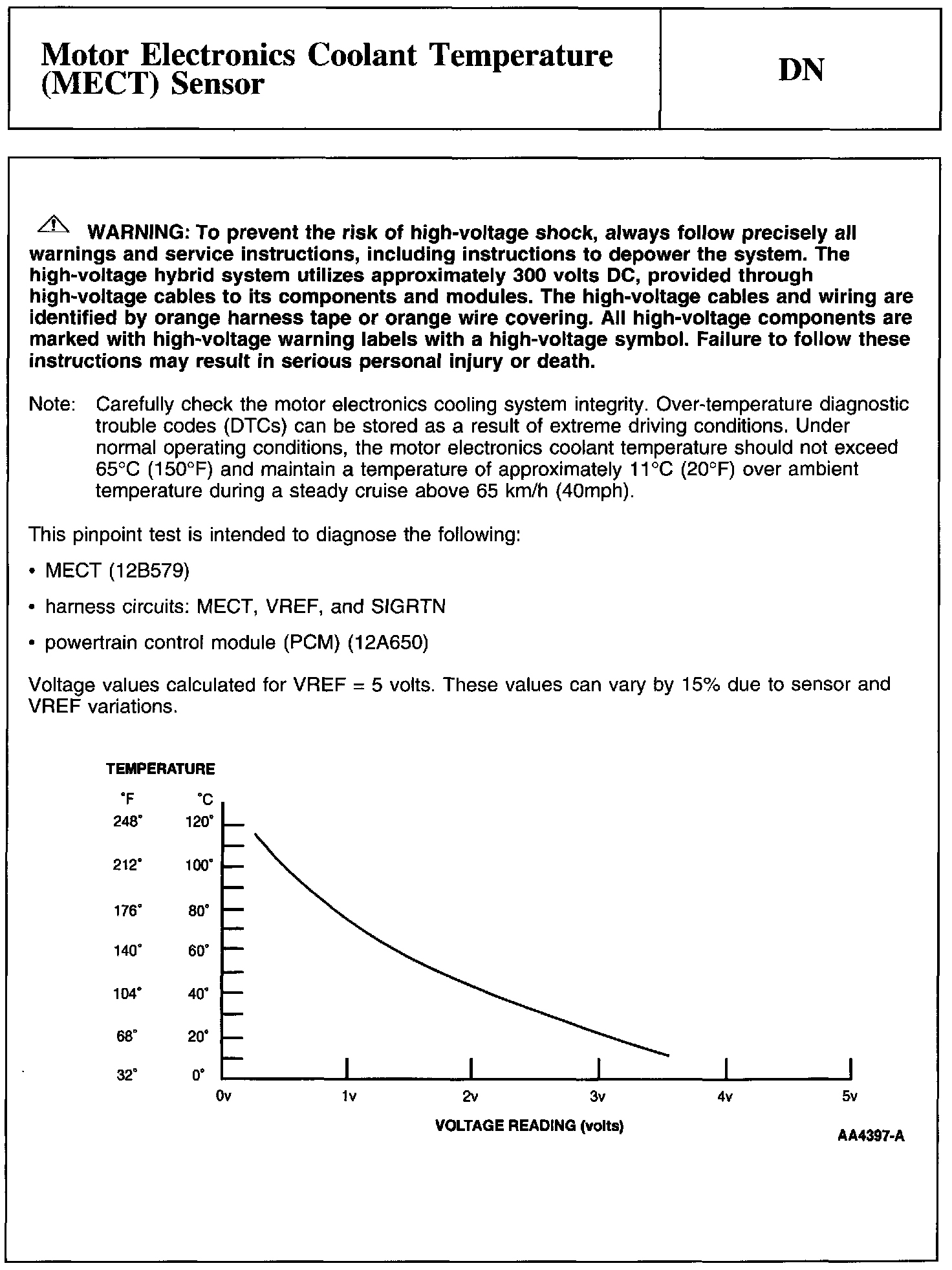

Warning And Note:

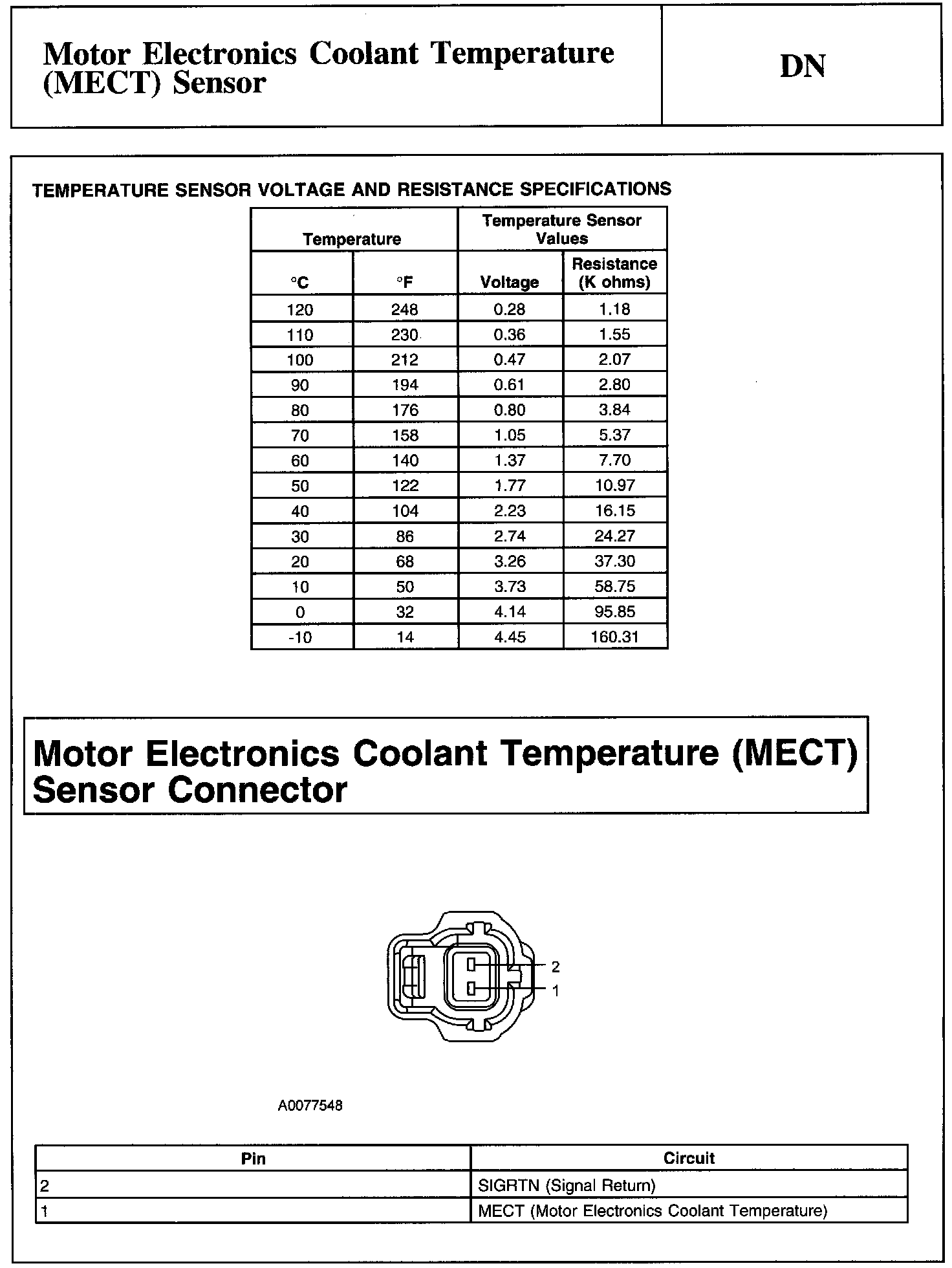

Temperature Sensor Voltage And Resistance Specfications And Motor Electronics Coolant Temperature (MECT) Sensor Connector:

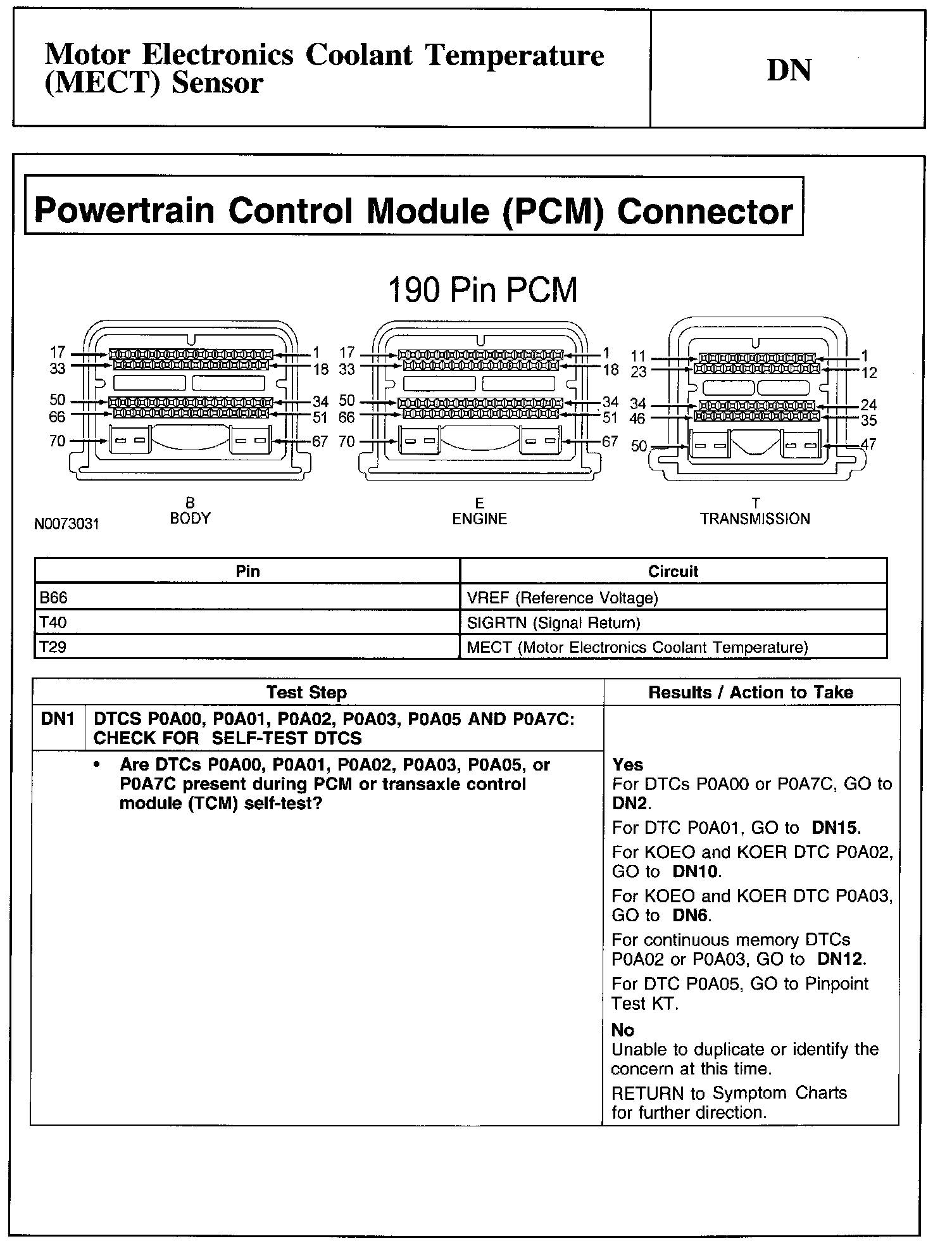

DN1:

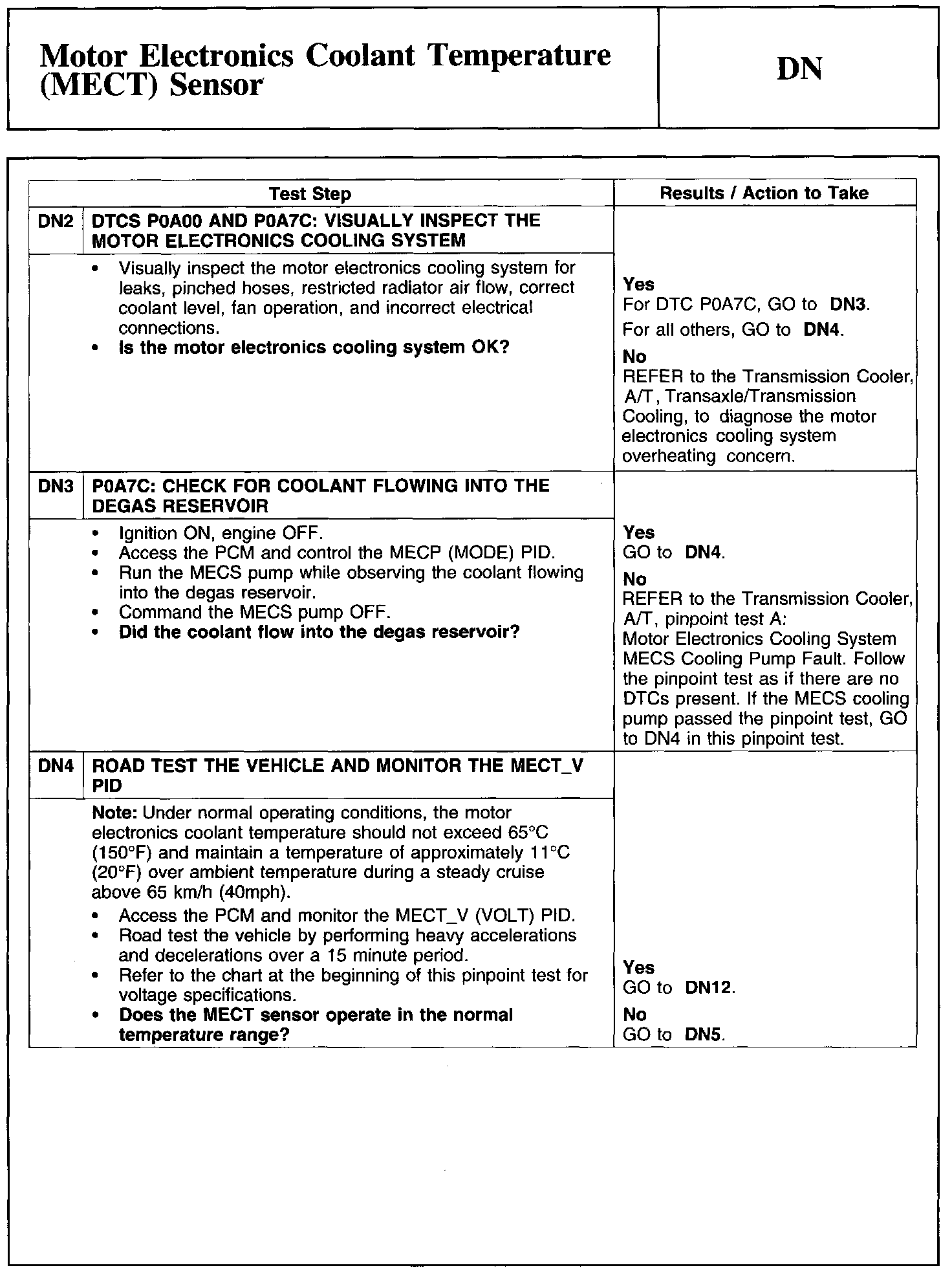

DN2-DN4:

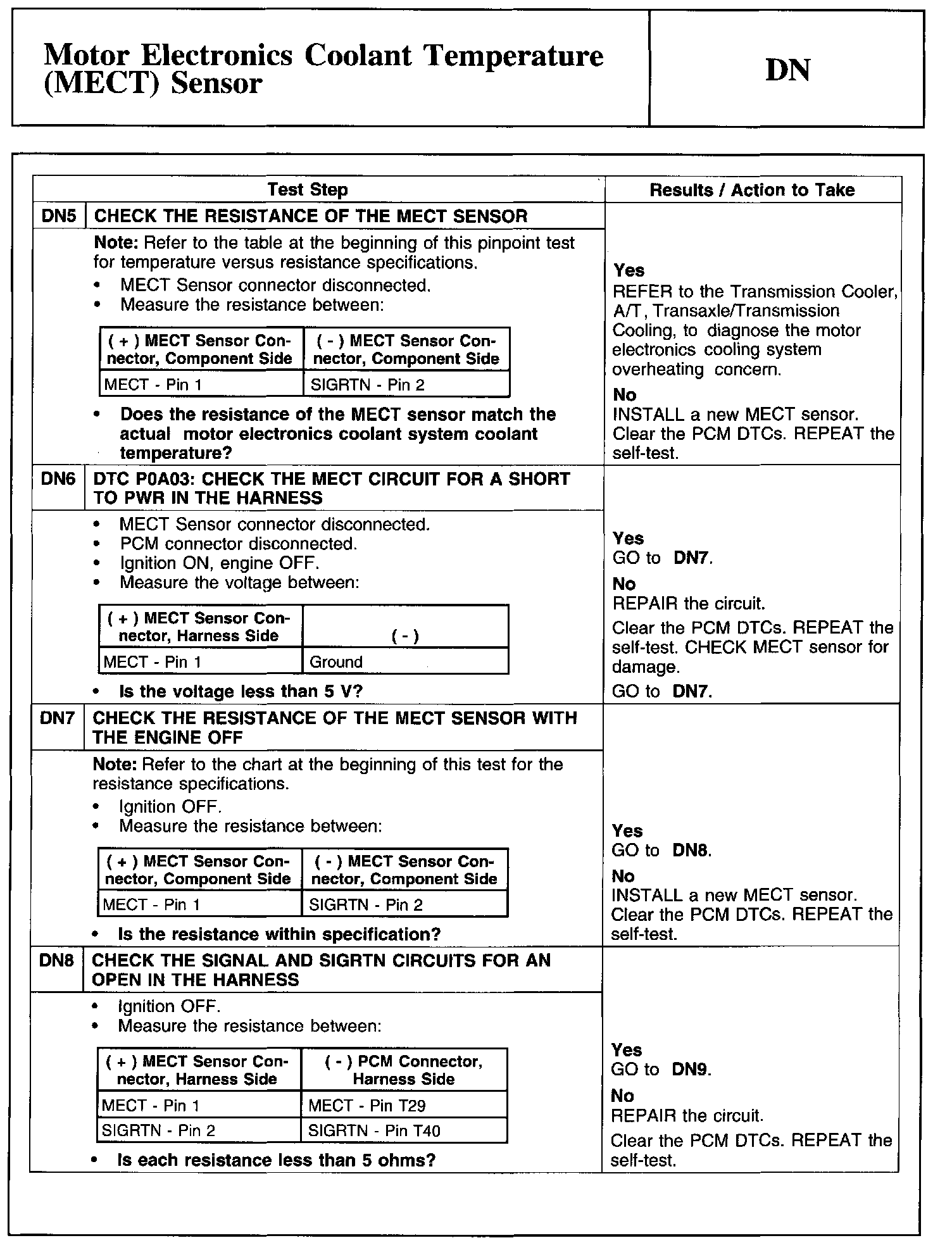

DN5-DN8:

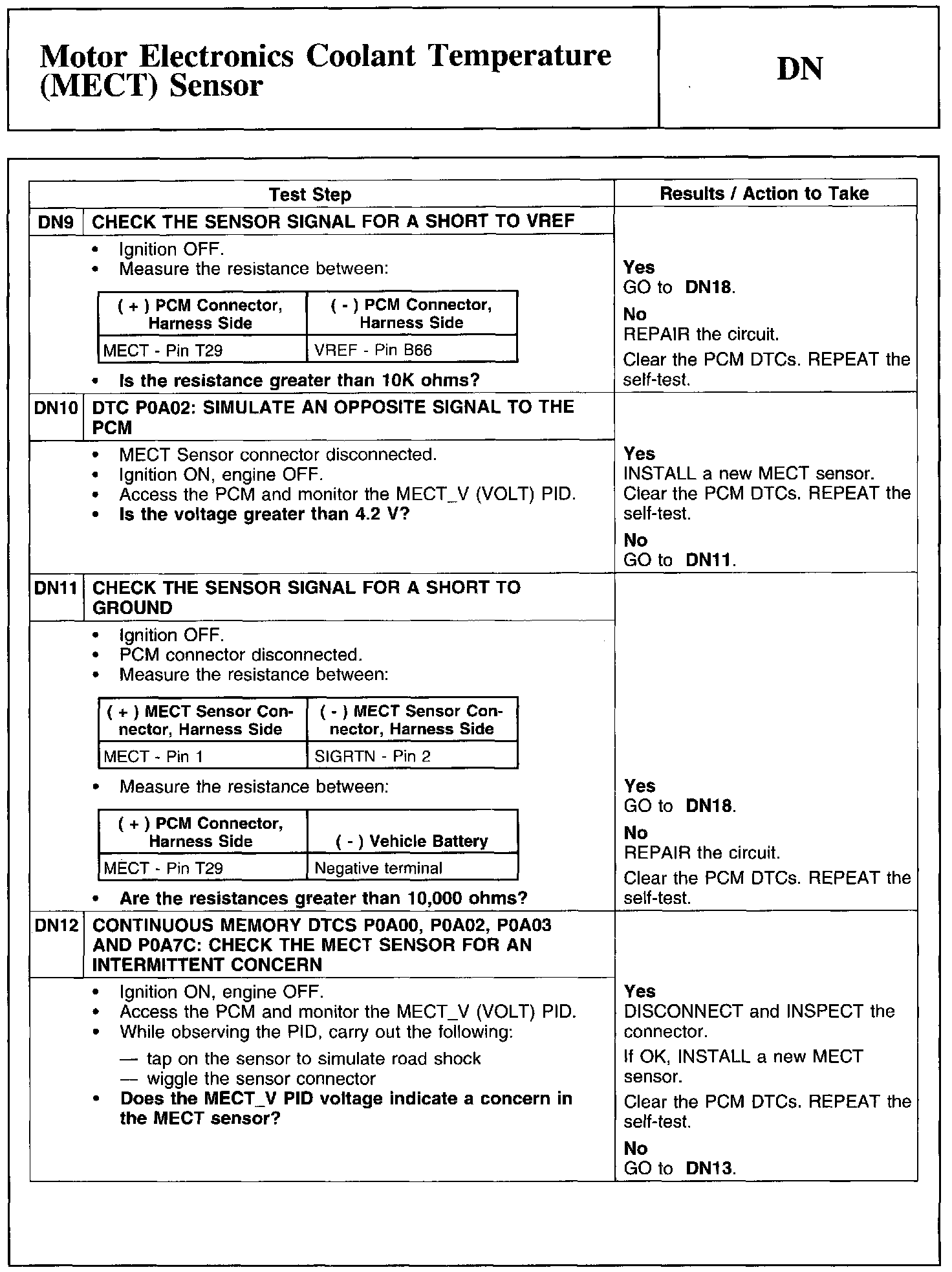

DN9-DN12:

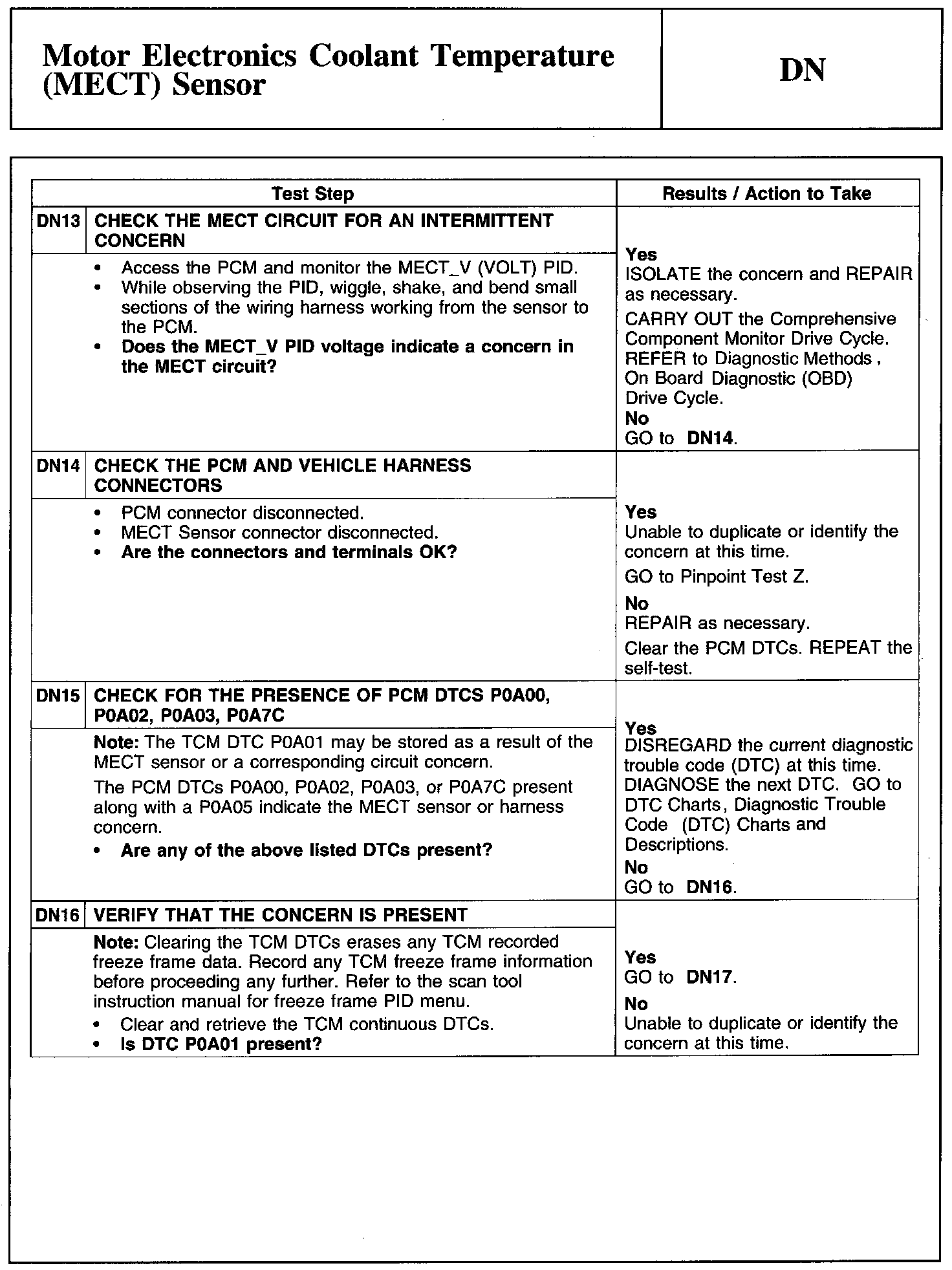

DN13-DN16:

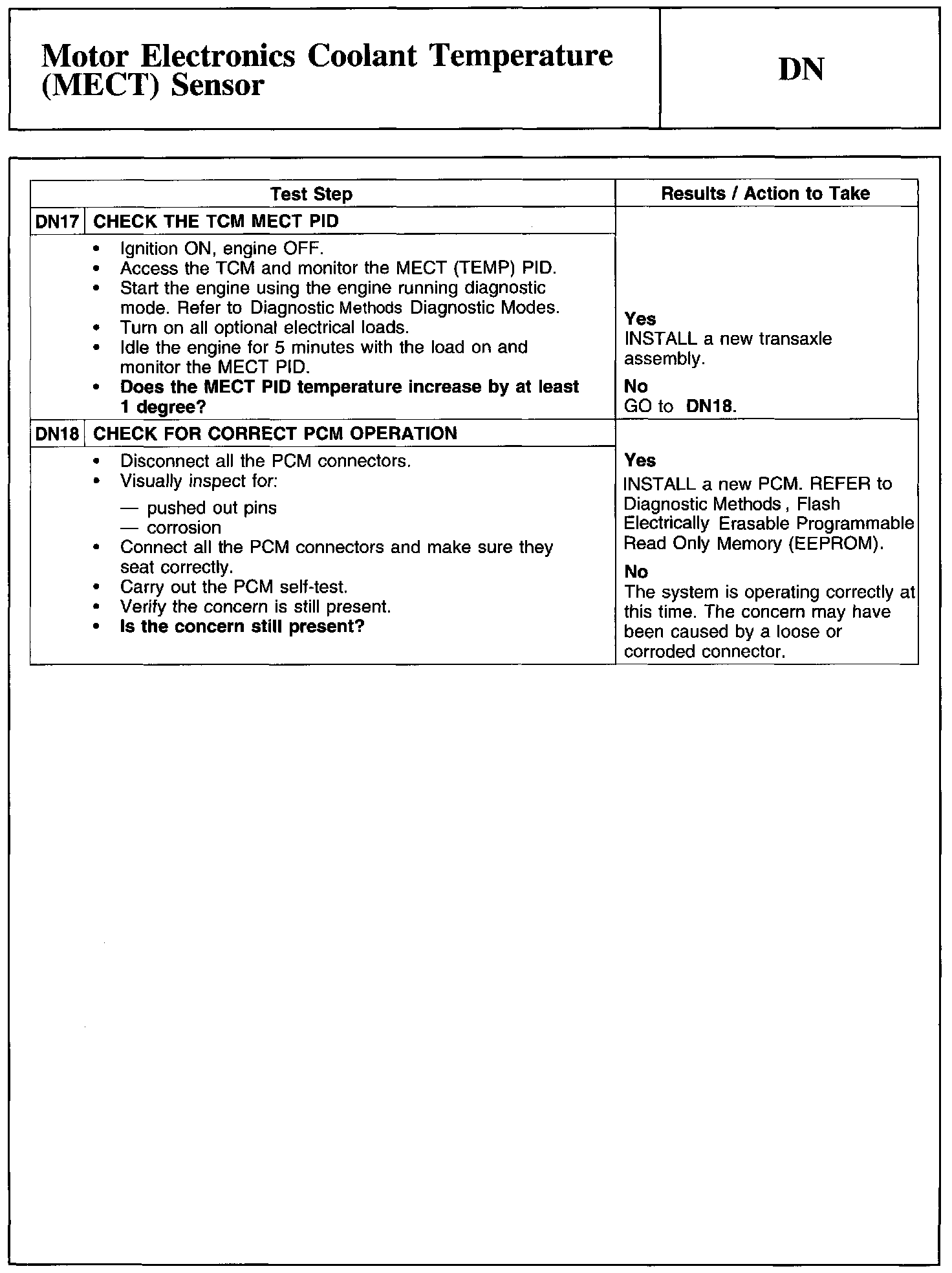

DN17-DN18:
