Test DK: Accelerator Pedal Position (APP) Sensor
PINPOINT TEST DK: ACCELERATOR PEDAL POSITION (APP) SENSOR

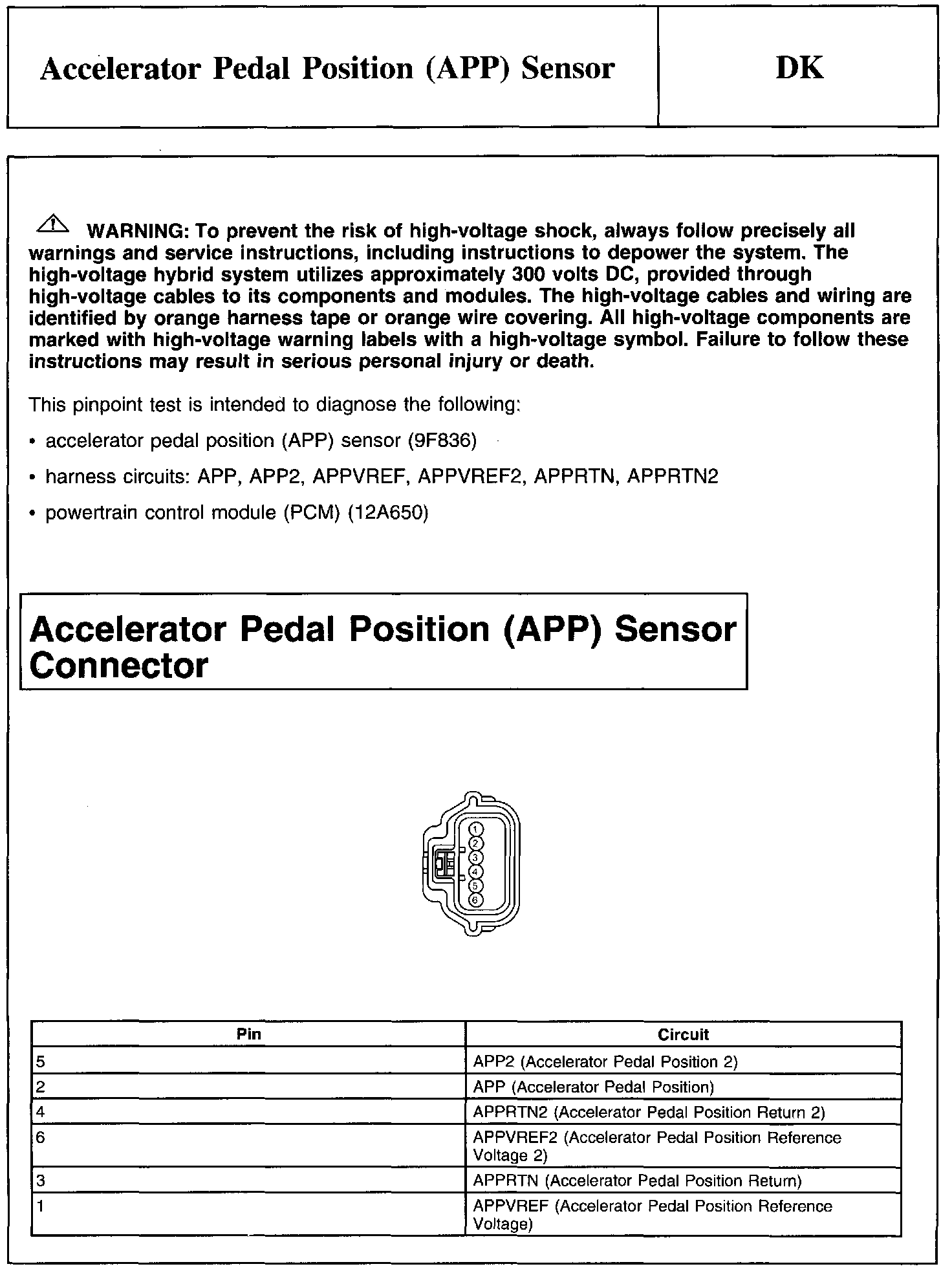

Warning And Accelerator Pedal Position (APP) Sensor Connector:

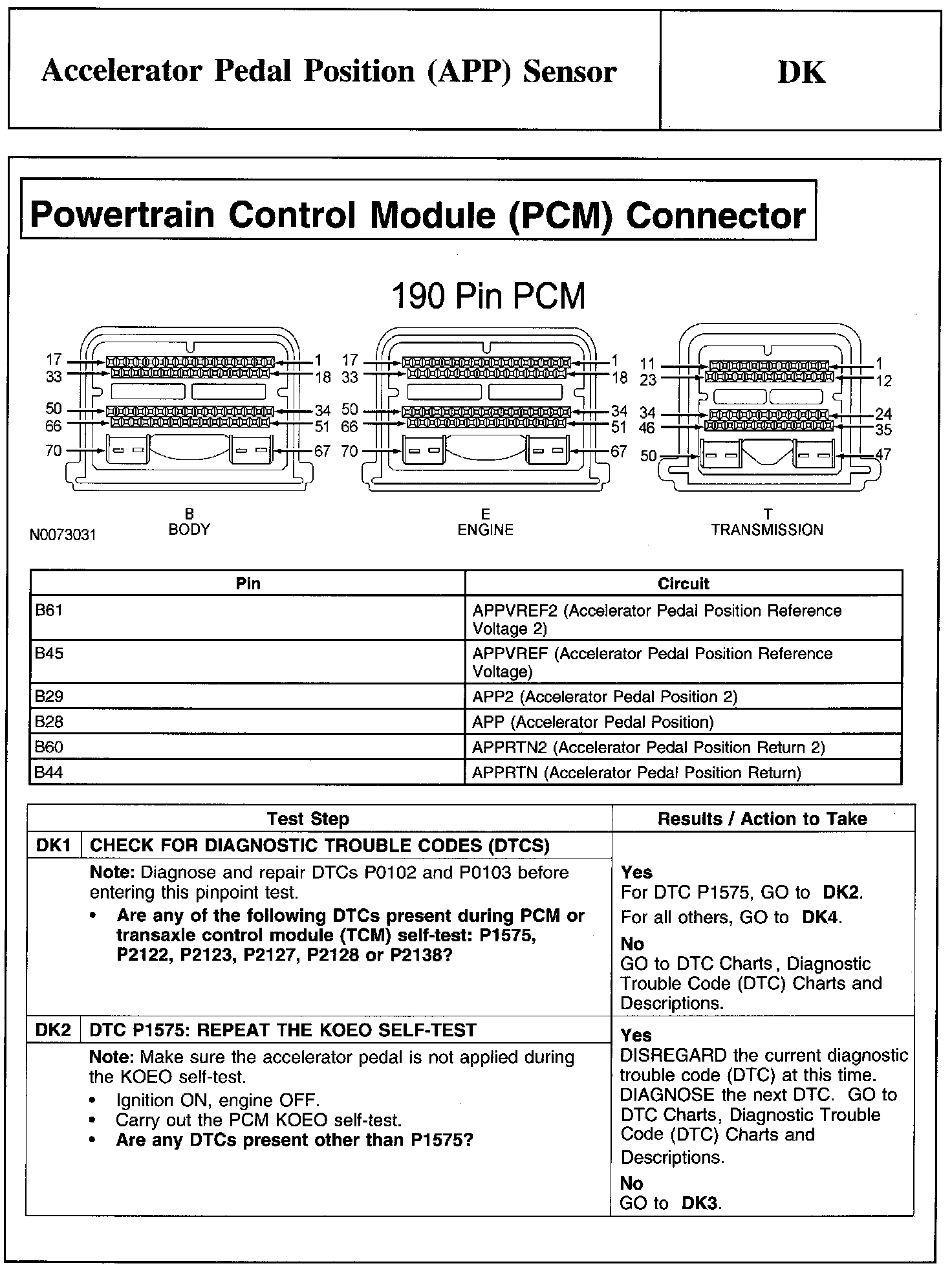

DK1-DK2:

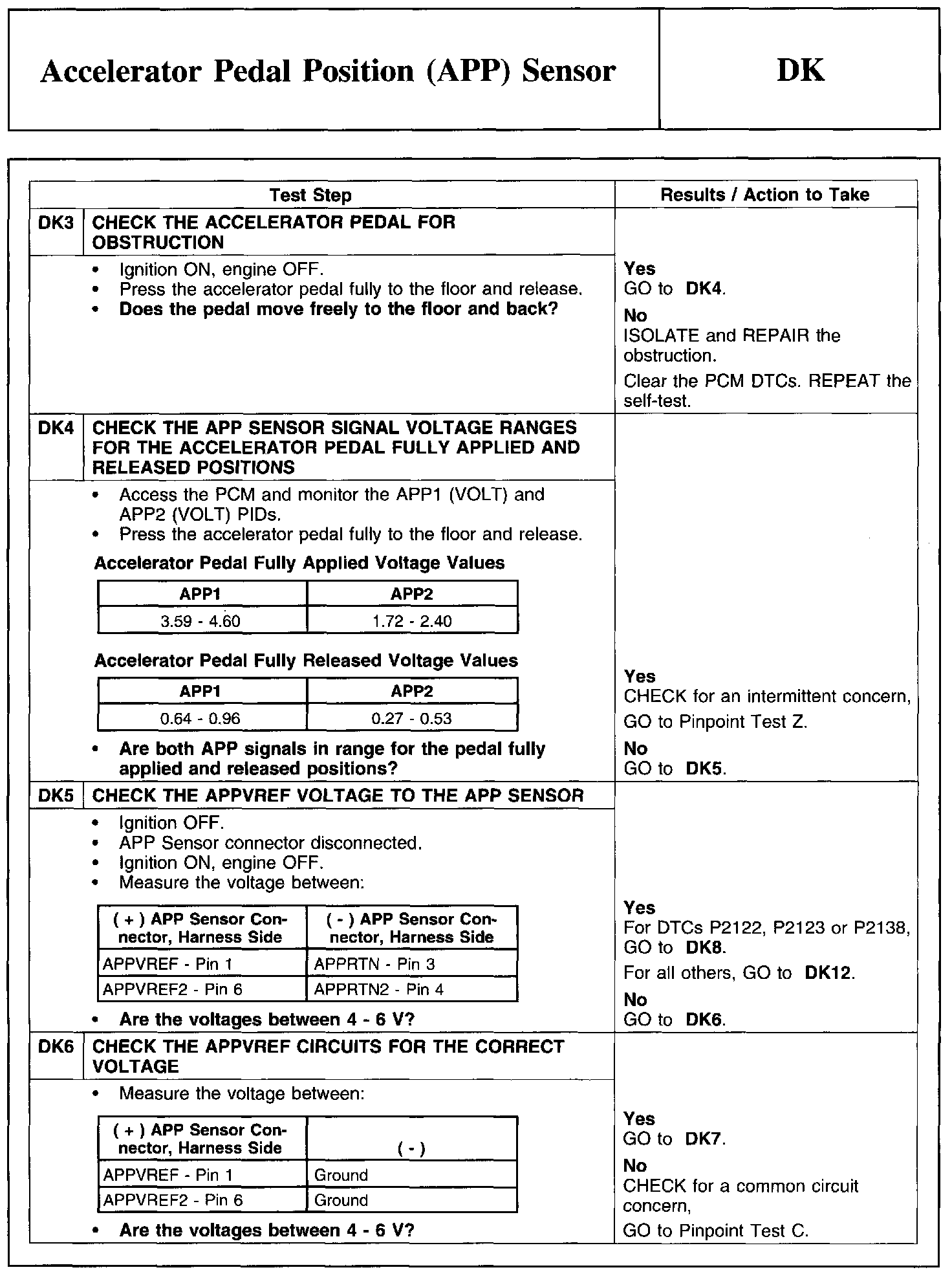

DK3-DK6:

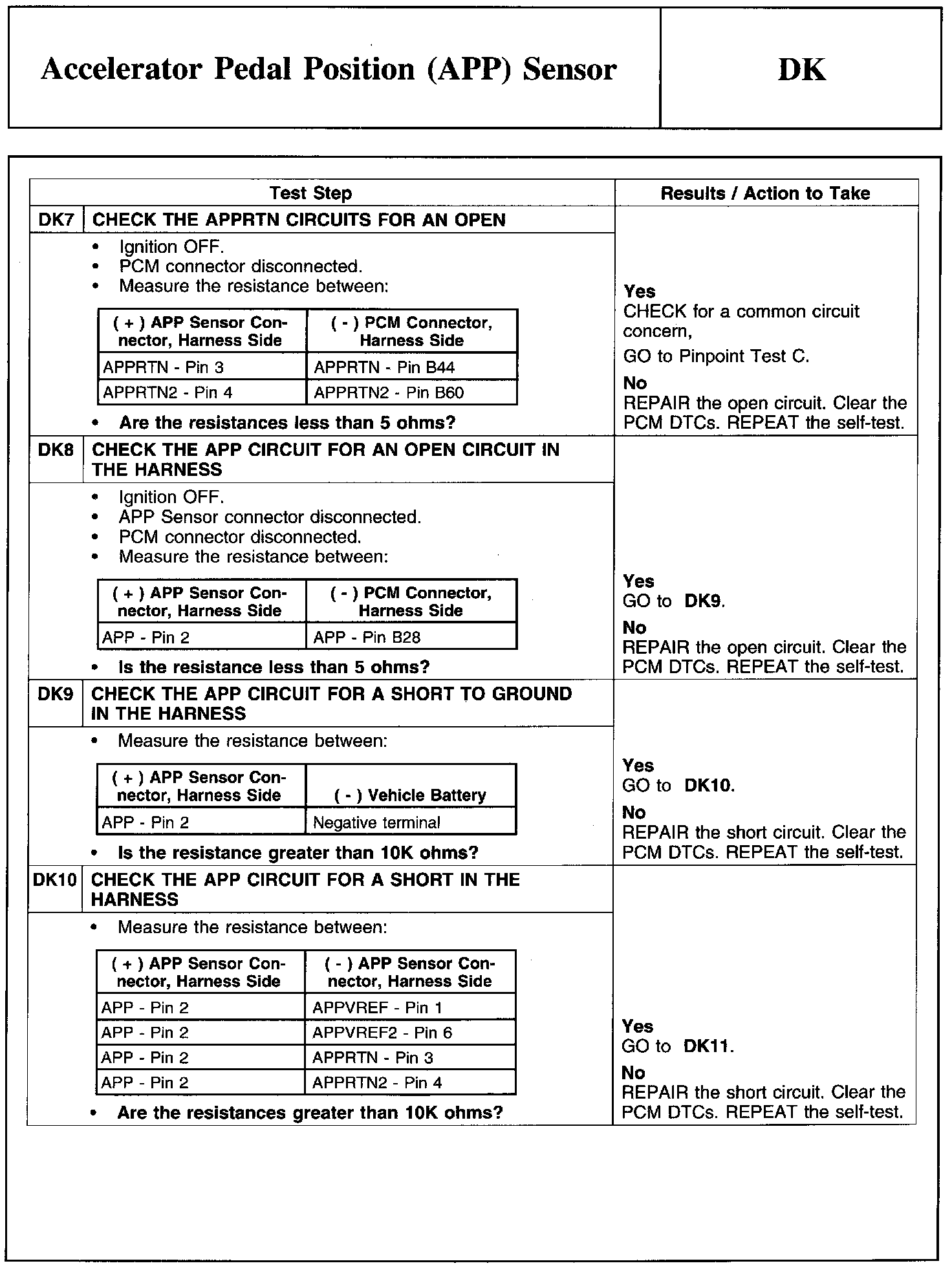

DK7-DK10:

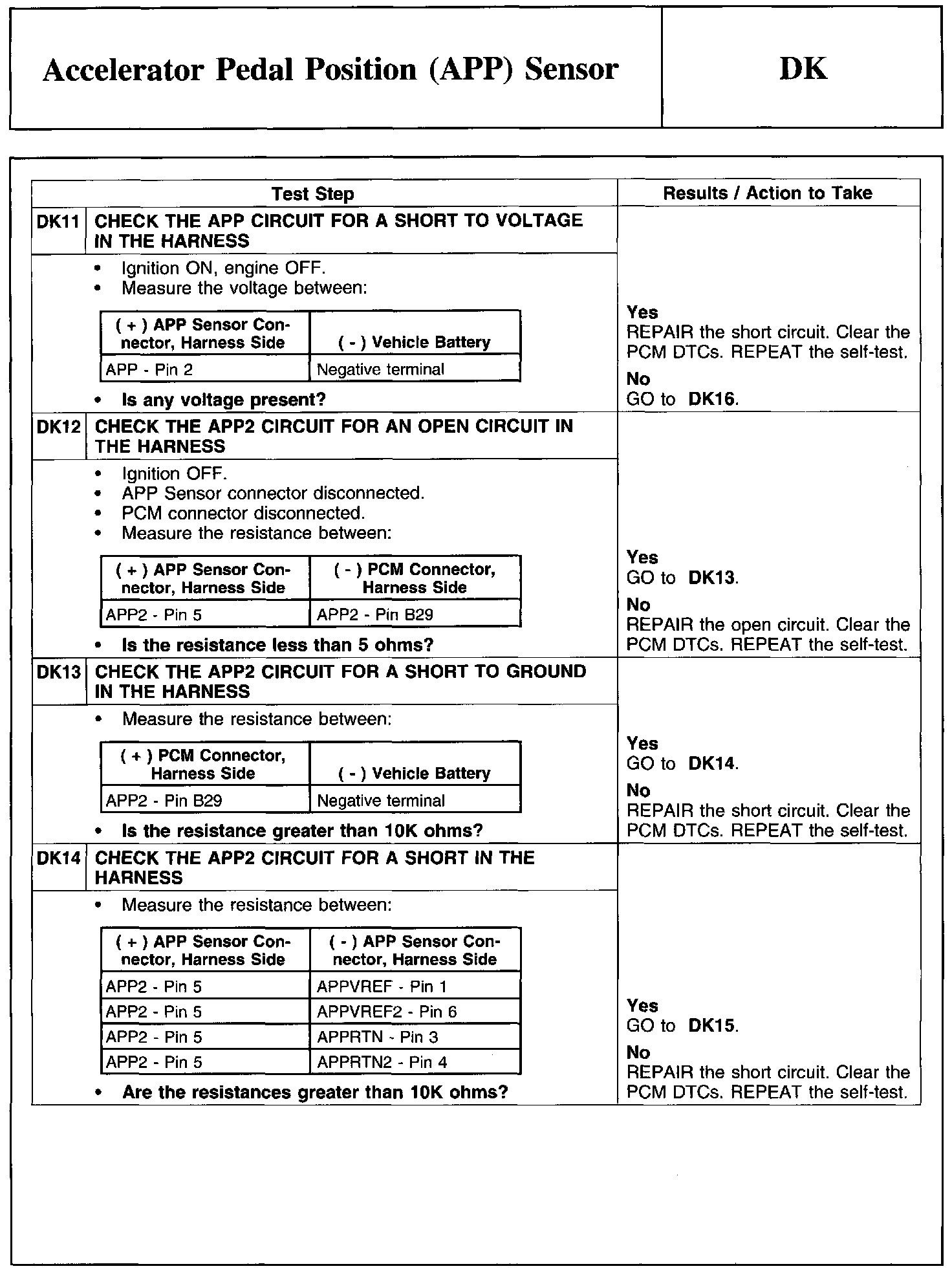

DK11-DK14:

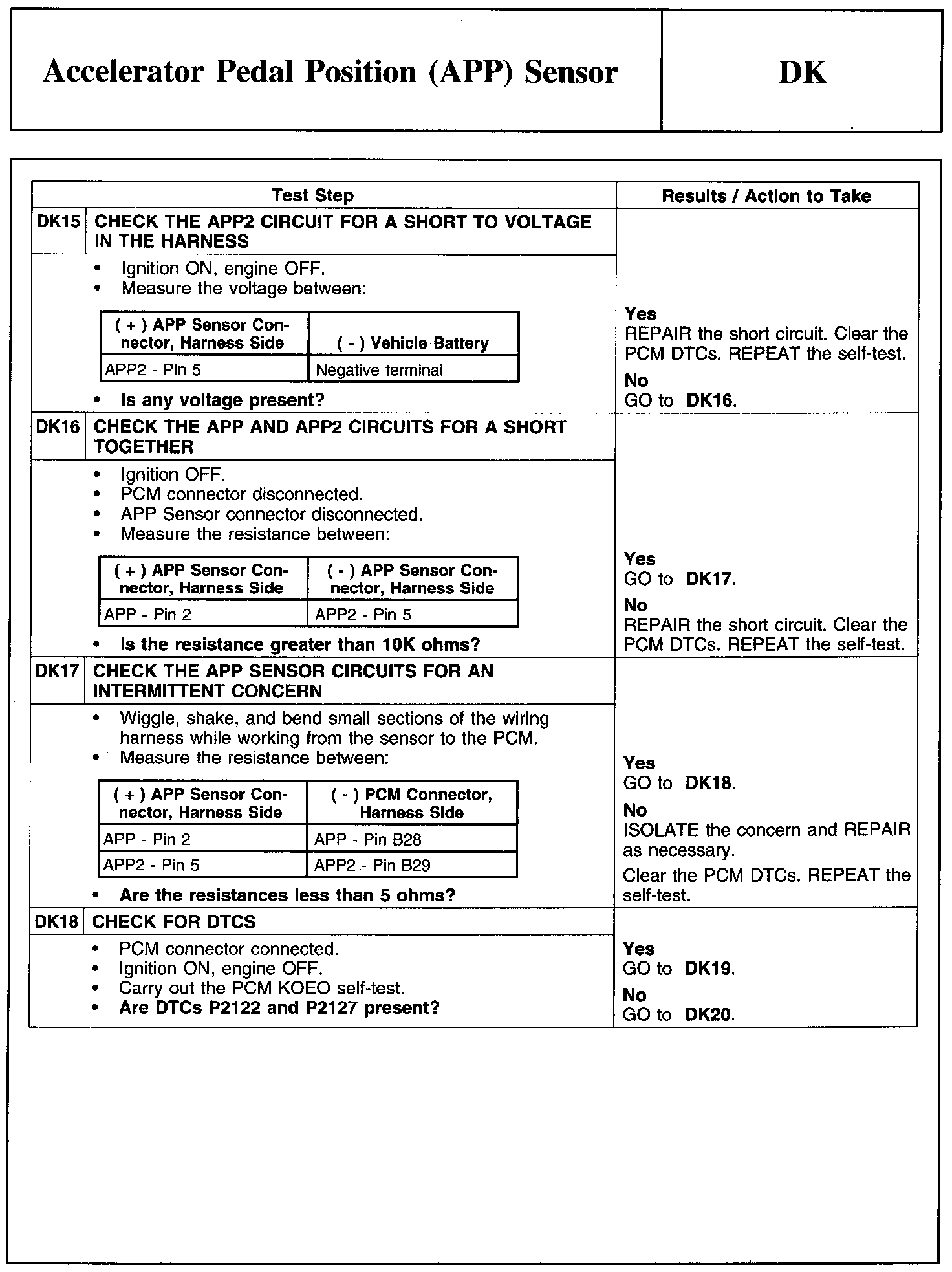

DK15-DK18:

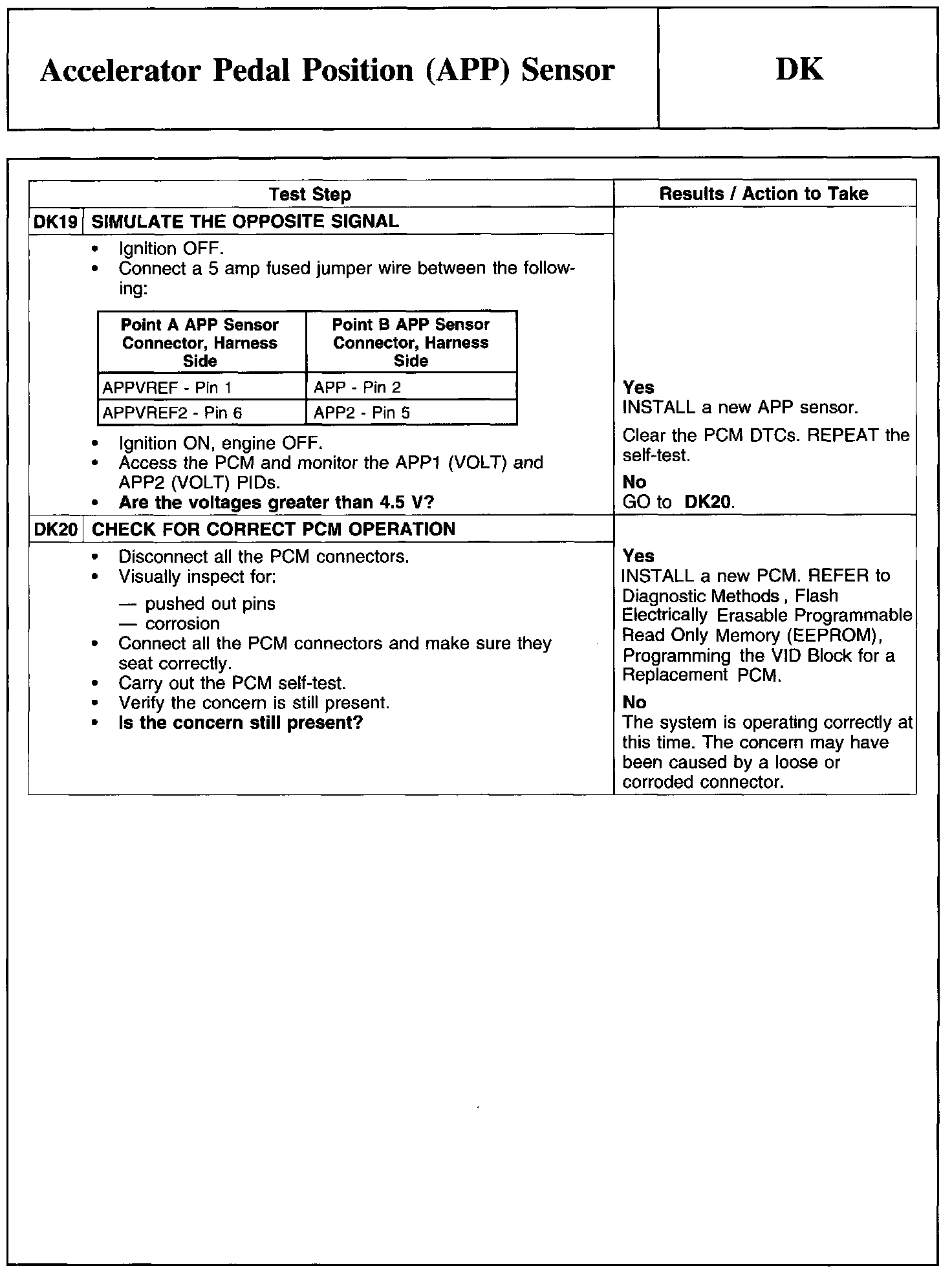

DK19-DK20:
