ABS Module DTC Chart

Anti-Lock Control - Non-Hybrid

DTC Charts

NOTE: This DTC chart applies to non-hybrid vehicles only. For hybrid vehicle DTCs, refer to the ABS Module DTC Chart in Anti-Lock Control - Hybrid.

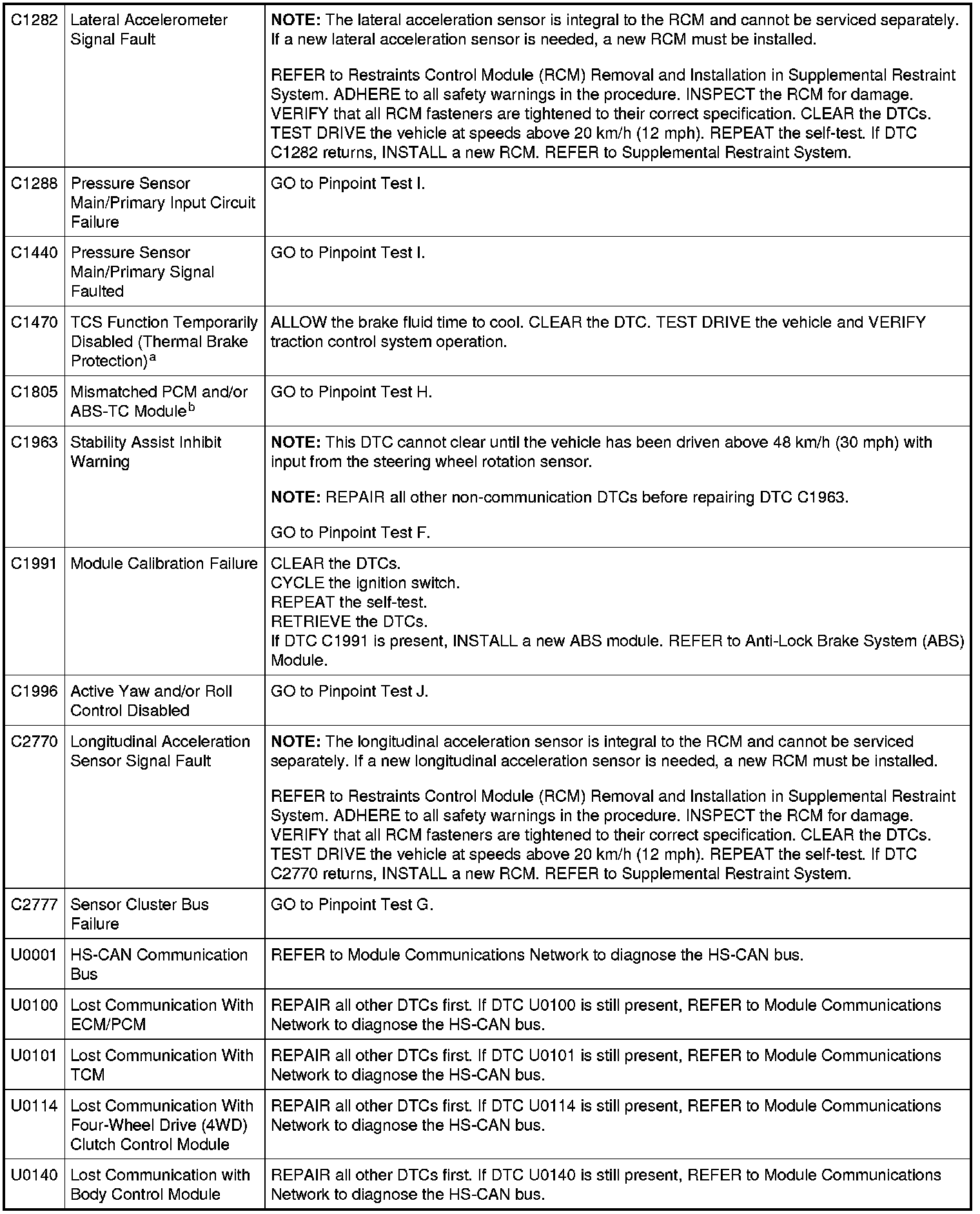

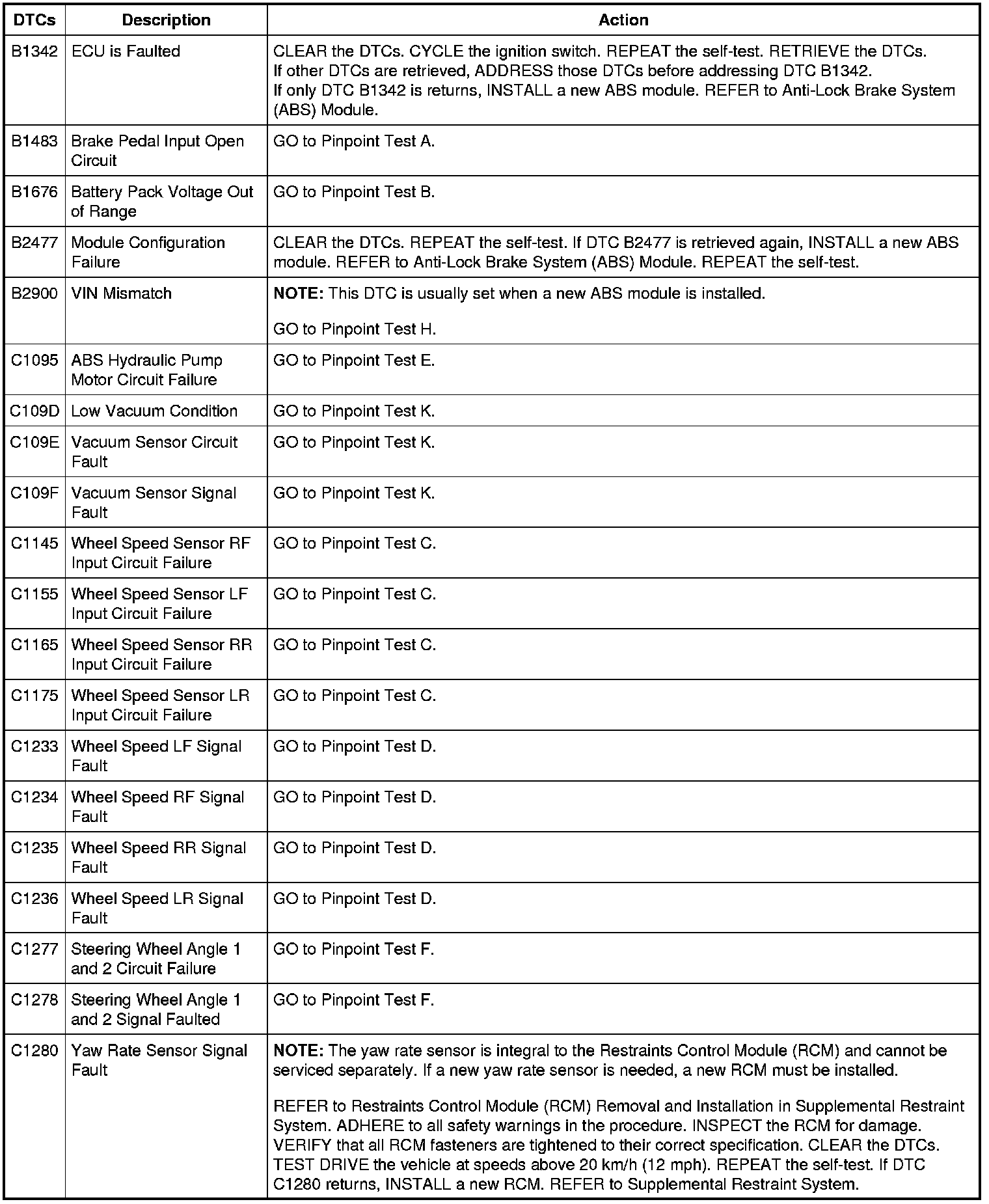

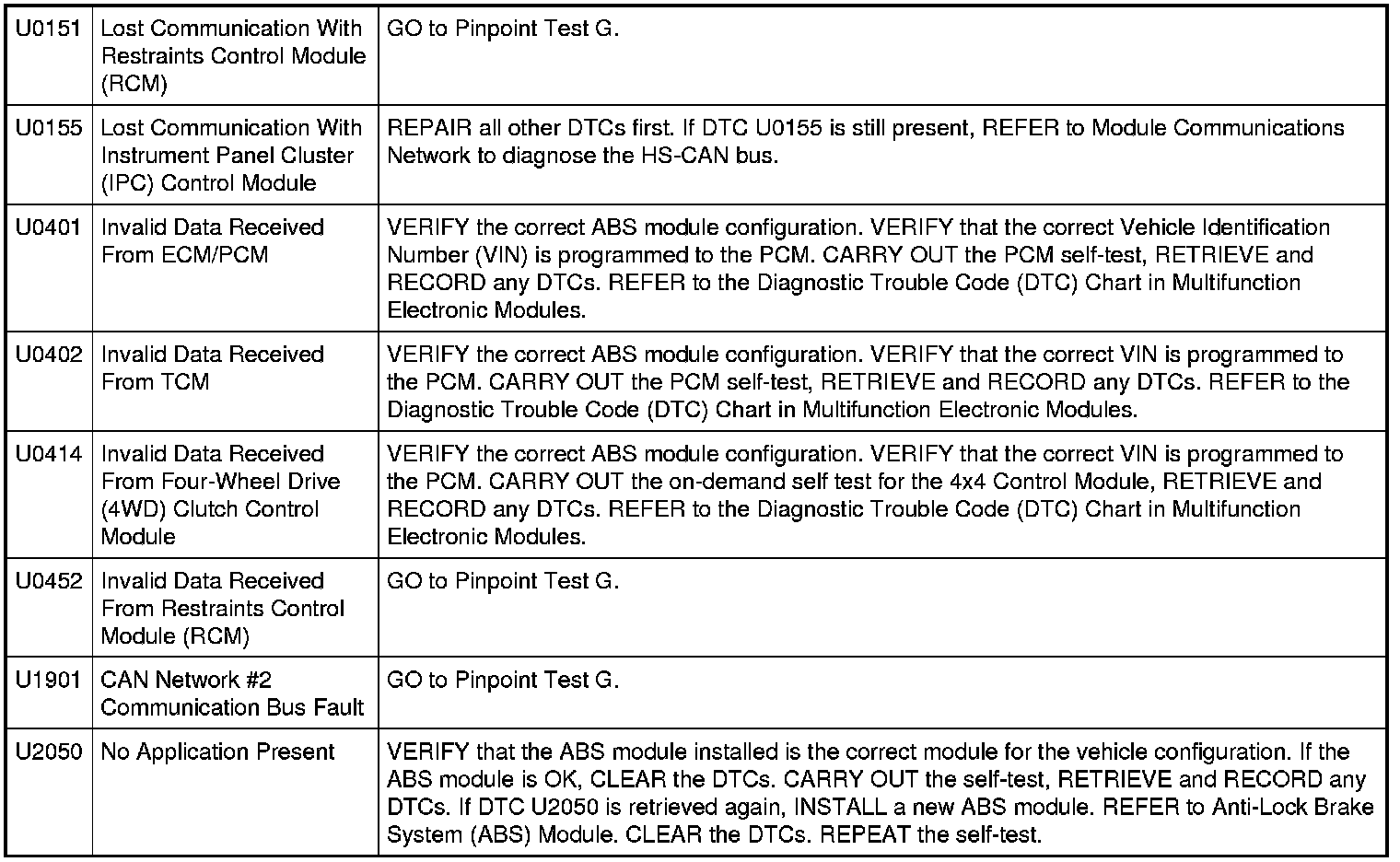

ABS Module DTC Chart













a Traction Control System

b Traction Control
