Fuel Level Sensor Connector - C3271
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Fuel Level Sensor Connector - C3271

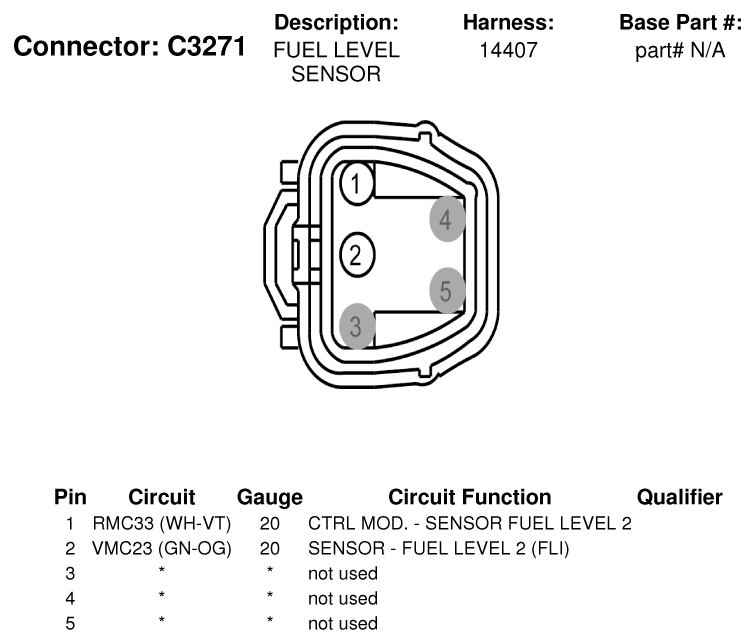

Fig 1: Fuel Level Sensor Connector End View (C3271)
Courtesy of FORD MOTOR CO.
