Compressor to Condenser Discharge Line - 3.5L GTDI: Notes
WARNING: This page is about a different car, the 2012 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® PAG Refrigerant Compressor Oil YN-12-D |
WSH-M1C231-B |

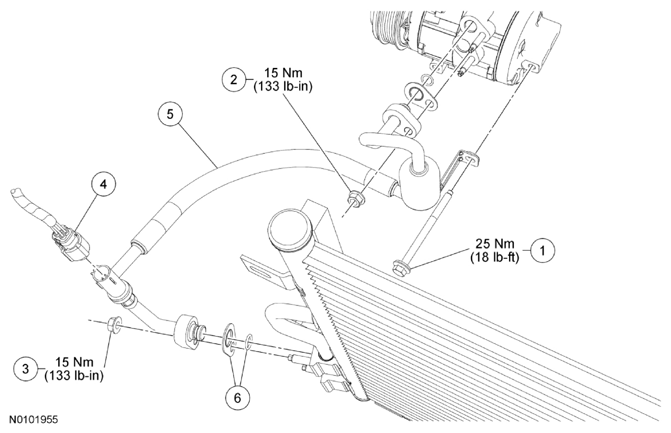

Fig 1: Compressor To Condenser Discharge Line Replacement Components -- 3.5L GTDI With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | W714077 | Rear A/C compressor bolt |
| 2 | W520413 | A/C compressor discharge fitting nut |
| 3 | W520413 | Condenser inlet fitting nut |
| 4 | - | A/C pressure transducer electrical connector (part of 14290) |
| 5 | 19972 | Compressor-to-condenser discharge line |
| 6 | 19B596 | O-ring seal and gasket seal kit (2 required) |
