Removal And Installation: Antenna: Notes

WARNING: This page is about a different car, the 2012 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

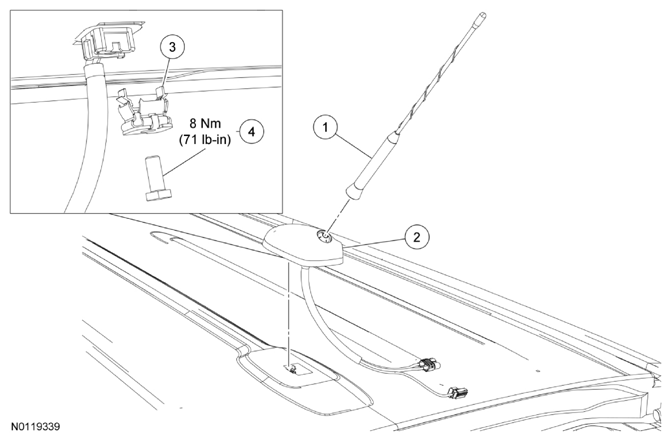

Fig 1: Antenna Mast, Antenna, Antenna Retaining Clip And Antenna Cable Bolt With Torque Specifications
G08043941Courtesy of FORD MOTOR CO.
Item Part Number Description
1 18813 Antenna mast
2 18936 Antenna
3 - Antenna retaining clip
4 - Antenna cable bolt (part of 18812)
