Variable Camshaft Timing (VCT) Oil Control Solenoid: Notes

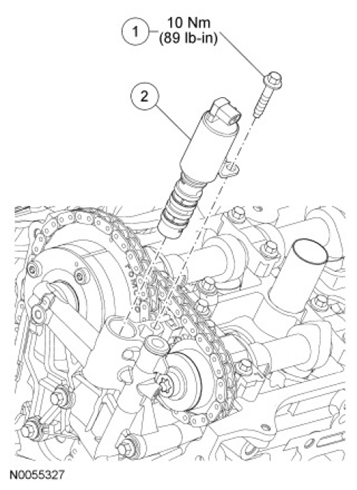

Fig 1: Exploded View Of Variable Camshaft Timing Oil Control Solenoid With Torque Specifications
G07464962Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 W500215 Variable Camshaft Timing (VCT) oil control solenoid bolt
2 6B297 VCT  oil control solenoid
