Water Pump

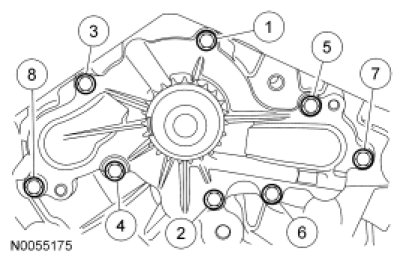

Install a new gasket, the coolant pump and the 8 bolts. Tighten in the sequence shown in 2 stages:
Stage 1: Tighten to 10 Nm (89 lb-in).
Stage 2: Tighten an additional 45 degrees.
