Dimmer Switch: Service and Repair

Instrument Panel Dimmer Switch









Removal and Installation

1. Remove the instrument cluster finish panel. For additional information, refer to Instrument Panel and Console Instrument Cluster Finish Panel.

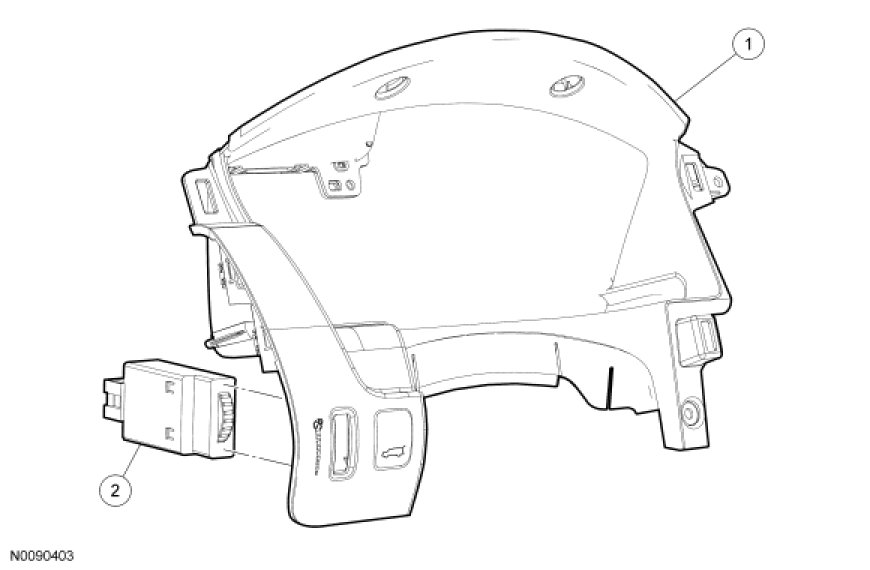

2. NOTE: The instrument panel dimmer switch is removed by releasing the tabs and pulling from behind.

Release the tabs and remove the instrument panel dimmer switch assembly.

3. To install, reverse the removal procedure.
