Refrigerator Switch




Refrigerator Switch









Removal and Installation

1. NOTICE: When prying on a component, a non-marring tool must be used or damage to the component may occur.

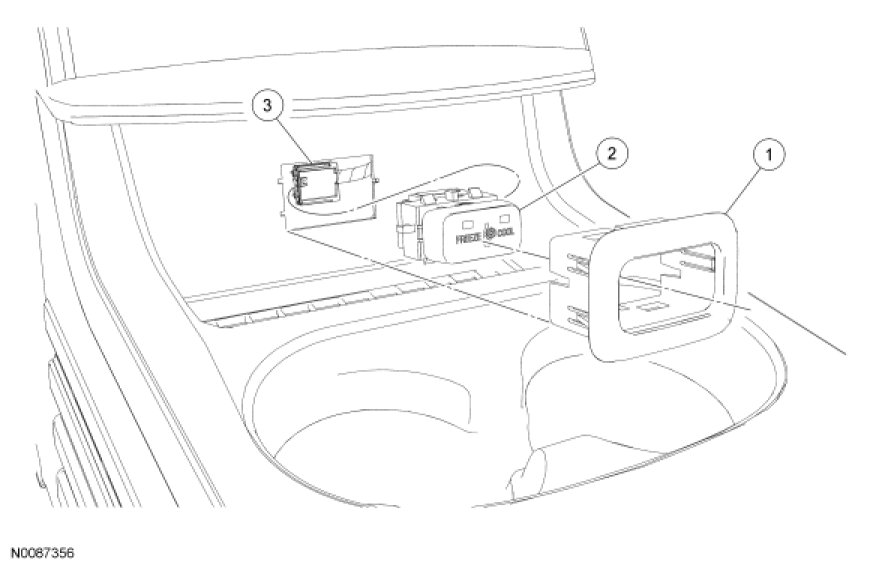

With a non-marring tool, gently pry the refrigerator switch bezel slightly outward to access the 3 retaining tabs on the refrigerator switch bezel.

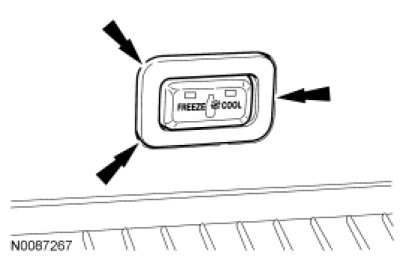

2. Using a small flat blade screwdriver, gently press the 3 refrigerator switch bezel retaining tabs inward at the locations shown, while pulling the refrigerator switch bezel outward.





3. Remove the refrigerator switch and bezel.
- Disconnect the electrical connector.

4. Separate the refrigerator switch from the refrigerator switch bezel.

5. To install, reverse the removal procedure.
