Power Trunk / Liftgate Hazard Sensor
>>
C4173 Liftgate Obstacle Detection Strip, Right
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

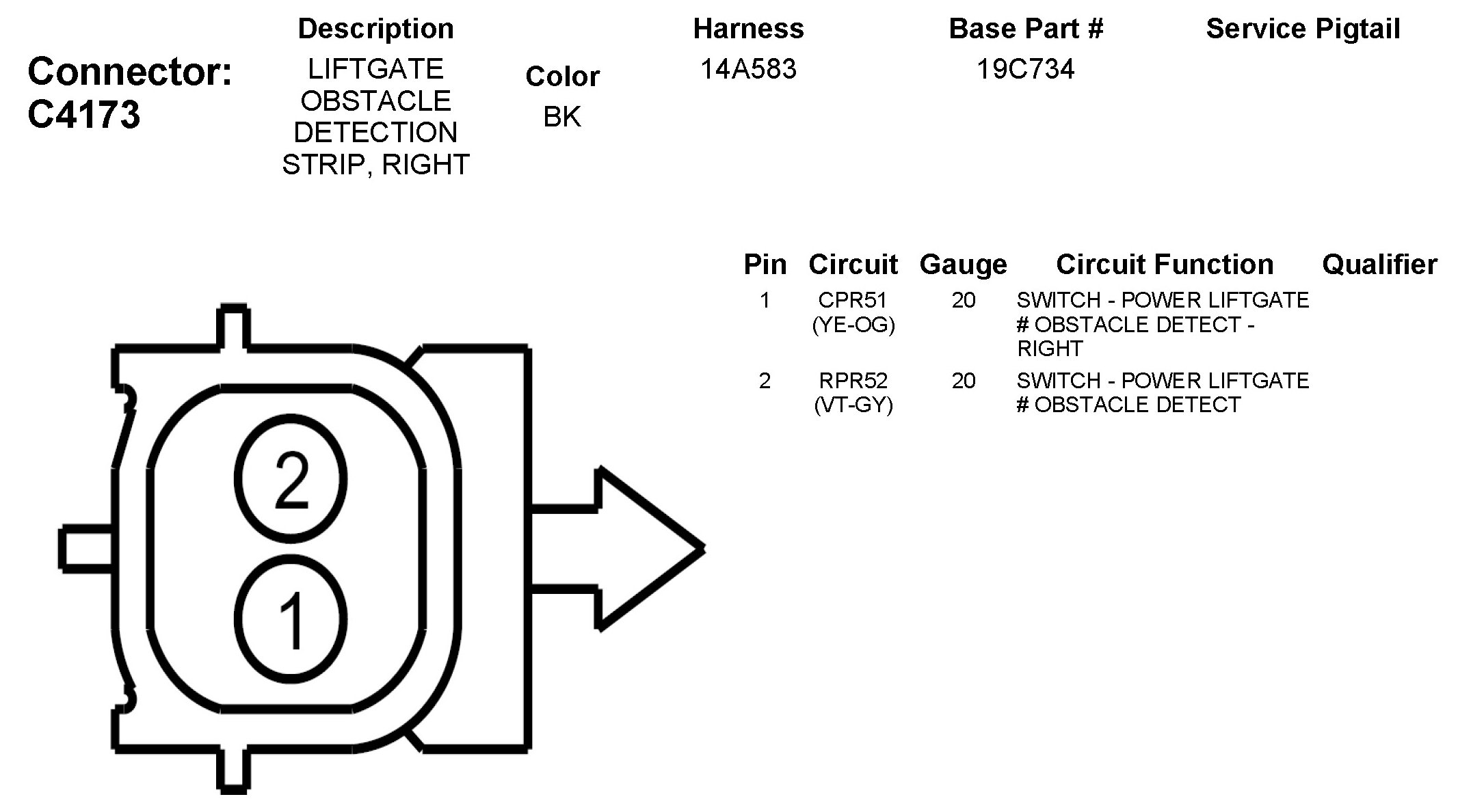

C4173 Liftgate Obstacle Detection Strip, Right
