Seat Control Switch - Third Row




Seat Control Switch - Third Row

Removal and Installation

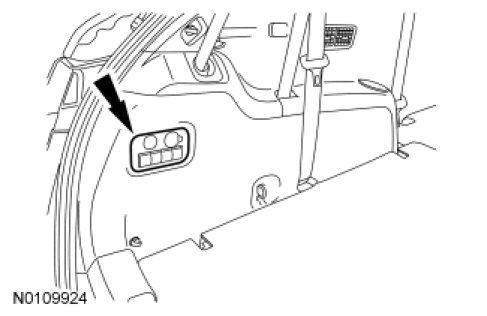

1. Pull out on the switch bezel and separate from the quarter trim panel.





2. Disconnect the electrical connector, remove the 2 screws and switch.

3. To install, reverse the removal procedure.
