Heated Seat Module - Rear

Heated Seat Module - Rear

Removal and Installation

1. Remove the front floor console. For additional information, refer to Instrument Panel and Console Floor Console.

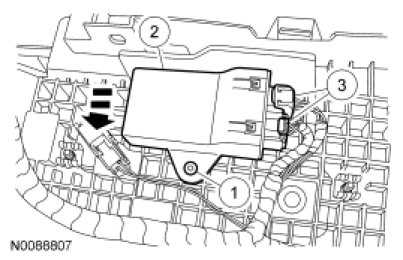

2. Remove the heated seat module.

1. Remove the screw.

2. Slide away and unhook the heated seat module.

3. Disconnect the heated seat module electrical connectors.

3. To install, reverse the removal procedure.
