Fiesta SES, Standard
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Connector End Views
>>
Connector Views
>>
HVAC Module Connector - C228B
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
HVAC Module Connector - C228B

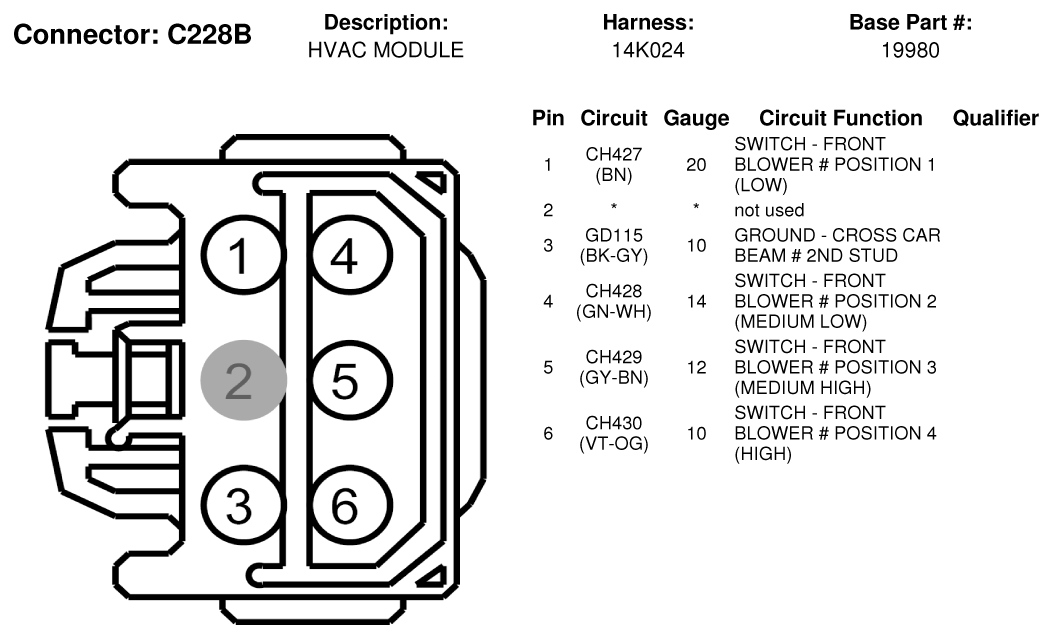

Fig 1: HVAC Module Connector End View (C228B)
Courtesy of FORD MOTOR CO.
