Fuel Pump Module Connector - C463

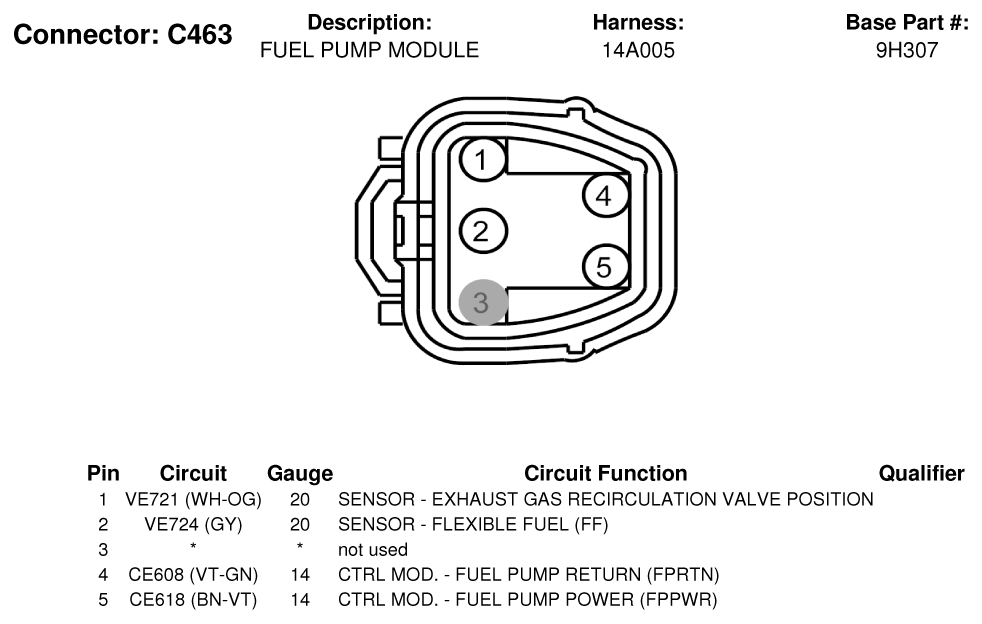

Fig 1: Fuel Pump Module Connector End View (C463)
Courtesy of FORD MOTOR CO.
