Input Shaft Speed Sensor 1 Connector - C143

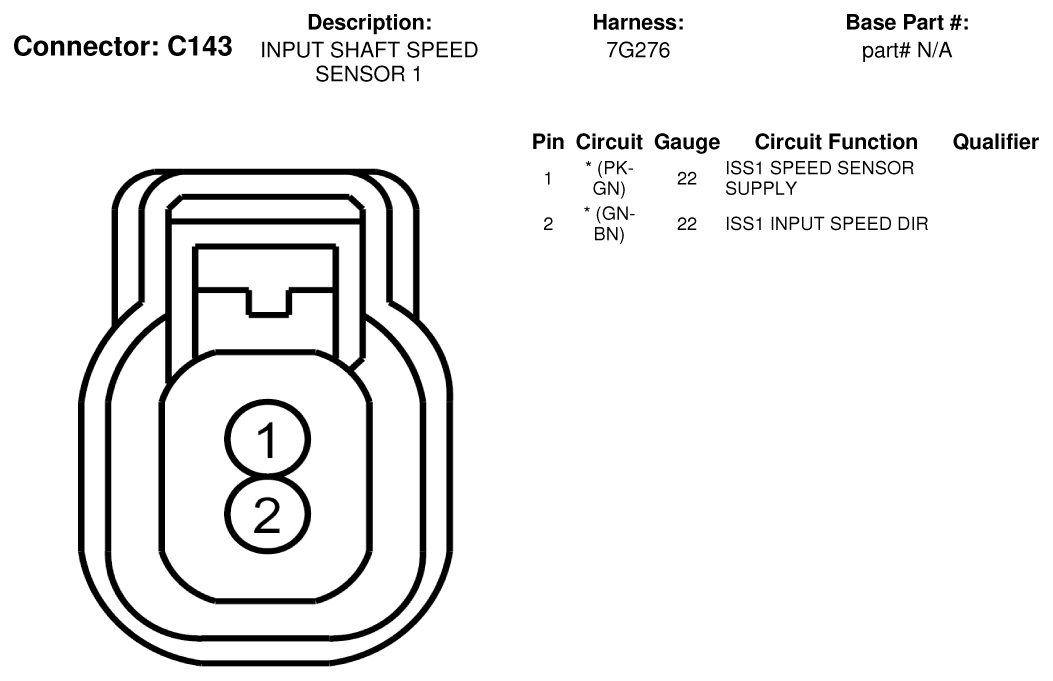

Fig 1: Input Shaft Speed Sensor 1 Connector End View (C143)
G07329023Courtesy of FORD MOTOR CO.
