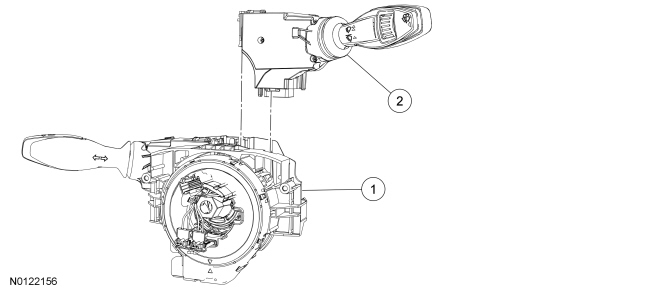

Wiper/Washer Switch




Wiper/Washer Switch









Removal and Installation

1. Remove the steering column shrouds.

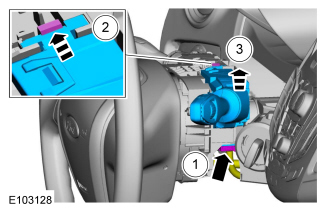

2. Remove the wiper/washer switch.

1. Disconnect the electrical connector.

2. Release the wiper/washer switch retaining tab.

3. Lift upward and remove the wiper/washer switch.





3. To install, reverse the removal procedure.
