Input Shaft: Service and Repair

Input Shaft - Inner













Disassembly

1. Remove the inner input shaft needle bearing.

2. Remove the inner input shaft needle bearing.

3. Remove the inner input shaft roller bearing.

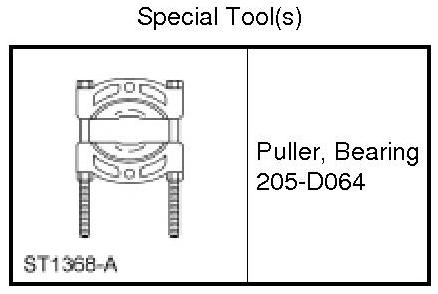

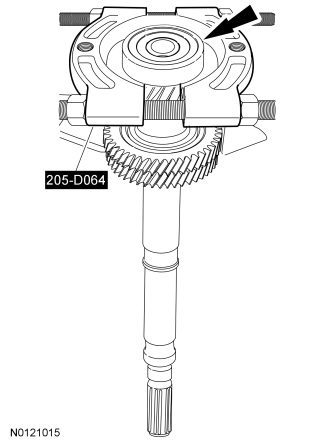

4. Using the special tools and a press, remove the inner input shaft radial bearing.





Assembly

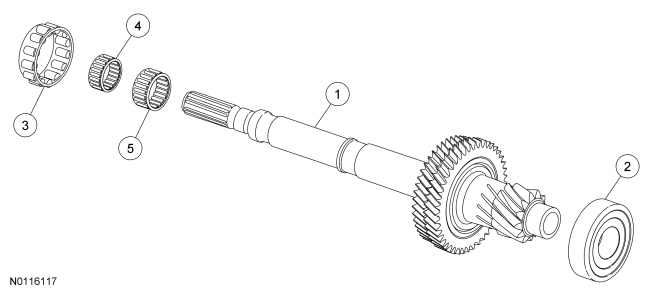

1. Inspect the inner input shaft for wear or damage, replace as needed.

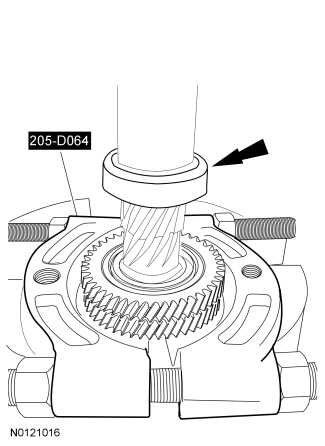

2. Using the special tools and a press, install the inner input shaft radial bearing.





3. Install the inner input shaft roller bearing.

4. Install the inner input shaft needle bearing.

5. Install the inner input shaft needle bearing.
