C1750B Transmission Control Module (TCM)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

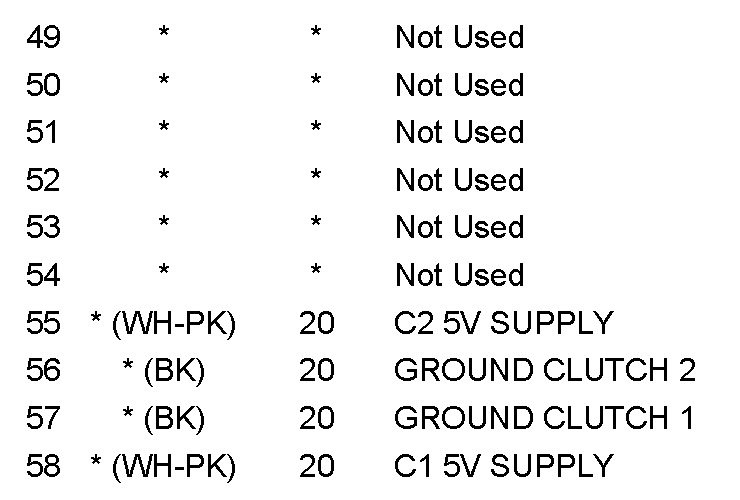

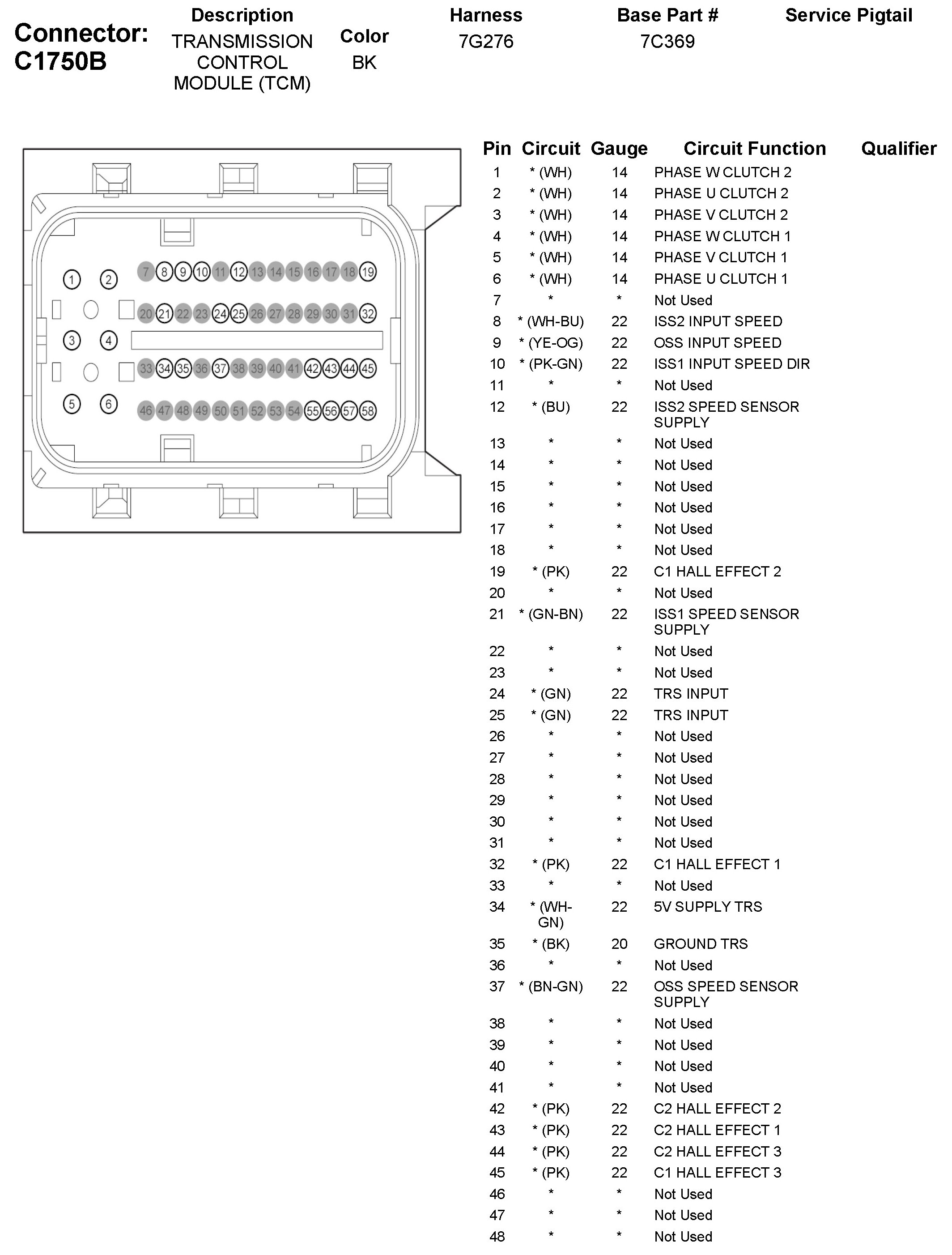

C1750B Transmission Control Module (TCM)
