Fender Splash Shield

Fender Splash Shield

Removal and Installation

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

2. Remove the wheel and tire. For additional information, refer to Wheels and Tires Removal and Replacement.

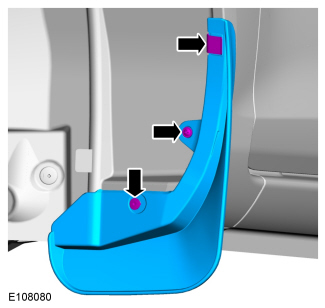

3. If equipped, remove the front mudflaps.

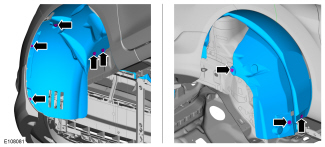

4. Remove the 8 front fender splash shield retainers and the front fender splash shield.





5. To install reverse the removal procedure.
