Test EA: Pressure and Temperature Sensor Correlation

PINPOINT TEST EA: PRESSURE AND TEMPERATURE SENSOR CORRELATION

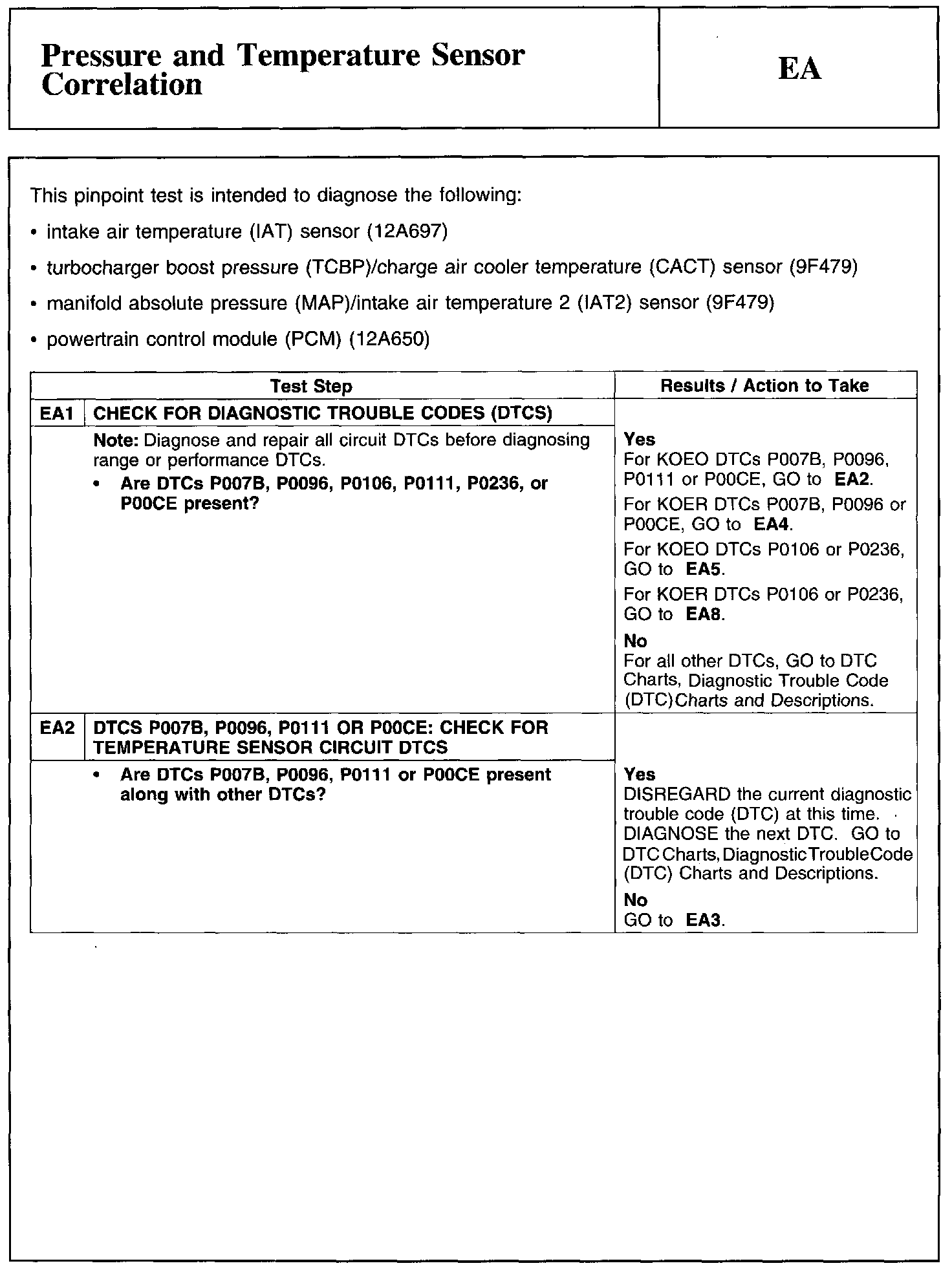

EA1-EA2:

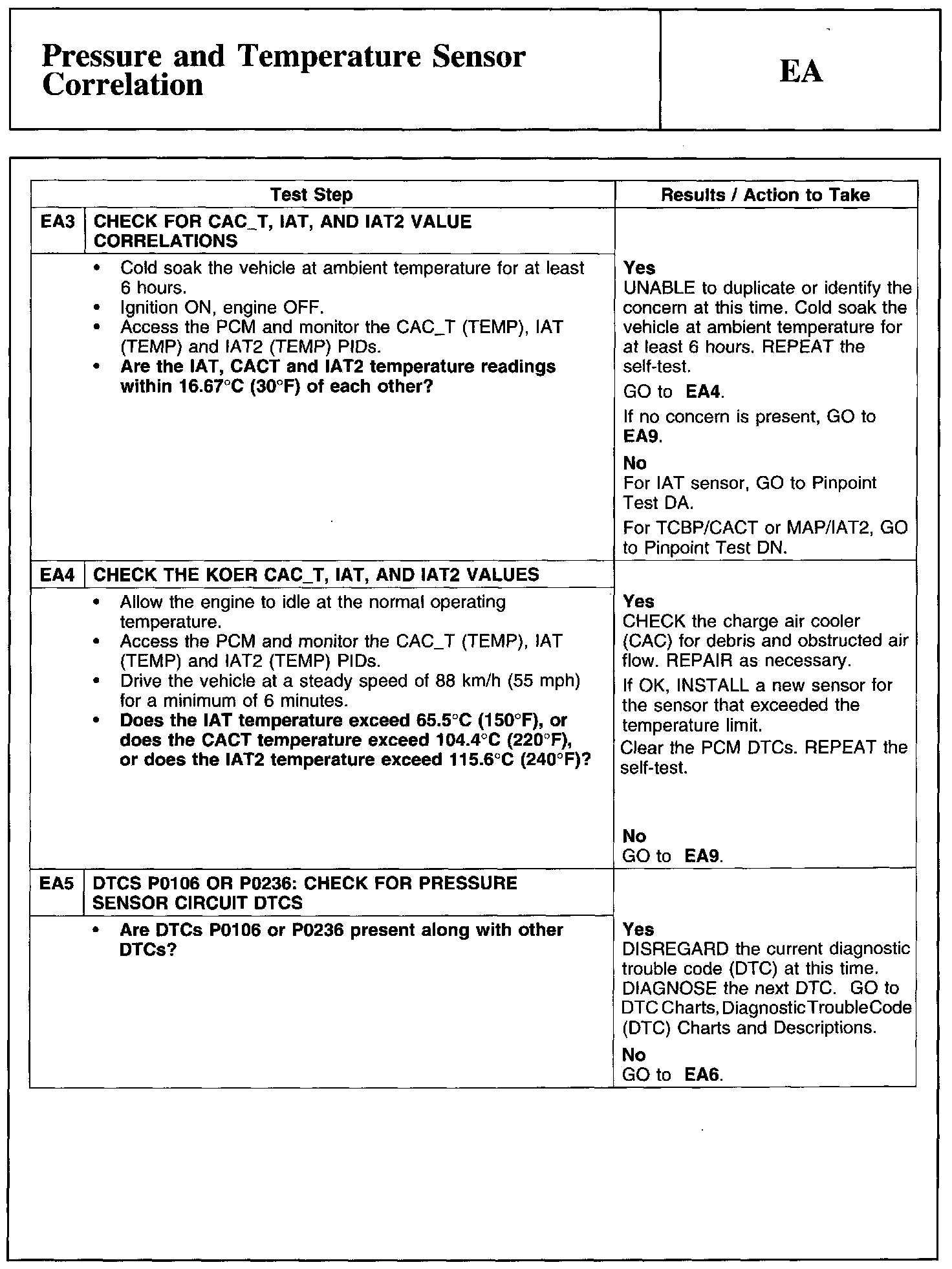

EA3-EA5:

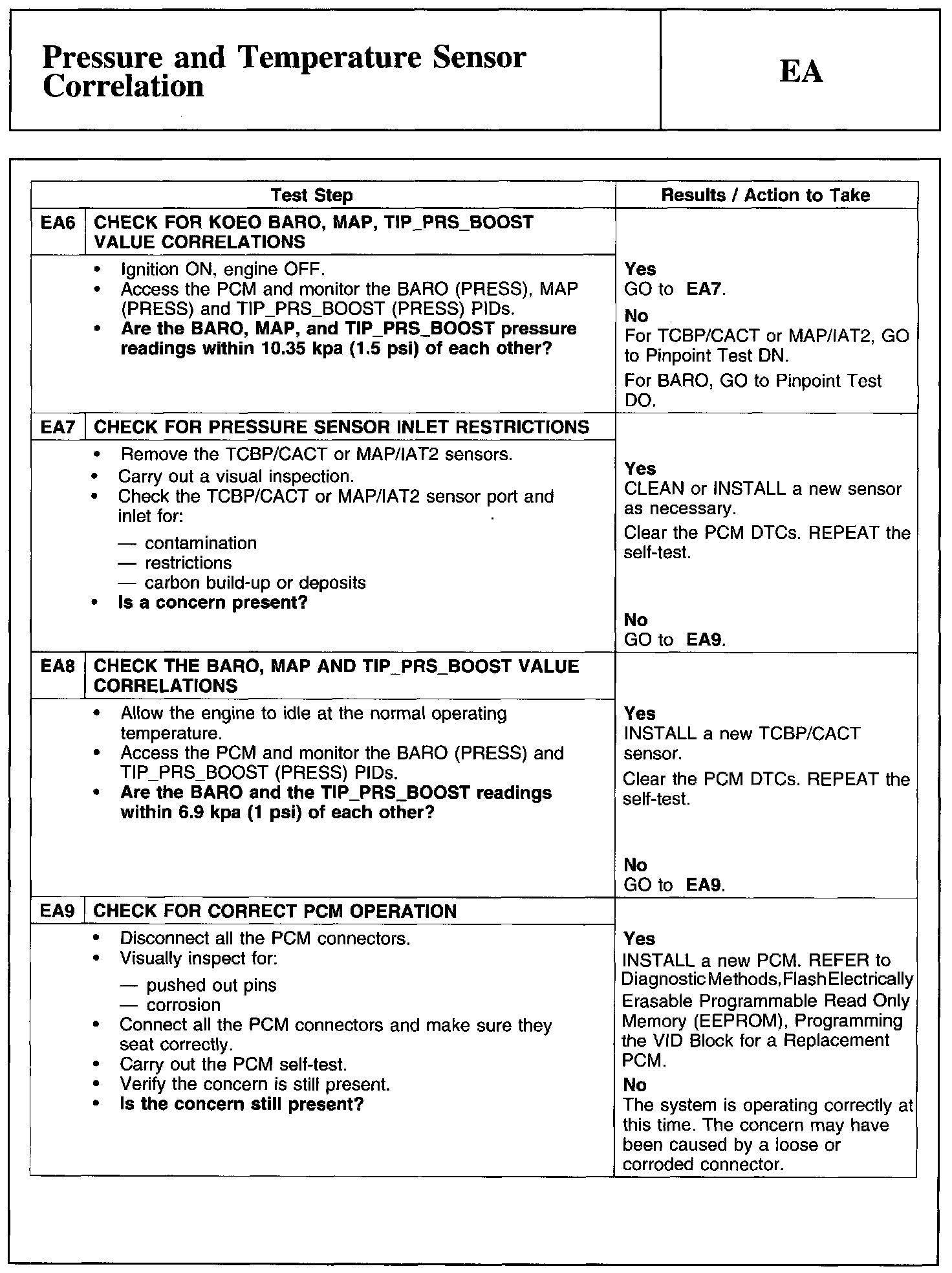

EA6-EA9:
