Diagnostic Trouble Code Tests and Associated Procedures
Auxiliary Brake System - Trailer Brake Control (TBC) Module
DTC Chart

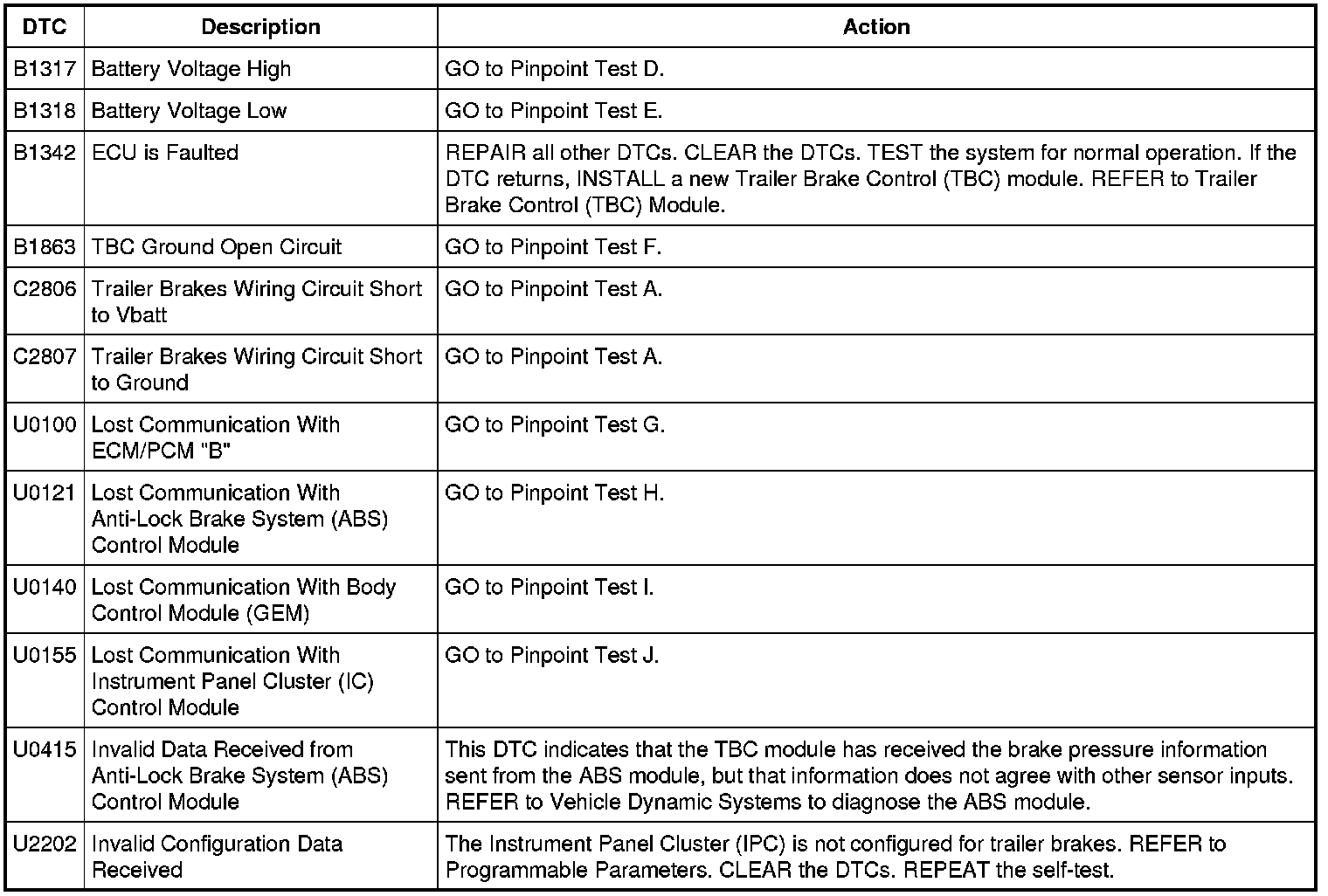

Trailer Brake Control (TBC) Module DTC Chart
