Microphone Connector - C9221

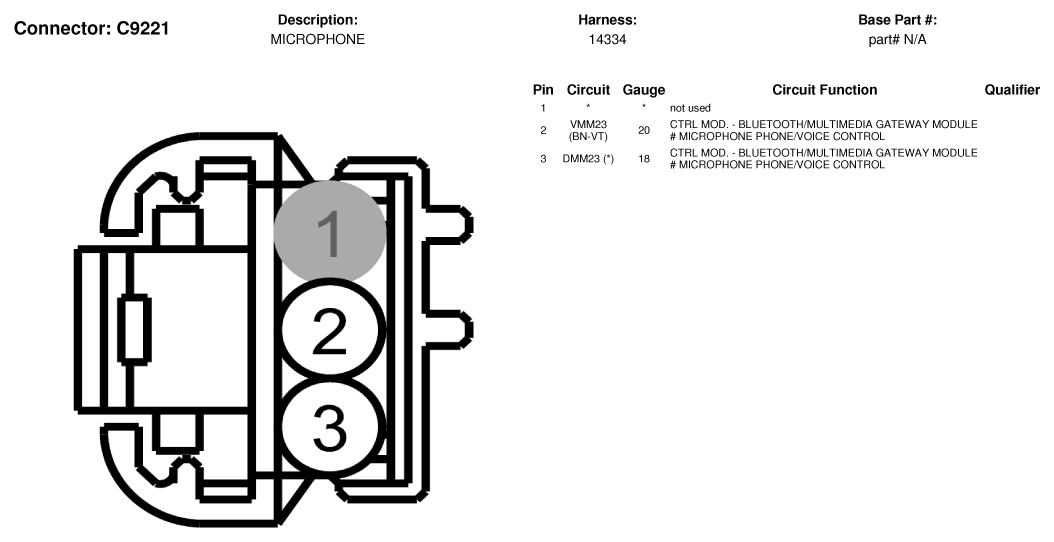

Fig 1: Microphone Connector End View (C9221)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
