Right Side Safety Canopy Module Connector - C3329
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Right Side Safety Canopy Module Connector - C3329

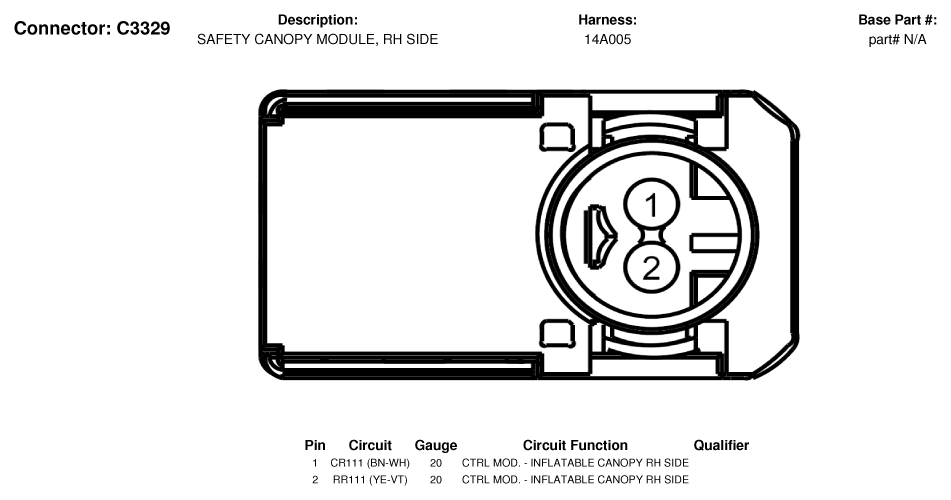

Fig 1: Right Side Safety Canopy Module Connector End View (C3329)
Courtesy of FORD MOTOR CO.
