Backup Transceiver Connector - C3371

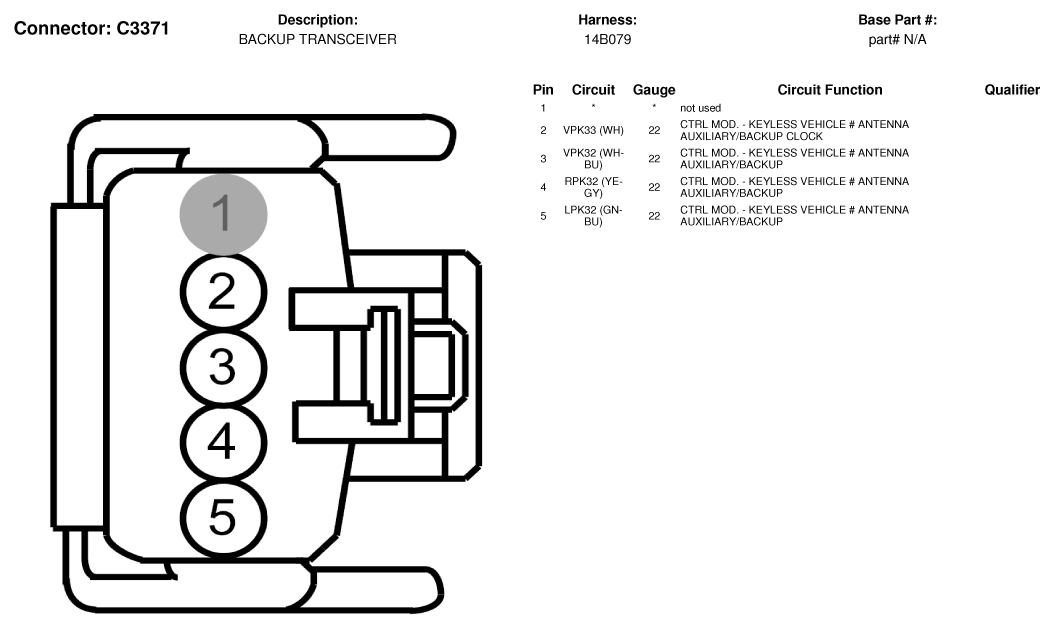

Fig 1: Backup Transceiver Connector End View (C3371)
Courtesy of FORD MOTOR CO.
