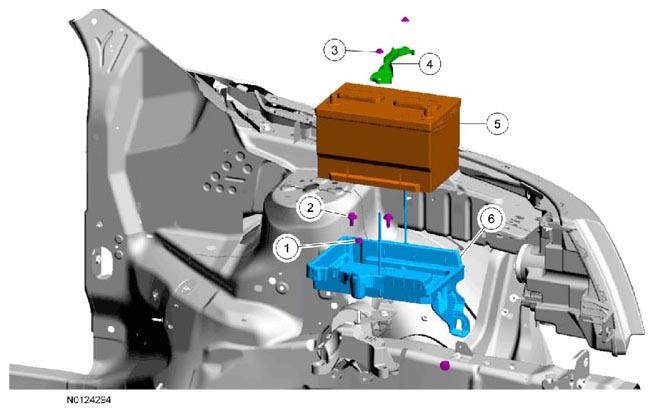

Exploded View
BATTERY AND BATTERY TRAY PARTS DESCRIPTION CHART
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W520513 | Battery tray nut | - | - | 15 Nm (133 lb-in) |
| 2 | W505433 | Battery tray bolt (3 required) | - | - | 15 Nm (133 lb-in) |
| 3 | W701694 | Battery hold-down bracket nut (2 required) | - | - | 3 Nm (27 lb-in) |
| 4 | 10756 | Battery hold-down bracket | - | - | - |
| 5 | 10655 | Battery | - | - | - |
| 6 | 10723 | Battery tray | - | - | - |
NOTE:
Remove the Air Cleaner (ACL) tray assembly and outlet pipe. REFER to INTAKE AIR SYSTEM COMPONENTS - EXPLODED VIEW
.
