Overhead Console Connectors - C930

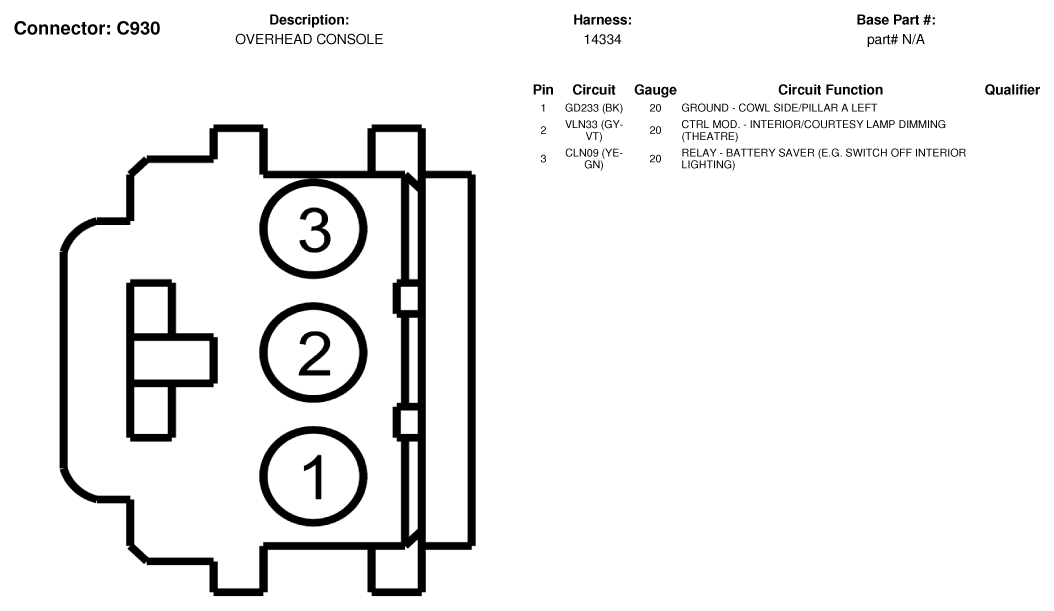

Fig 1: Overhead Console Connector End View (C930)
Courtesy of FORD MOTOR CO.
